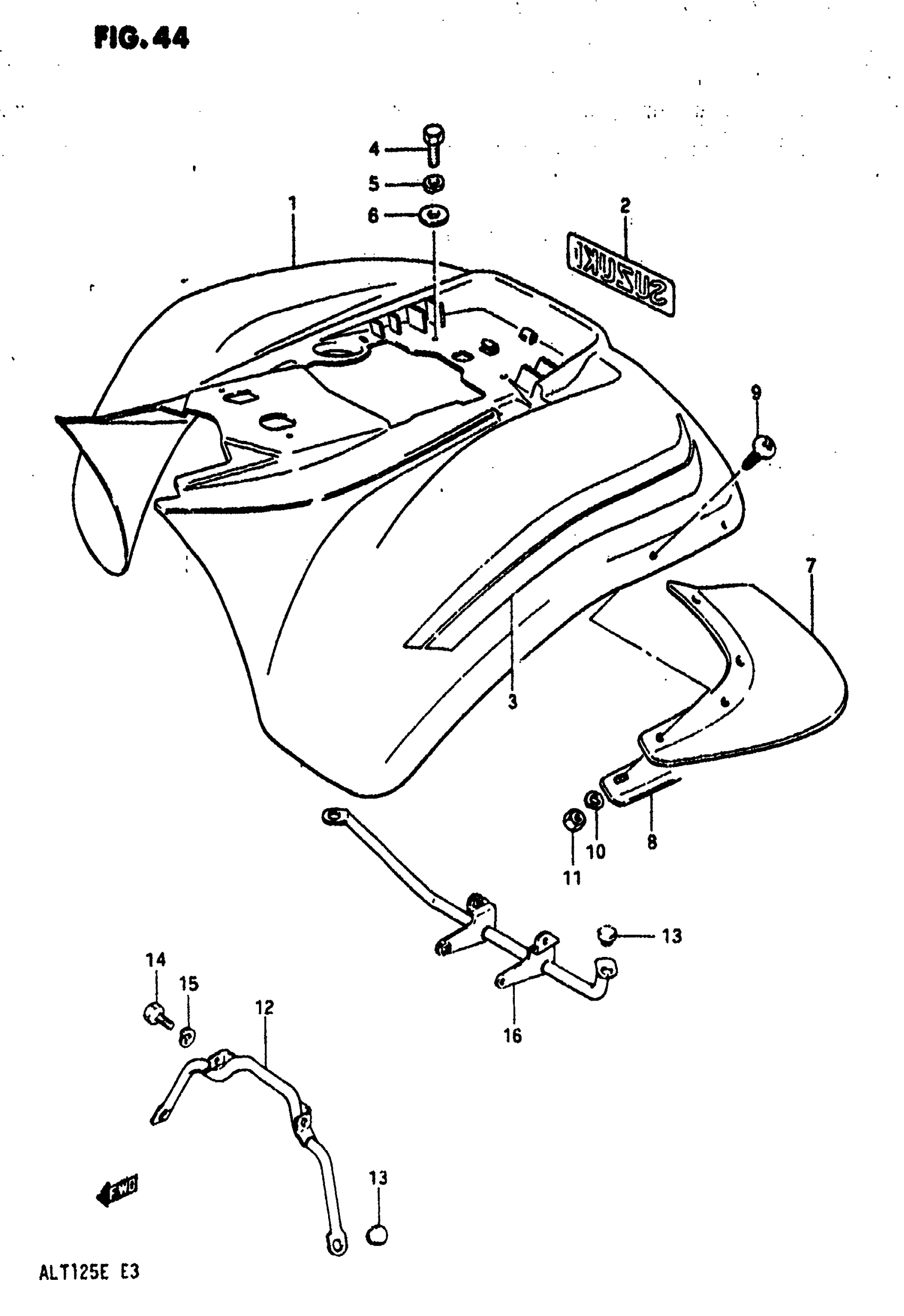

Suzuki ALT125 (1984) REAR FENDER (ORANGE) Diagram

#

Description
Price

1

FENDER, REAR (WINNING ORANGE) This part replaces 63111-24304-00N.

63111-24305-25G

Unavailable

2

EMBLEM This part replaces 68112-18901-94A.

68112-18901-7ZP

Unavailable

3

TAPE SET

68170-24310-96Z

Unavailable

4

BOLT This part replaces 01107-06128.

01500-06127

$1.97

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

WASHER This part replaces 09160-06007.

09160-06084

$1.78

7

MUD GUARD, REAR FENDER

63331-24300

Unavailable

8

PLATE, MUADGUARD

63332-24300

Unavailable

9

SCREW

02142-06167

$1.49

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

.NUT This part replaces 08310-11068.

08310-00067

$2.13

12

REINFORCEMENT, FRONT

63120-24301

Unavailable

13

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

14

BOLT This part replaces 01107-06128.

01500-06127

$1.97

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

REINFORCEMENT, REAR

63130-18901

Unavailable
