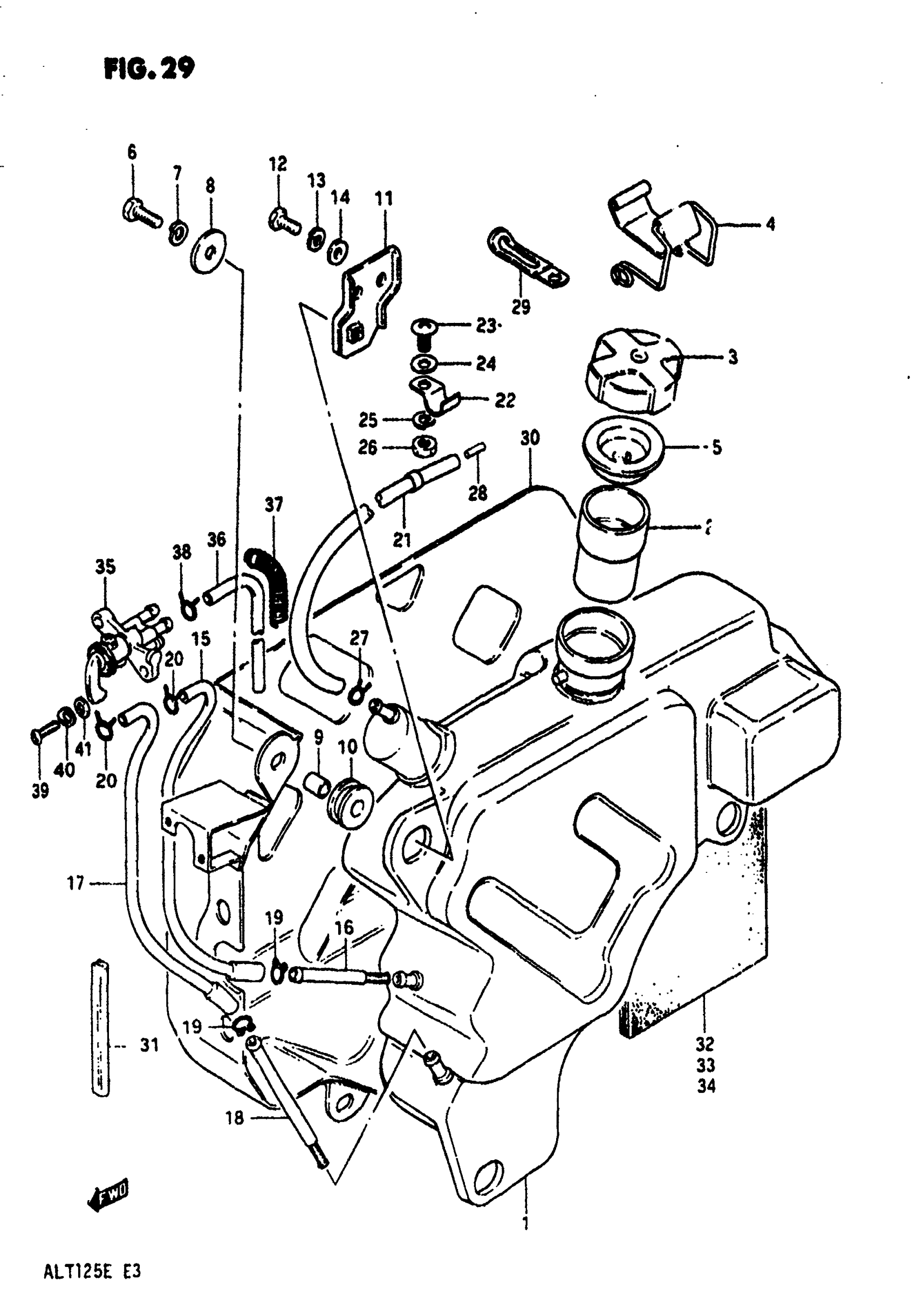

Suzuki ALT125 (1984) FUEL TANK (MODEL E) Diagram

#

Description
Price

1

TANK, FUEL

44111-24400

Unavailable

2

INLET, FUEL TANK

44117-24400

Unavailable

3

CAP, FUEL TANK

44211-24400

Unavailable

4

SPRING This part replaces 44240-24400.

44240-18B00

Unavailable

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

BOLT This part replaces 01107-06258.

01500-06257

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

$5.57

10

CUSHION

09320-12016

$2.11

11

PLATE, FUEL TANK, FRONT

44521-24400

Unavailable

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

HOSE(5X8.2X600) This part replaces 09343-05096.

09359-50824-600

$7.98

16

FILTER, FUEL, "ON"

44322-27001

$5.05

17

HOSE(5X8.2X600) This part replaces 09343-05096.

09359-50824-600

$7.98

18

FILTER, FUEL, "RES"

44323-24400

Unavailable

19

CLIP, UPPER

09401-10402

$2.42

20

CLIP, LOWER

09401-08402

$1.49

21

HOSE, BREATHER

09343-05270

Unavailable

22

CLAMP

09403-09306

Unavailable

23

SCREW This part replaces 02142-06168.

02142-06167

$1.49

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

.NUT This part replaces 08310-11068.

08310-00067

$2.13

27

CLIP

09401-08402

$1.49

28

PIN

09205-06007

$2.24

29

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

30

GUARD, FUEL TANK This part replaces 44570-24400.

44570-24401

Unavailable

31

MOLD, FUEL TANK GUARD

44579-24400

Unavailable

32

CUSHION, NO.1

44575-24300

Unavailable

33

CUSHION, NO.2

44576-24300

Unavailable

34

CUSHION, NO.3

44577-24300

Unavailable

35

COCK ASSY,FUEL This part replaces 44300-24470.

44300-17271

Unavailable

36

HOSE This part replaces 09343-05271.

09352-50005-00B

$13.93

37

SPRING

09440-10012

Unavailable

38

CLIP

09401-08402

$1.49

39

SCREW This part replaces 02112-05208.

02112-05207

$1.97

40

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

41

WASHER This part replaces 08322-21058.

08322-01057

$2.13
