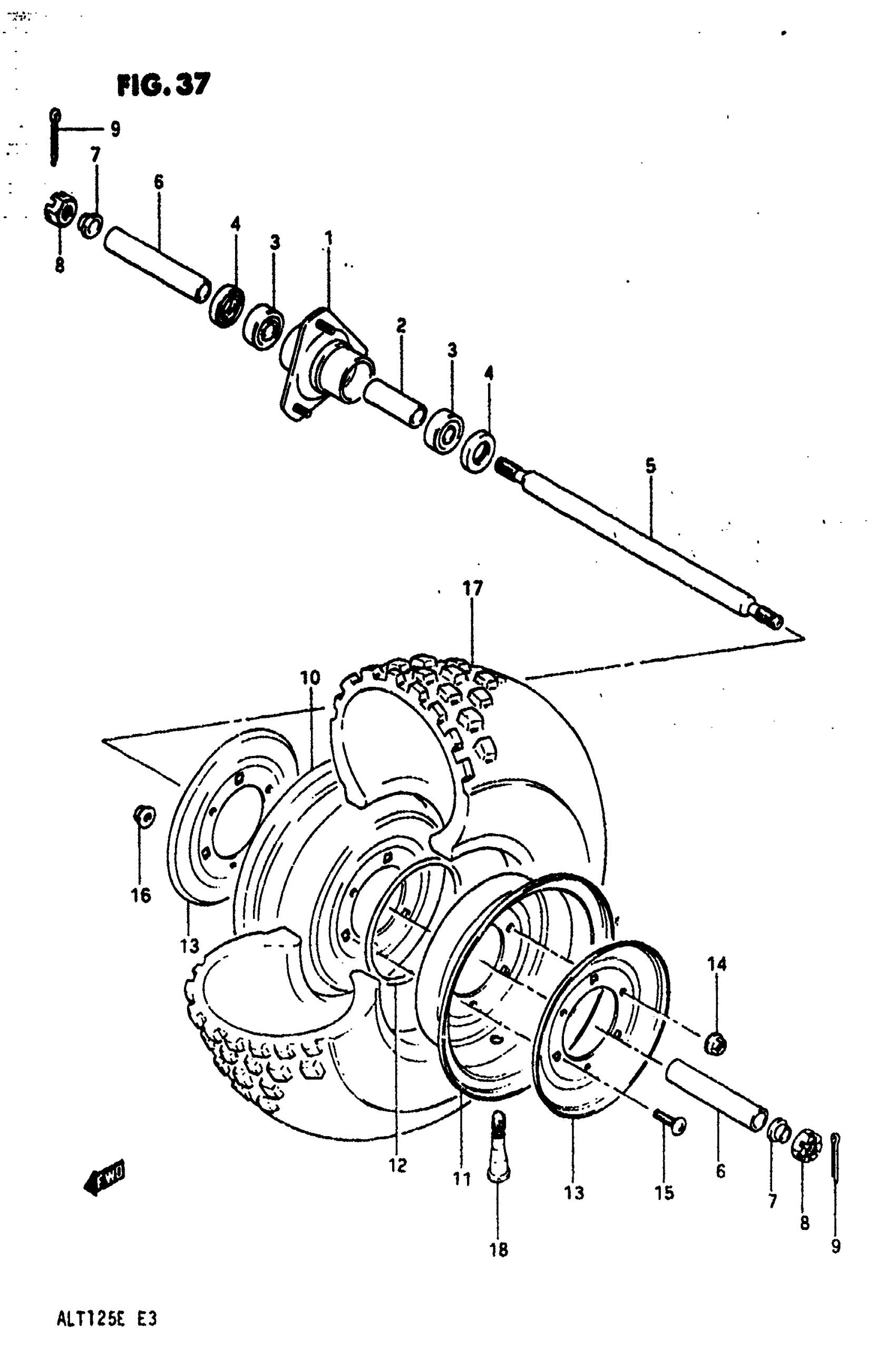

Suzuki ALT125 (1984) FRONT WHEEL (MODEL E) Diagram

#

Description
Price

1

FRONT HUB

54110-24330

Unavailable

2

SPACER, FRONT HUB

54731-24300

Unavailable

3

BEARING, FRONT HUB

08120-62037

$21.05

4

DUST SEAL, FRONT HUB

09284-22002

$13.87

5

AXLE, FRONT

54711-24201

Unavailable

6

SPACER, FRONT AXLE

54741-24300

Unavailable

7

SPACER, FRONT AXLE NUT

54771-24200

Unavailable

8

NUT This part replaces 08314-31126.

08314-3112A

$2.41

9

PIN This part replaces 04111-30308.

04111-3030A

$1.49

10

NO DESCRIPTION AVAILABLE This part replaces 65312-24300-13T.

65312-24301-13T

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 65313-24300-13T.

65313-24301-13T

Unavailable

12

GASKET, WHEEL RIM

55315-24200

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 65317-24300-13T.

65317-24301-13T

Unavailable

14

NUT This part replaces 08316-16106.

08316-1010B

$2.66

15

BOLT, WHEEL RIM

09107-08006

Unavailable

16

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

17

TIRE, FRONT (22x1.100-8) | DUNLOP

55100-24255

Unavailable

18

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
