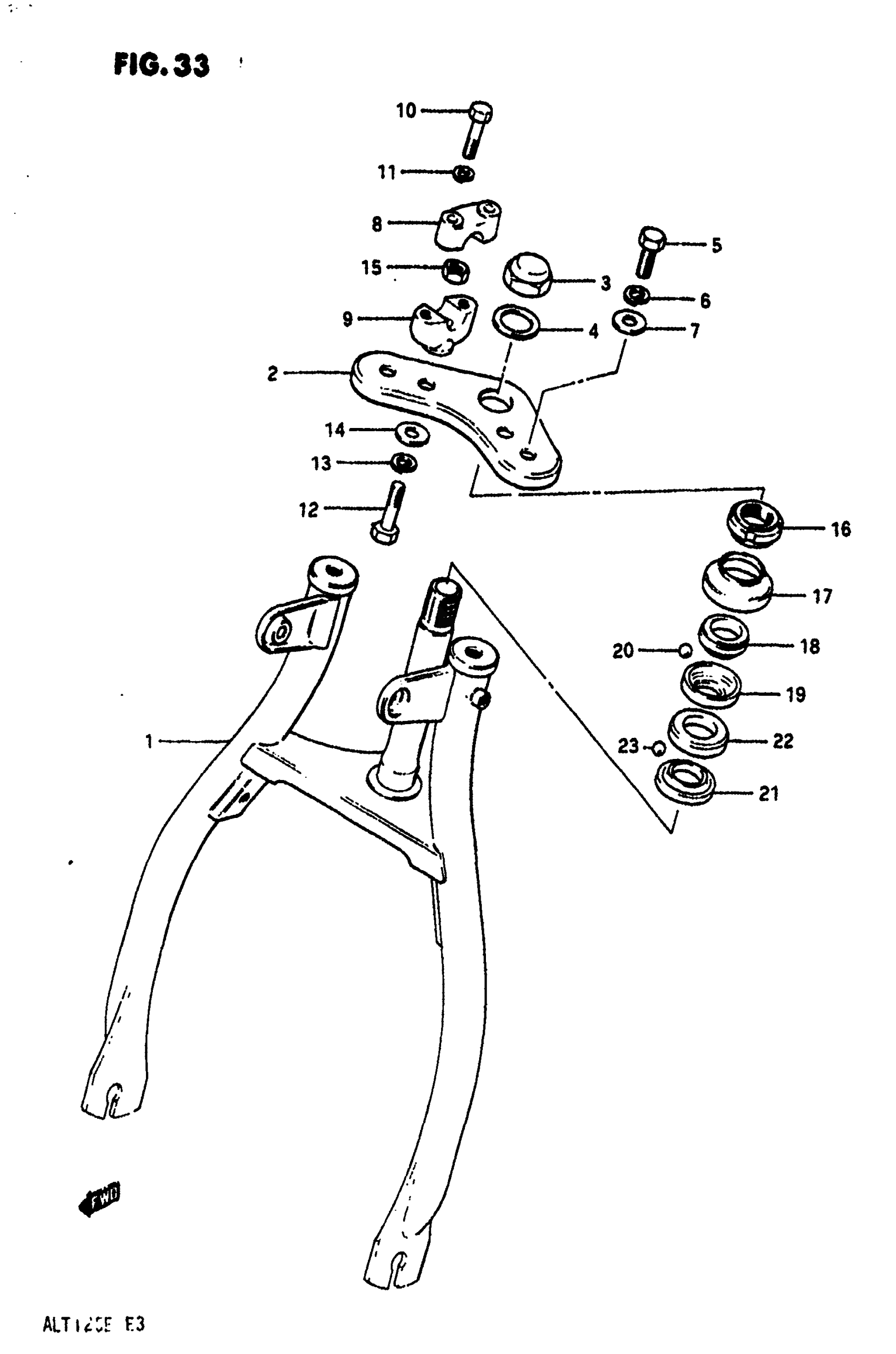

Suzuki ALT125 (1984) FRONT FORK Diagram

#

Description
Price

1

FORK, FRONT

51210-24300-291

Unavailable

2

STEM HEAD, STEERING

51310-24300

Unavailable

3

NUT

51360-24300

Unavailable

4

WASHER

51356-24300

Unavailable

5

BOLT This part replaces 01107-10208.

01500-1020B

$3.16

6

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

7

WASHER This part replaces 08322-11108.

08322-01107

$2.15

8

HOLDER, HANDLE, UPPER

56211-27200-291

$17.90

9

HOLDER, HANDLE LOWER (BLACK) This part replaces 56221-33600-291.

56221-42A00-291

$45.38

10

BOLT

01204-08357

$2.09

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

NUT This part replaces 08310-11108.

08310-00107

$2.19

16

NUT, STEERING STEM

51631-28000

$17.37

17

DUST SEAL,STEERING UPPER

51643-25001

$4.43

18

RACE,STEERING OUTER UPPER

51621-28000

$11.95

19

RACE,STEERING INNER UPPER

51611-20002

$11.95

20

STEEL BALL

06111-06003

$1.49

21

RACE, OUTER, LOWER

51621-33001

$16.25

22

RACE, INNER, LOWER

51611-33002

$13.81

23

STEEL BALL

06111-08003

$1.49
