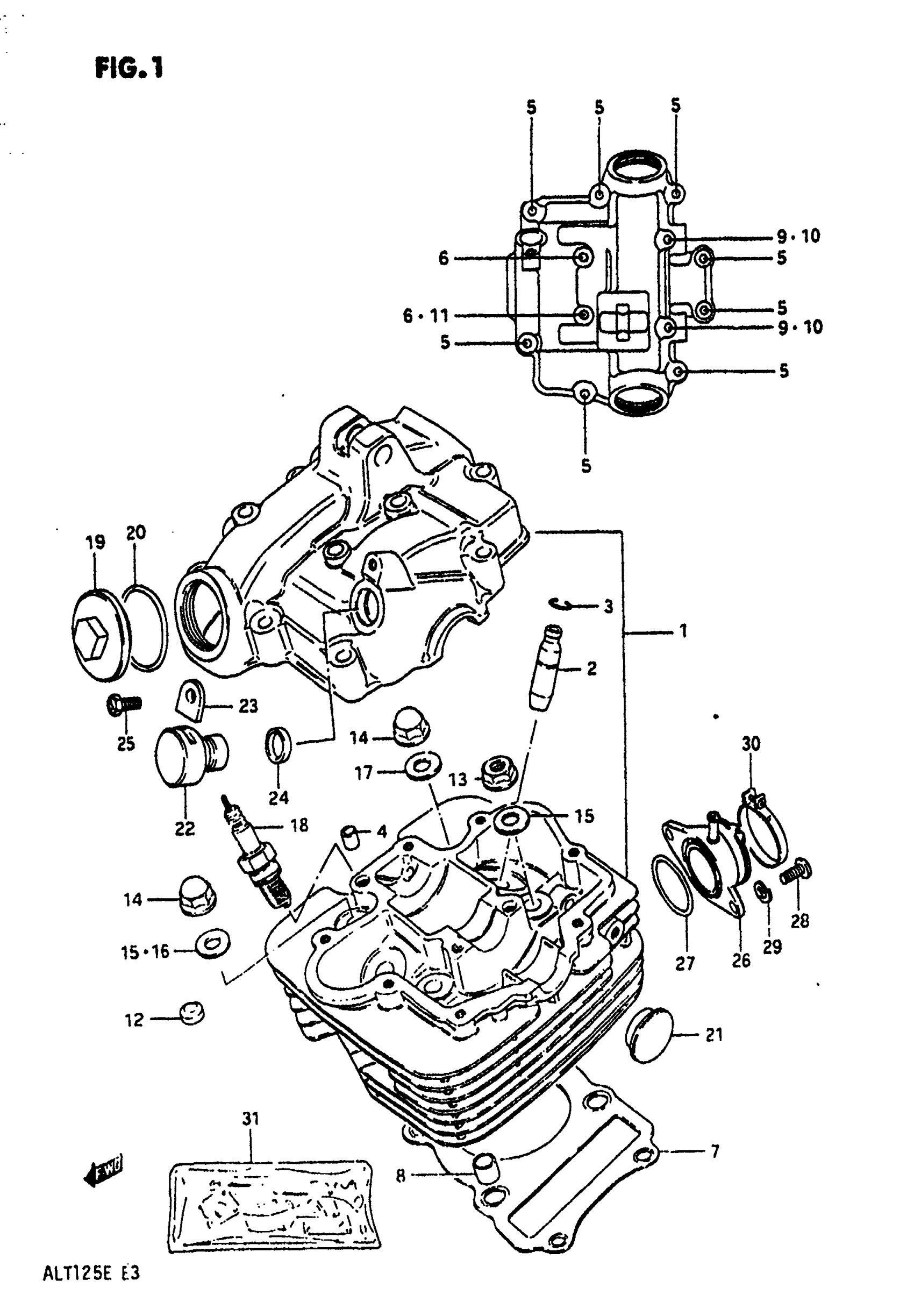

Suzuki ALT125 (1984) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 11100-05210.

11100-05223

Unavailable

1

HEAD ASSY, CYLINDER | MODEL E; Includes Item(s) 2 - 6 This part replaces 11100-05261.

11100-05263

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$31.58

3

.RING (10X85)

09381-10004

$1.41

4

PIN

09206-08001

$1.82

5

BOLT | MODEL D This part replaces 01517-06355.

01550-0635A

$2.38

5

BOLT | MODEL E This part replaces 01517-06358.

01550-06357

$2.80

6

BOLT | MODEL D This part replaces 01517-06605.

01550-0660A

$2.90

6

BOLT | MODEL E This part replaces 01517-06608.

01550-06607

$4.53

7

GASKET, CYLINDER HEAD This part replaces 11141-05201.

11141-05202

$11.96

8

PIN

04211-11169

$1.82

9

STUD BOLT | MODEL D This part replaces 01421-06255.

01421-0625A

$2.07

9

STUD BOLT (L:25) | MODEL E This part replaces 01421-06258.

01421-06257

$2.80

10

NUT | MODEL D This part replaces 08316-16065.

08316-1006B

$2.57

10

NUT | MODEL E This part replaces 08316-16068.

08319-31067

$2.09

11

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.09

12

PAD, RUBBER

11151-45000

$3.79

13

NUT This part replaces 09159-08031.

09159-08034

$1.66

14

NUT

09159-08029

$5.51

15

WASHER | MODEL DMODEL E

09160-08039

$1.95

16

WASHER (8.5X19X2.3) | MODEL D This part replaces 09160-08053.

09160-08039

$1.95

17

GASKET This part replaces 09168-08012.

09168-08013

$2.80

18

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$2.80

18

SPARK PLUG (DENSO,X22ESR-U) This part replaces 09482-00183.

09482-00222

$5.08

19

CAP, INSPECTION | ODEL D This part replaces 11175-32400.

11175-42A00

$11.28

19

CAP INSPECTION | MODEL E This part replaces 11175-37111.

11175-18920

$11.67

20

.O RING (D:3,ID:29.5)

09280-30001

$1.70

21

PLUG, HEAD

09241-22002

$4.86

22

PLUG

26442-45000

$22.25

23

PLATE

26449-33000

$4.92

24

SEAL BAND

26451-45000

$4.84

25

SCREW

09128-05101

$1.41

26

PIPE, INTAKE

13110-18900

$38.67

27

O RING

09280-32006

$2.06

28

SCREW This part replaces 02112-06168.

02112-06167

$1.46

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

30

CLAMP This part replaces 09402-42306.

09402-42303

$4.52

31

GASKET SET | OPT This part replaces 11400-18850.

11400-18854

Unavailable
