1984 Suzuki ALT125 Crankshaft Diagram

← All diagrams

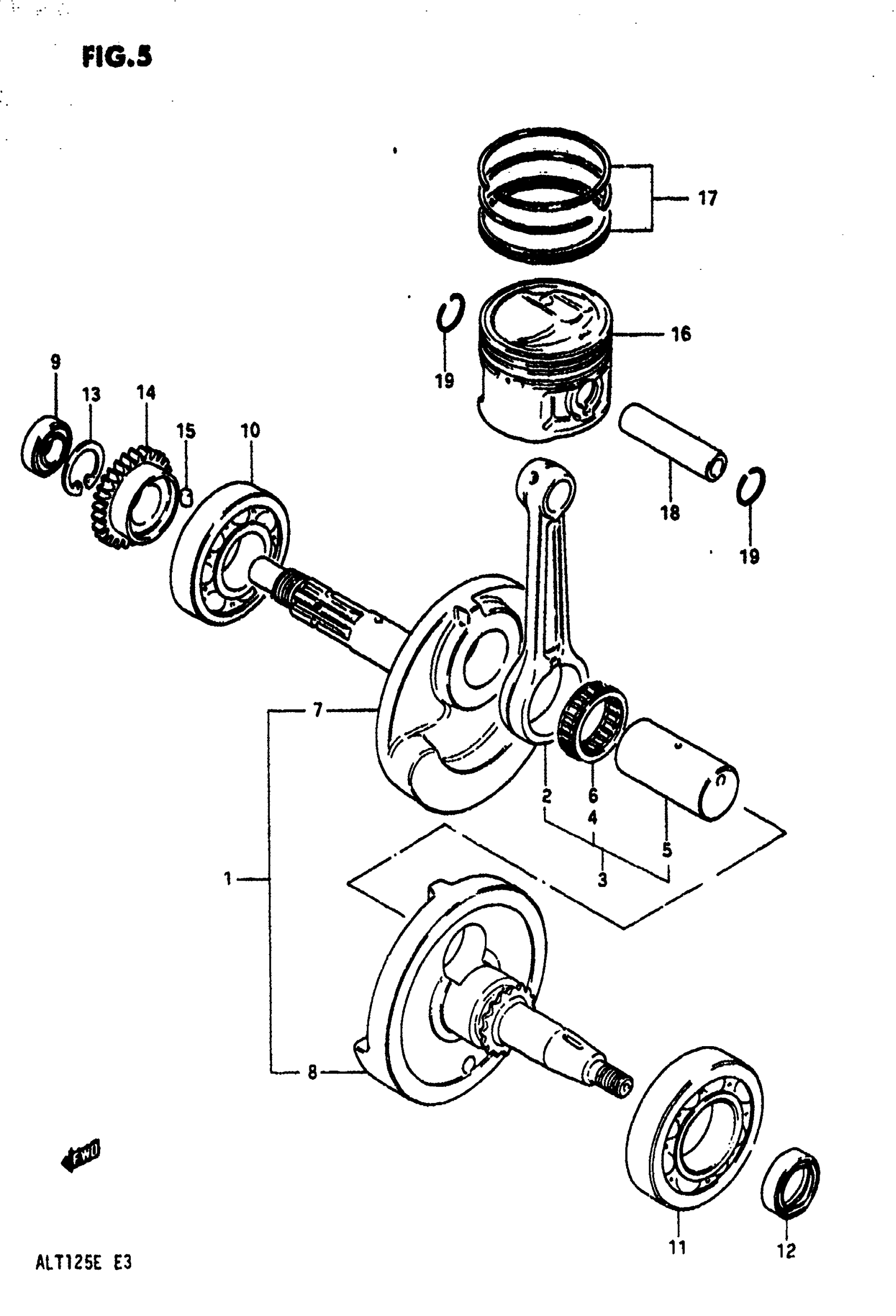

Find the part on the Crankshaft diagram for your 1984 Suzuki ALT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Suzuki ALT125 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | ~E.NO.121040 This part replaces 12200-18901.

12200-18905

1
Out of stock

1

CRANKSHAFT ASSY | E.NO.121041~141106 This part replaces 12200-18902.

12200-18905

1
Out of stock

1

CRANKSHAFT ASSY | E.NO.141107~; Includes Item(s) 2 - 8 This part replaces 12200-18903.

12200-18905

1
Out of stock

2

ROD SET, CONNECTING | ~E.NO.121040 This part replaces 12161-05200.

12105-05821

1
Out of stock

2

ROD SET, CONNECTING | E.NO.121041~141106 This part replaces 12161-05220.

12105-05821

1
Out of stock

3

ROD SET, CONNECTING | E.NO.141107~ This part replaces 12200-05850.

12105-05821

1
Out of stock

4

BEARING (28X36X15.8) | E.NO.141107~ This part replaces 09263-28017-020.

09263-28027-0B0

1
Out of stock

5

PIN | ~E.NO.121040 This part replaces 12211-05201.

12211-05220

1
Out of stock

5

PIN | E.NO.121041~141106

12211-05220

1
Out of stock

6

BEARING (28X36X15.8) | ~E.NO.141106 This part replaces 09263-28015.

09263-28027-0B0

1
Out of stock

7

CRANKSHAFT, RH This part replaces 12221-18902.

12221-18903

1
Out of stock

8

CRANKSHAFT, LH This part replaces 12261-18900.

12261-18901

1
Out of stock

9

BEARING, RH

09262-12004

1
Out of stock

10

BEARING (28X68X18) This part replaces 09262-28003.

09262-28014

1
Out of stock

11

BEARING (35X72X17) This part replaces 09262-35010.

09262-35038

1
Out of stock

12

OIL SEAL, LH

09283-20037

1

$8.90

In stock

13

CIRCLIP This part replaces 08331-21289.

08331-41289

1
Out of stock

14

GEAR, OIL PUMP DRIVE (NT:30) This part replaces 16321-18901.

16321-18902

1
Out of stock

15

PIN This part replaces 06211-03052.

04221-03059

1
Out of stock

16

PISTON | STD

12111-01420

1
Out of stock

16

PISTON SET,OS 0 | OPT This part replaces 12111-01420-050.

12103-01870-050

1
Out of stock

16

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-01420-100.

12103-01870-100

1
Out of stock

17

RING SET, PISTON | STD This part replaces 12140-05211.

12140-01410

1
Out of stock

17

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-05211-050.

12140-01410-050

1
Out of stock

17

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-05211-100.

12140-01410-100

1
Out of stock

18

PIN | ~E.NO.121040

12151-05200

1
Out of stock

18

PIN, PISTON | E.NO.121041~ This part replaces 12151-05220.

12151-05220-0A0

1
Out of stock

18

PIN | MODEL E

12151-18902

1
Out of stock

19

RING

09381-14001

2
Out of stock
