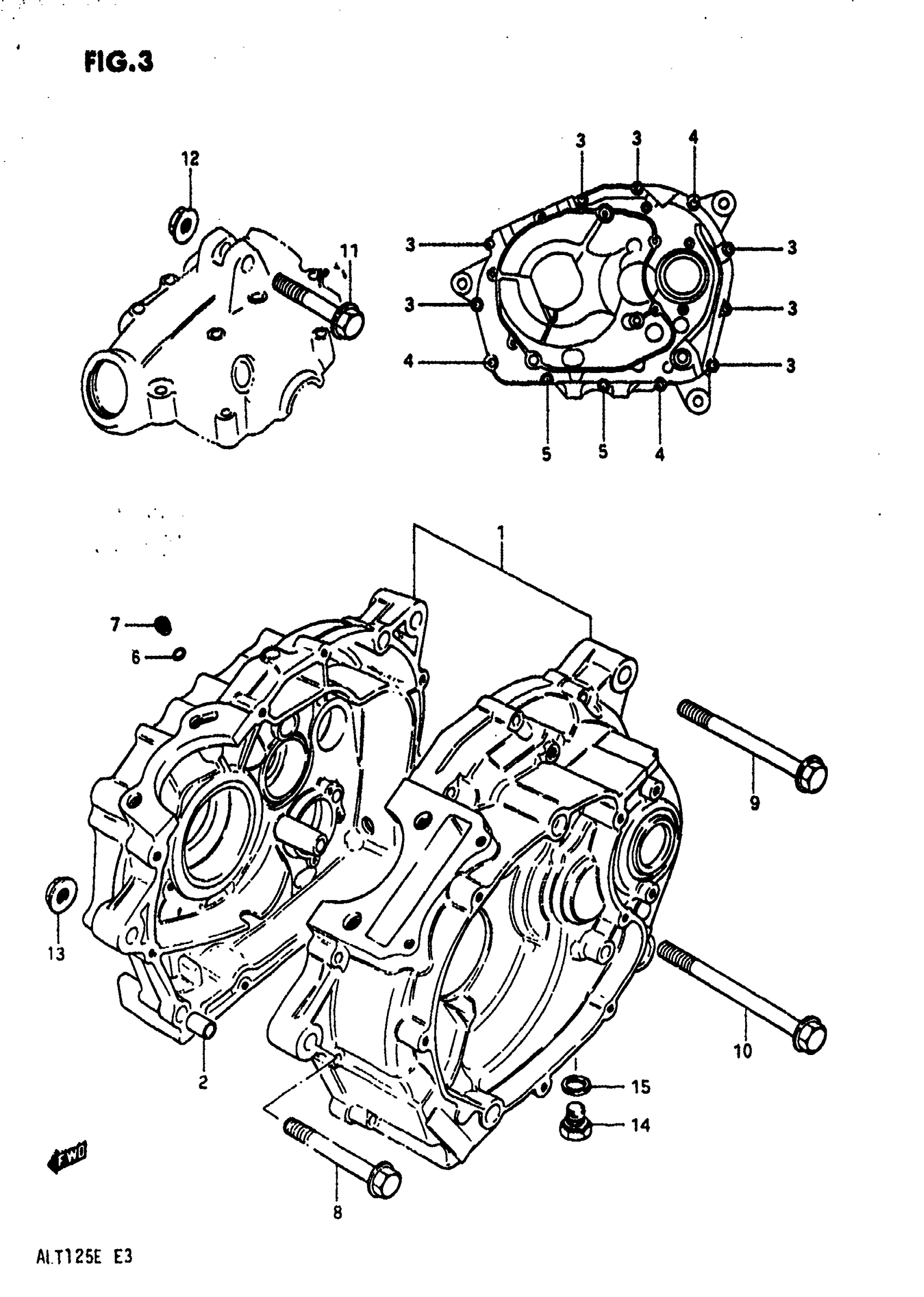

Suzuki ALT125 (1984) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 11300-18890.

11300-18893

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL E; Includes Item(s) 2 - 7 This part replaces 11301-18830.

11301-18831

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW | MODEL D This part replaces 02112-06405.

02112-0640A

$1.96

3

BOLT | MODEL E This part replaces 01547-06408.

01547-06407

$2.32

4

SCREW | MODEL D This part replaces 02112-06555.

02112-0655B

$2.53

4

BOLT | MODEL E This part replaces 01547-06558.

01547-06557

$2.32

5

SCREW | MODEL D This part replaces 02112-06855.

02112-0685B

Unavailable

5

BOLT | MODEL E This part replaces 01547-06858.

01547-06857

$3.30

6

O RING, OIL GALLERY JET | MODEL D This part replaces 09280-04002.

09280-04004

$1.91

6

O RING, OIL GALLERY JET | MODEL E

09280-04004

$1.91

7

JET, OIL GALLERY DRIVE | ~E.NO.141131

09493-80005

$16.25

7

JET, OIL GALLERY DRIVE | E.NO.141132~

09493-24009

Unavailable

8

BOLT (10X70)

09103-10051

Unavailable

9

BOLT (10X90)

09103-10061

$6.43

10

BOLT (10X120)

09103-10052

Unavailable

11

BOLT This part replaces 01517-08504.

01550-0850B

$4.17

12

NUT This part replaces 08319-31085.

08319-3108A

$2.32

13

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55

14

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

15

GASKET

09168-14004

$1.83
