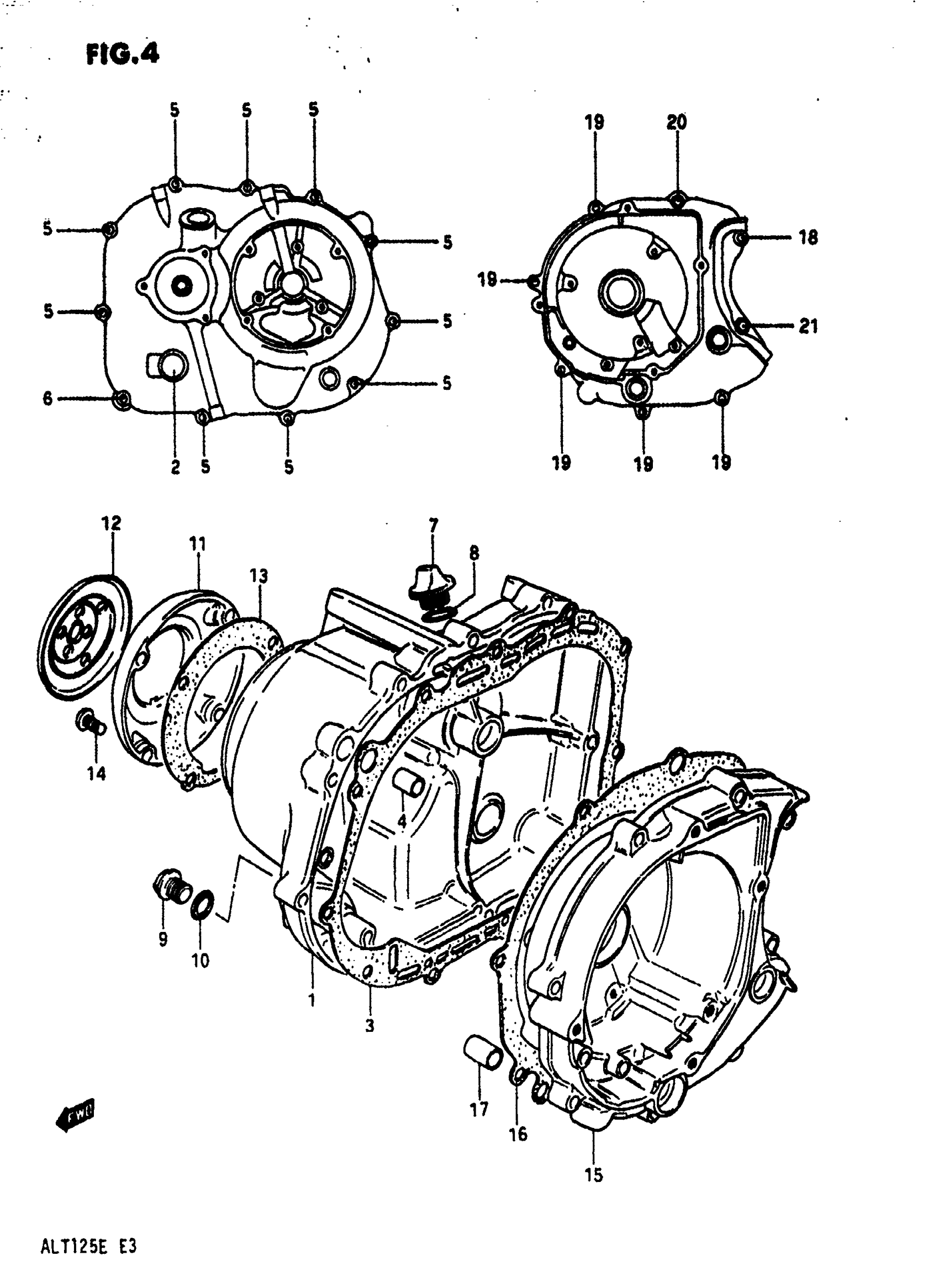

Suzuki ALT125 (1984) CLUTCH COVER - OIL PUMP Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL D WITHOUT OIL PLUG O-RING INTERCHANGED TO: 11340-18902 MUST ALSOUSE: 1) 09259-2000@ 1) 09280-17003 This part replaces 11340-18901.

11340-18903

Unavailable

1

COVER, CLUTCH | MODEL D This part replaces 11340-18902.

11340-18903

Unavailable

1

COVER, CLUTCH | MODEL E; Includes Item(s) 2

11340-18903

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-18900.

11482-18901

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

6

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

7

PLUG SET | FOR 11340-18901 This part replaces 09259-20003.

09200-20811

$4.02

7

.PLUG | FOR 11340-18902 & 11340-18903 This part replaces 09259-20008.

09259-20008-XC0

$7.50

8

O RING | FOR 11340-18902 & 11340-18903

09280-17003

$1.65

9

PLUG This part replaces 09247-14012.

09247-14026

$3.76

9

PLUG, OIL CHECK (BLACK)

09247-14015

$4.45

10

GASKET

09168-14004

$1.83

11

CAP, CLUTCH RELEASE ADJUST | -E.NO.141126 This part replaces 11387-18901.

11387-18902

Unavailable

11

CAP, CLUTCH RELEASE ADJUST | E.NO.141127-

11387-18902

Unavailable

12

CUSHION | -E.NO.141126 This part replaces 11393-18901.

11393-18902

Unavailable

12

CUSHION | E.NO.141127-

11393-18902

Unavailable

13

GASKET

11495-18900

Unavailable

14

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

15

COVER, MAGNETO This part replaces 11351-18900.

11351-18910

$261.53

16

GASKET,MAGNETO This part replaces 11483-18900.

11483-18901

Unavailable

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

BOLT This part replaces 01517-06308.

01550-06307

$2.69

19

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

20

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

21

SCREW This part replaces 02122-06308.

02122-0630B

$2.06
