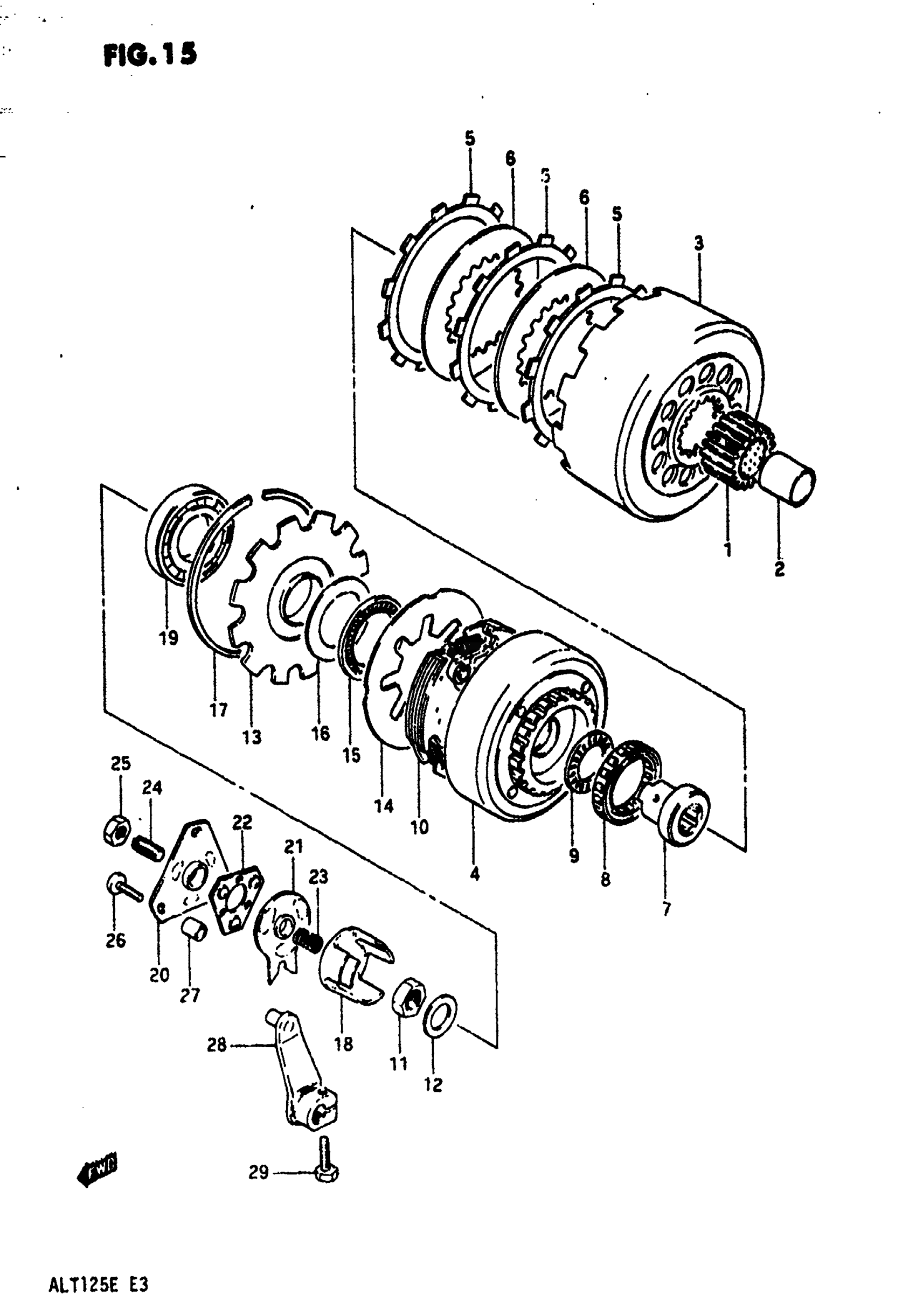

Suzuki ALT125 (1984) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:19)

21110-24200

Unavailable

2

SPACER

09180-20076

Unavailable

3

HOUSING, CLUTCH | MODEL D This part replaces 21221-24301.

21221-24303

Unavailable

3

HOUSING, CLUTCH | MODEL E This part replaces 21221-24302.

21221-24303

Unavailable

4

HUB, SLEEVE This part replaces 21410-24303.

21410-24401

Unavailable

5

PLATE, CLUTCH DRIVE This part replaces 21441-28301.

21441-13A01

$14.73

6

PLATE, DRIVEN

21451-24301

Unavailable

7

INNER RACE

21631-24303

Unavailable

8

CLUTCH, ONE WAY

21273-01401

Unavailable

9

THRUST BEARING

09263-25038

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 21500-24302.

21500-24211

Unavailable

11

NUT This part replaces 09140-16001.

09140-16005

$3.75

12

LOCK WASHER

09164-16002

$3.16

13

PLATE, PRESSURE

21461-24302

Unavailable

14

WAVE WASHER This part replaces 09164-49004.

09164-49005

Unavailable

15

THRUST BEARING

09263-40002

Unavailable

16

WASHER

09181-40003

Unavailable

17

RING

09381-00005

Unavailable

18

PIECE, PUSH This part replaces 23120-24302.

23120-24304

Unavailable

19

BEARING

09262-40004

Unavailable

20

BALLGUIDE, OUTER

23231-24200

Unavailable

21

BALLGUIDE, INNER

23211-24201

Unavailable

22

BALL, RELEASE This part replaces 23250-31002.

23250-31003

$28.18

23

SPRING

09440-10003

Unavailable

24

SCREW, ADJUSTER

09134-08009

$3.87

25

NUT This part replaces 08310-22088.

08310-00087

$2.13

26

SCREW This part replaces 02152-06258.

02112-1625B

$3.15

27

SPACER

09180-06095

$3.93

28

ARM, RELEASE This part replaces 23220-24300.

23220-18A00

Unavailable

29

BOLT This part replaces 09100-06091.

01500-06207

$2.28
