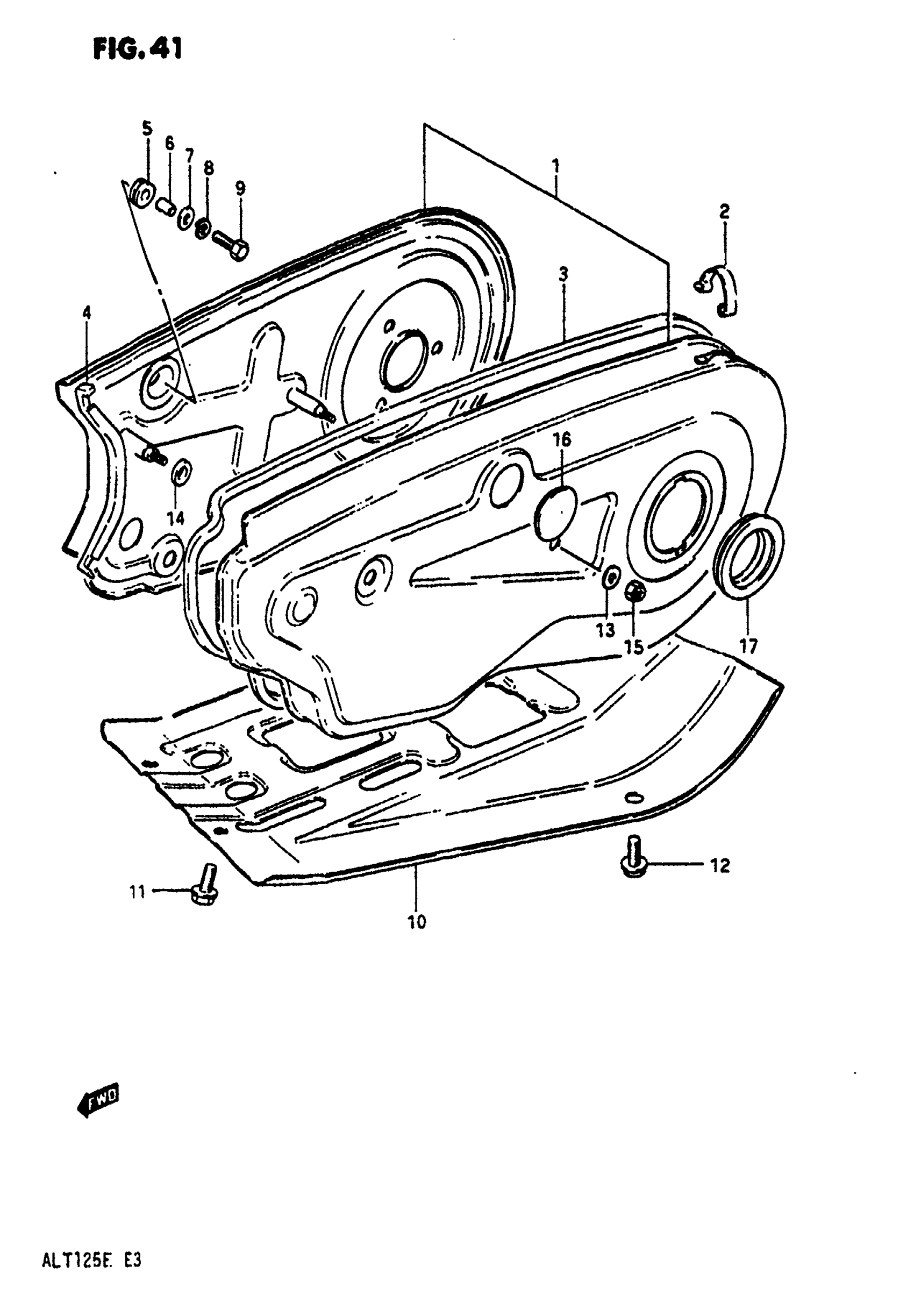

Suzuki ALT125 (1984) CHAIN CASE Diagram

#

Description
Price

1

CASE, CHAIN (BLACK) This part replaces 61300-24810-019.

61300-24811-019

Unavailable

2

CLAMP

61328-24200

Unavailable

3

SEAL, OUTER

61336-24300

Unavailable

4

SEAL, INNER FRONT

61337-24300

Unavailable

5

CUSHION, INNER

09320-08023

Unavailable

6

SPACER

09180-06001

$2.30

7

WASHER

09160-06041

Unavailable

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

BOLT This part replaces 01107-06208.

01500-06207

$2.28

10

GUARD, UNDER | MODEL D This part replaces 61391-24301.

61391-24305

Unavailable

10

GUARD, UNDER | MODEL E This part replaces 61391-24303.

61391-24305

Unavailable

11

BOLT | MODEL D This part replaces 01517-06108.

01550-06107

$2.80

11

BOLT | MODEL E This part replaces 01517-08128.

01550-08127

$2.85

12

BOLT This part replaces 01517-06128.

01550-06127

$2.30

13

WASHER, FITTING

09160-06041

Unavailable

14

SEAL

09320-09004

$3.03

15

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

16

CAP(OD:40) This part replaces 09250-30001.

09250-30024

$1.78

17

DUST SEAL

64729-24300

Unavailable
