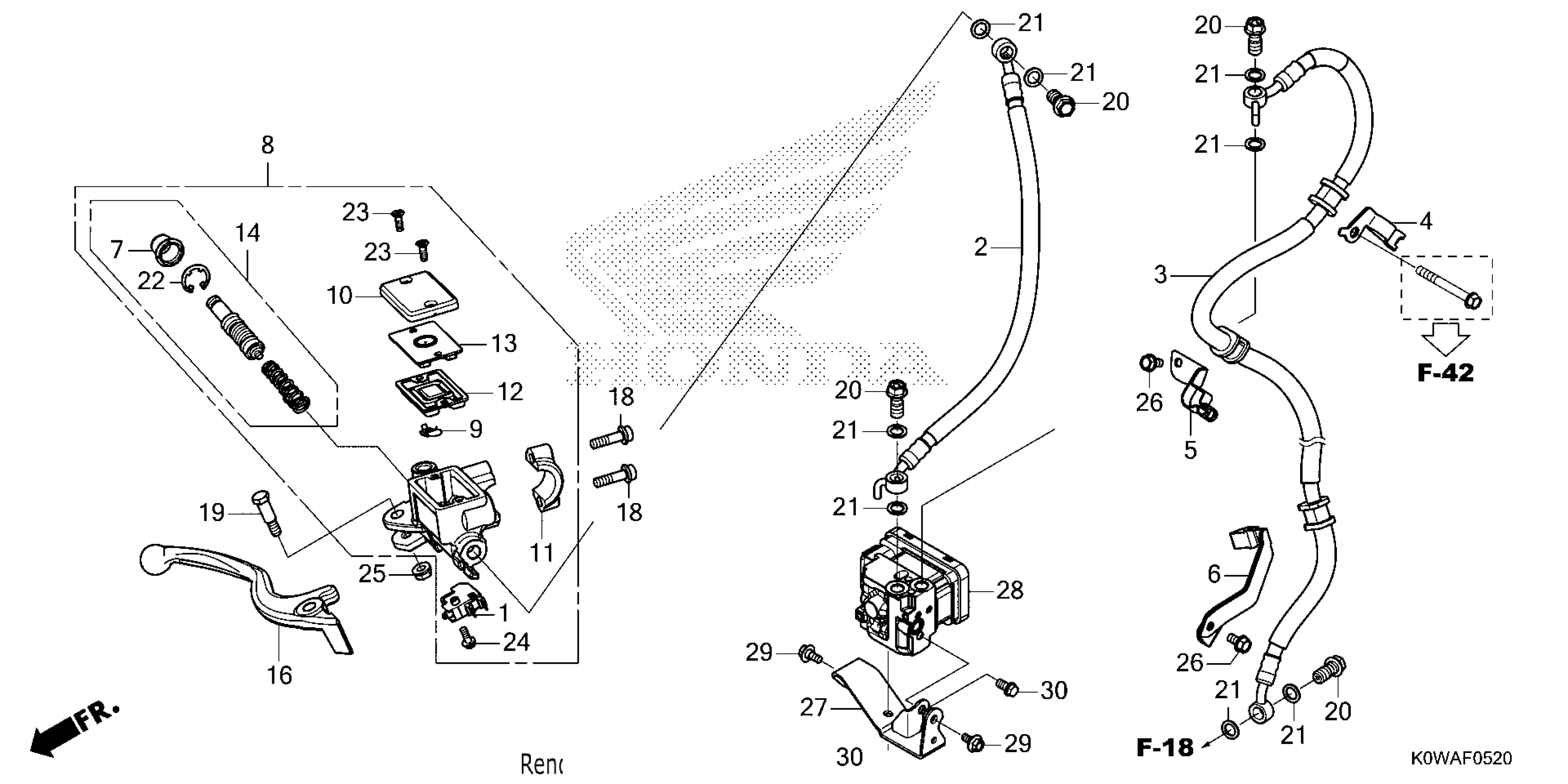

Honda ADV160AAC (26) MOTOR SCOOTER, THA, VIN# MLHKF545-T5200001 TO MLHKF545-T5299999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE COMP A, FR. BRK

45126-K0W-NB1

$10.51

3

HOSE COMP B, FR. BRK

45127-K0W-NB1

$16.19

4

CLAMP A, FR.

45156-K0W-NB0

$0.78

5

CLAMP B, FR.

45157-K0W-NB0

$1.12

6

CLAMP C, FR.

45158-K0W-TA0

$6.21

7

BOOT

45504-410-003

$11.17

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-K35-V01.

45510-K36-305

$57.51

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-K36-305

$57.51

9

PROTECTOR

45512-MA6-006

$4.09

10

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

11

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

12

DIAPHRAGM

45520-GE2-006

$8.57

13

PLATE, DIAPHRAGM

45521-K21-901

$2.10

14

MASTER CYLINDER SET

45530-471-831

Unavailable

16

LEVER, R. HANDLEBAR

53175-KYT-922

$14.74

18

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$0.82

19

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

21

WASHER, OIL BOLT

90545-300-000

$6.56

22

CIRCLIP

90651-MA5-671

$2.38

23

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

24

SCREW-WASHER (4X12)

93893-04012-07

$1.24

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

27

STAY, ABS MODULATOR

50316-K97-J10

$8.07

28

MODULATOR ASSY.

57110-K0W-NB2

$507.57

29

BOLT, FLANGE (6MM)

90111-162-000

$2.66

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.66
