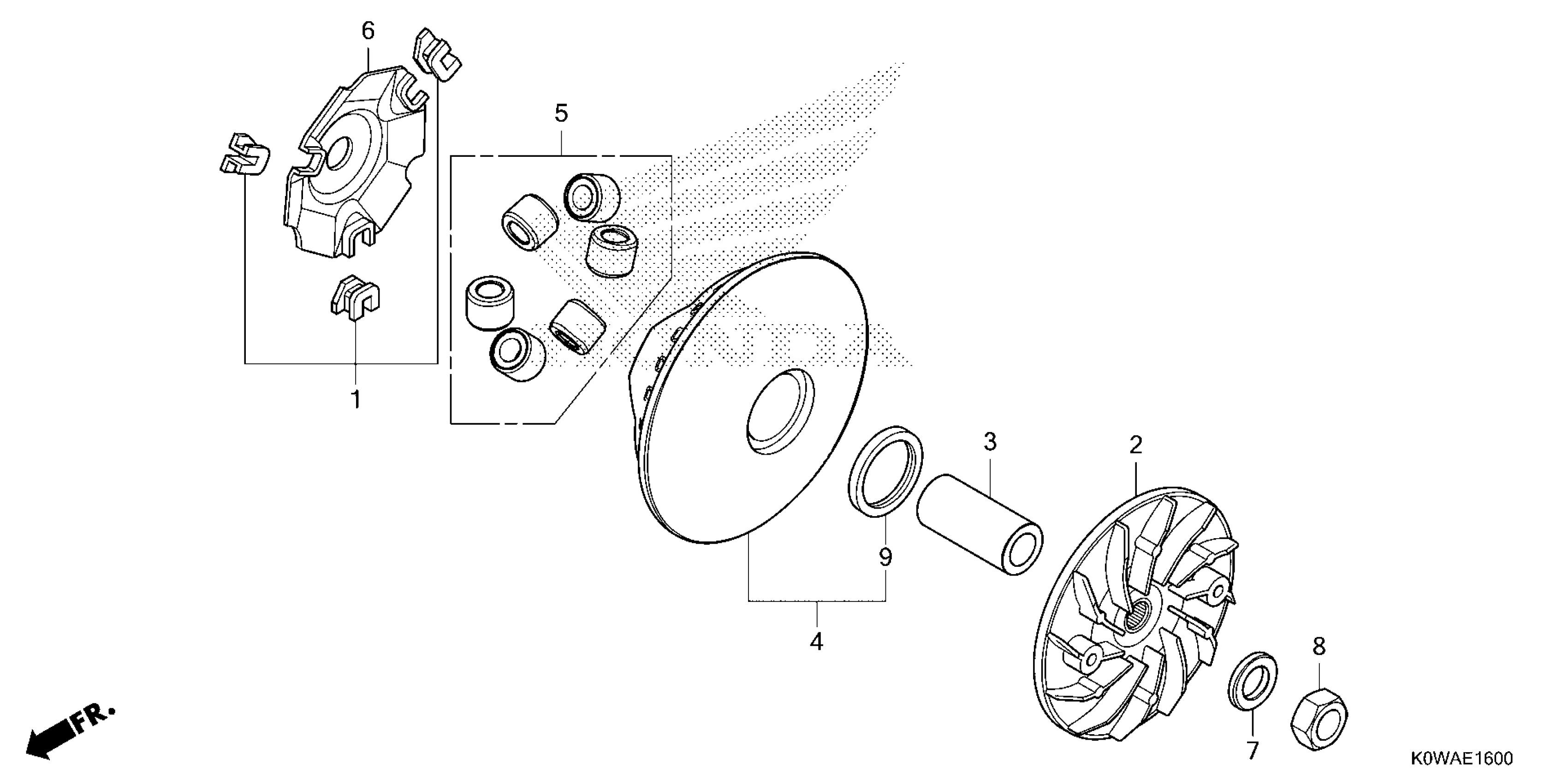

Honda ADV160AAC (26) MOTOR SCOOTER, THA, VIN# MLHKF545-T5200001 TO MLHKF545-T5299999 DRIVE FACE Diagram

#

Description
Price

1

PIECE SET, SLIDE

22011-K1N-V01

$3.72

2

FACE, DRIVE

22102-K1Z-J10

$4.40

3

BOSS, DRIVE FACE

22105-K0R-V00

$4.45

4

FACE, MOVABLE DRIVE

22110-K1Z-J10

$13.78

5

ROLLER SET, WEIGHT

22123-K0S-V00

$5.57

6

PLATE, RAMP

22131-K40-F00

$5.58

7

WASHER (15X25.8X4)

90401-K48-A00

$3.41

8

NUT, HEX. (14MM)

94030-14200

$1.23

9

OIL SEAL (24X31X3.5)

91203-K1F-V01

$1.00

9

OIL SEAL (24X31X3.5)

91203-K35-V01

$1.35
