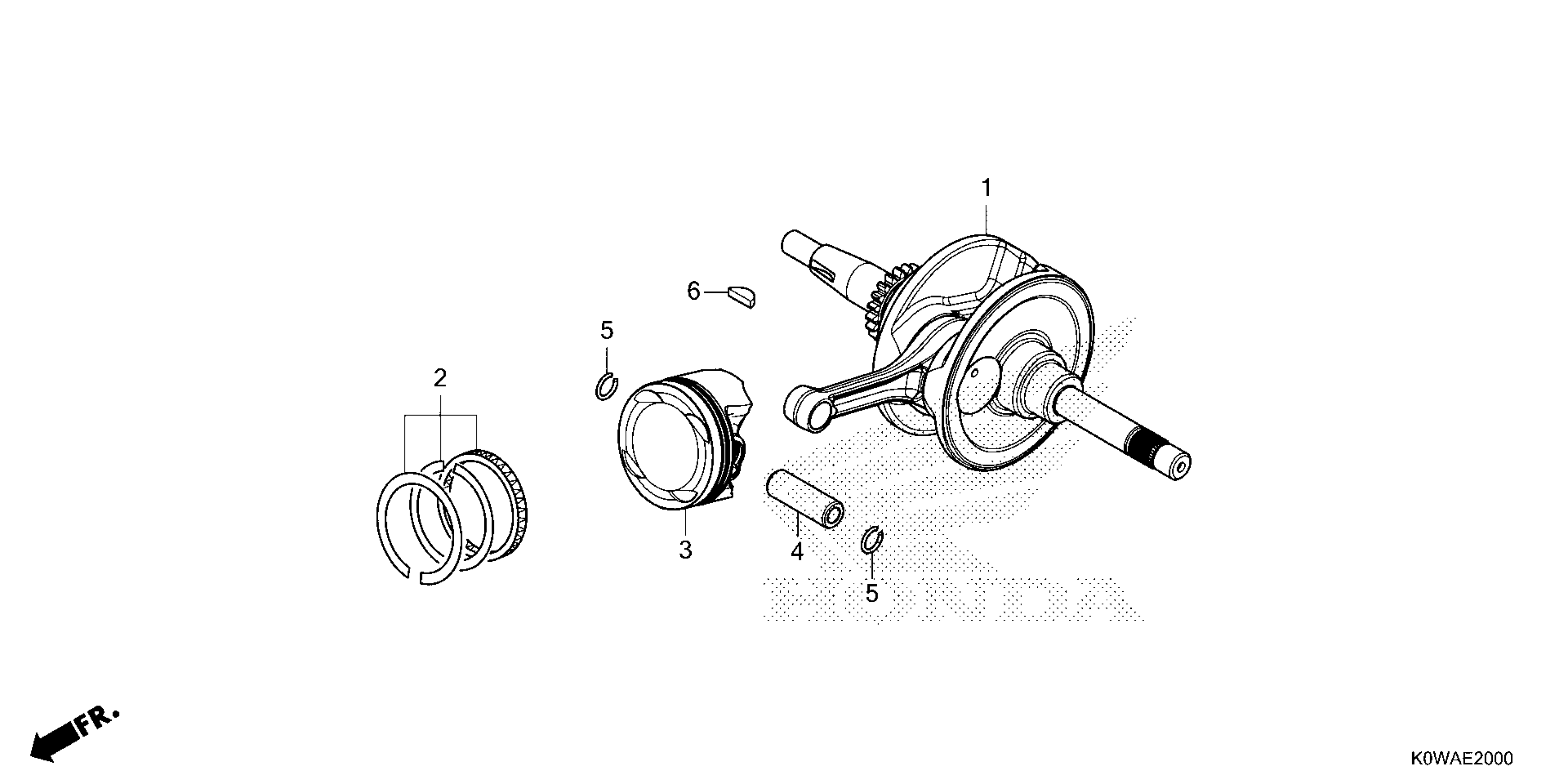

Honda ADV160AAC (26) MOTOR SCOOTER, THA, VIN# MLHKF545-T5200001 TO MLHKF545-T5299999 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

CRANKSHAFT COMP

13000-K2S-N00

$188.00

2

RING SET, PISTON (STD) (RIKEN)

13011-K0S-305

$10.00

2

RING SET, PISTON (STD) (TPR)

13011-K1Z-305

$10.58

3

PISTON (STD)

13101-K0S-V00

$23.54

4

PIN, PISTON

13111-K0R-V00

$2.14

5

CLIP, PISTON PIN (14MM)

13115-KZY-700

$0.86

6

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.62

6

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.62

6

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.62
