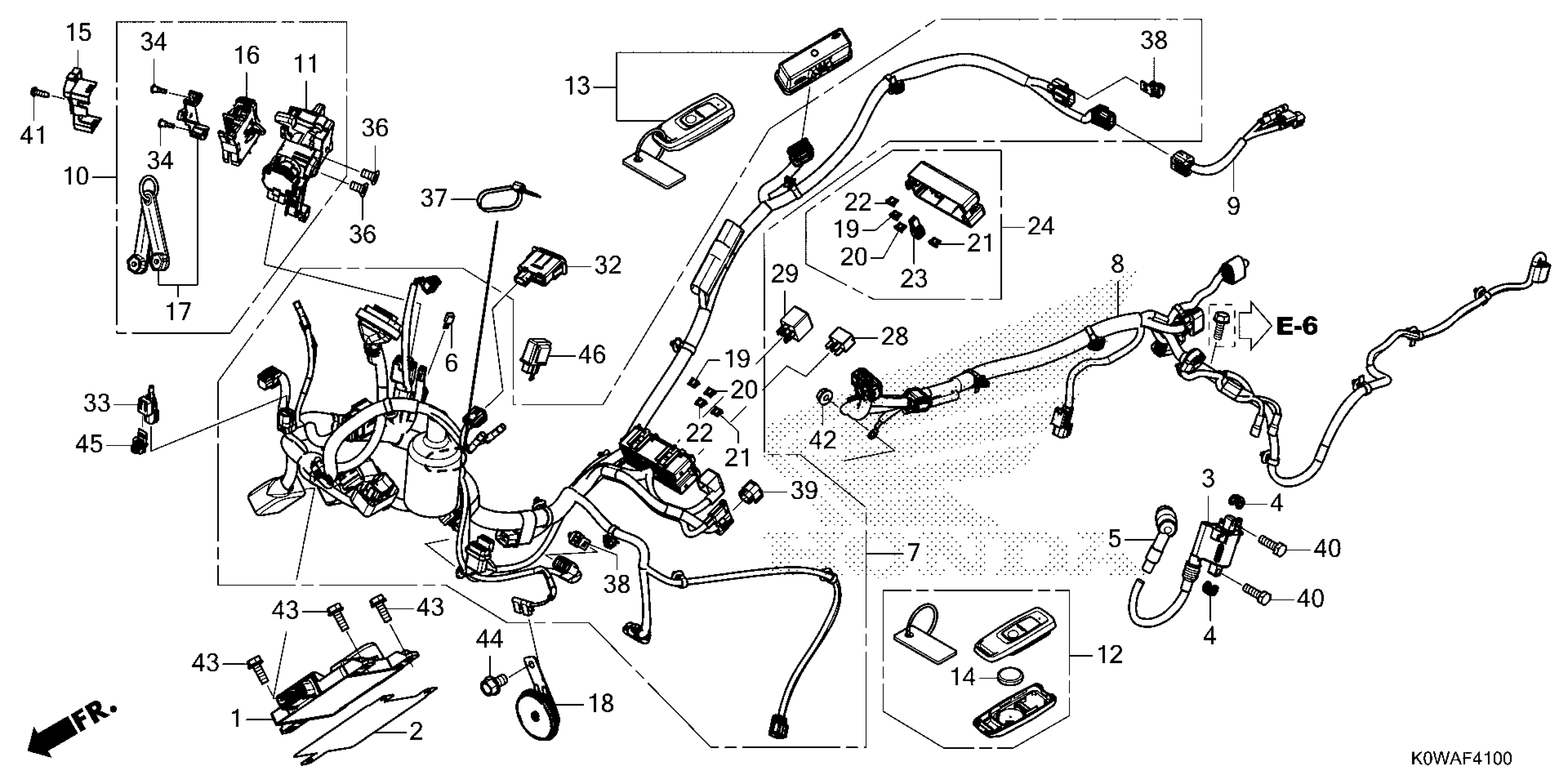

Honda ADV160AAC (25) MOTOR SCOOTER, THA, VIN# MLHKF545-S5100001 TO MLHKF545-S5199999 WIRE HARNESS@FOB KEY Diagram

CONTROL UNIT, ENGINE

30400-K0W-AA1

$219.74

COVER, ENGINE CONTROL UNIT

30401-K1Z-J10

$1.49

COIL, IGNITION

30510-K1N-V01

$10.41

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-K0R-V01

$5.01

CONNECTOR, DIODE (2P)

32146-SH3-003

$18.39

WIRE HARNESS

32100-K0W-AA0

$463.21

SUB-HARNESS, ENG

32104-K0W-NA0

$48.67

SUB-HARNESS, RR.

32105-K0W-NA0

$9.85

SWITCH, HANDLE LOCK

35100-K0W-AA1

$139.00

SWITCH, HANDLE LOCK

35101-K0W-AA1

$124.61

FOB ASSY.

35111-K0W-AA1

$113.21

CONTROL UNIT, SMART

35141-K0W-AA0

$208.95

BATTERY (CR2032)

35148-K1W-D00

$5.90

BATTERY (CR2032)

35148-K78-N10

$4.59

BATTERY (CR2032) (NOT AVAILABLE) (MSDS)

72148-S04-000

$7.26

COVER, CABLE

35191-K53-D01

$4.59

SWITCH, SEAT OPENER

35193-K0R-V01

$10.21

KEY SET, EMERGENCY

35194-K1Z-J11

$23.93

HORN (LOW)

38120-K0W-H11

$22.98

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

FUSE, BLADE (30A)

38221-SNA-A81

$2.49

FUSE, BLADE (5A)

38221-TZ3-A01

$1.49

PULLER, MINI FUSE

38235-SNA-A01

$3.84

COVER, POWER BOX

38255-K0W-NB1

$11.20

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$6.31

RELAY, POWER (PANASONIC)

38502-KWN-701

$34.93

CHARGER UNIT, USB

38940-K2T-V11

$67.11

SENSOR, AMBIENT

80525-K1W-V11

$8.21

SCREW, OPENER SET

90104-K53-D01

$1.49

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.84

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

BOLT, HEX. (6X22)

92101-06022-4J

$4.19

SCREW, TAPPING (4X12)

93901-24320

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

CLIP, CONNECTOR

90651-K2T-V01

$1.49

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87
