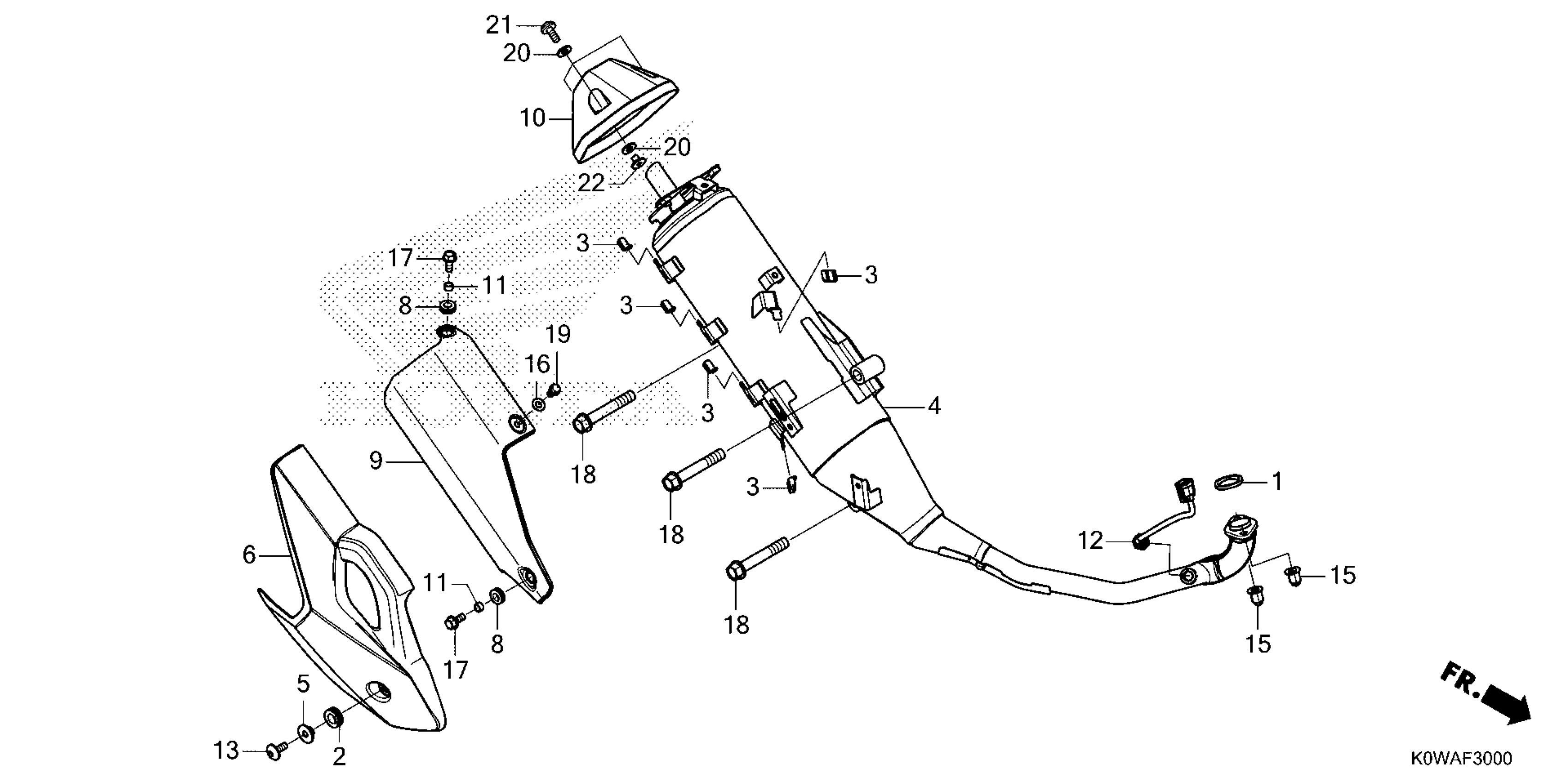

Honda ADV160AAC (25) MOTOR SCOOTER, THA, VIN# MLHKF545-S5100001 TO MLHKF545-S5199999 MUFFLER Diagram

GASKET, EX. PIPE

18291-GE2-921

$1.97

RUBBER, PROTECTOR MOUNTING

18293-HL4-A00

$3.18

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER, EX.

18300-K0W-AA0

$628.89

COLLAR, MUFFLER PROTECTOR

18316-KVB-900

$1.87

PROTECTOR, MUFFLER

18318-K0W-NA0

$6.69

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

COVER A, MUFFLER

18358-K0W-NA0

$78.98

CAP, TAIL

18359-K0W-TA0

$8.56

COLLAR, TURN SIGNAL STAY

33619-459-840

$2.56

SENSOR, OXYGEN

36532-K2S-T01

$42.75

BOLT, SPECIAL (6X16)

90107-K26-900

$1.49

NUT, CAP (7MM)

90304-MJ0-920

$4.94

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (10X65)

95701-10065-07

$2.20

BOLT, FLANGE (6X8)

96001-06008-00

$1.49

WASHER, RUBBER

18365-K77-V00

$1.49

SCREW, PAN (5X15)

90103-K56-N10

$3.38

COLLAR

90501-K40-F00

$7.32
