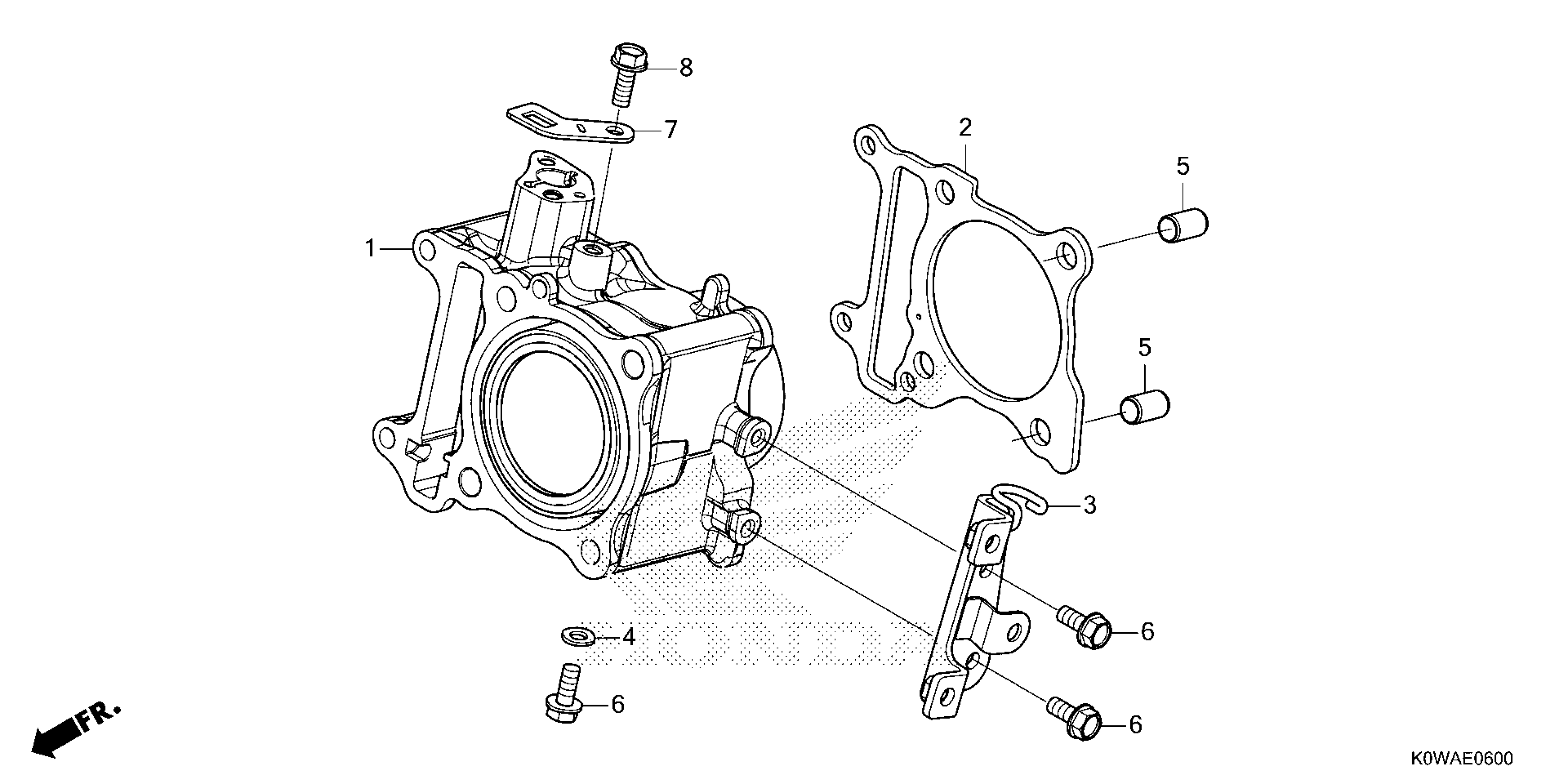

Honda ADV160AAC (25) MOTOR SCOOTER, THA, VIN# MLHKF545-S5100001 TO MLHKF545-S5199999 CYLINDER Diagram

CYLINDER COMP

12100-K1Z-T00

$61.30

GASKET, CYLINDER (NICHIAS)

12191-K1N-V01

$1.49

STAY COMP, IGN COIL

30515-K0W-NA0

$16.18

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

STAY, HARNESS CLIP & ENGINE GROUND

32962-K0R-V00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
