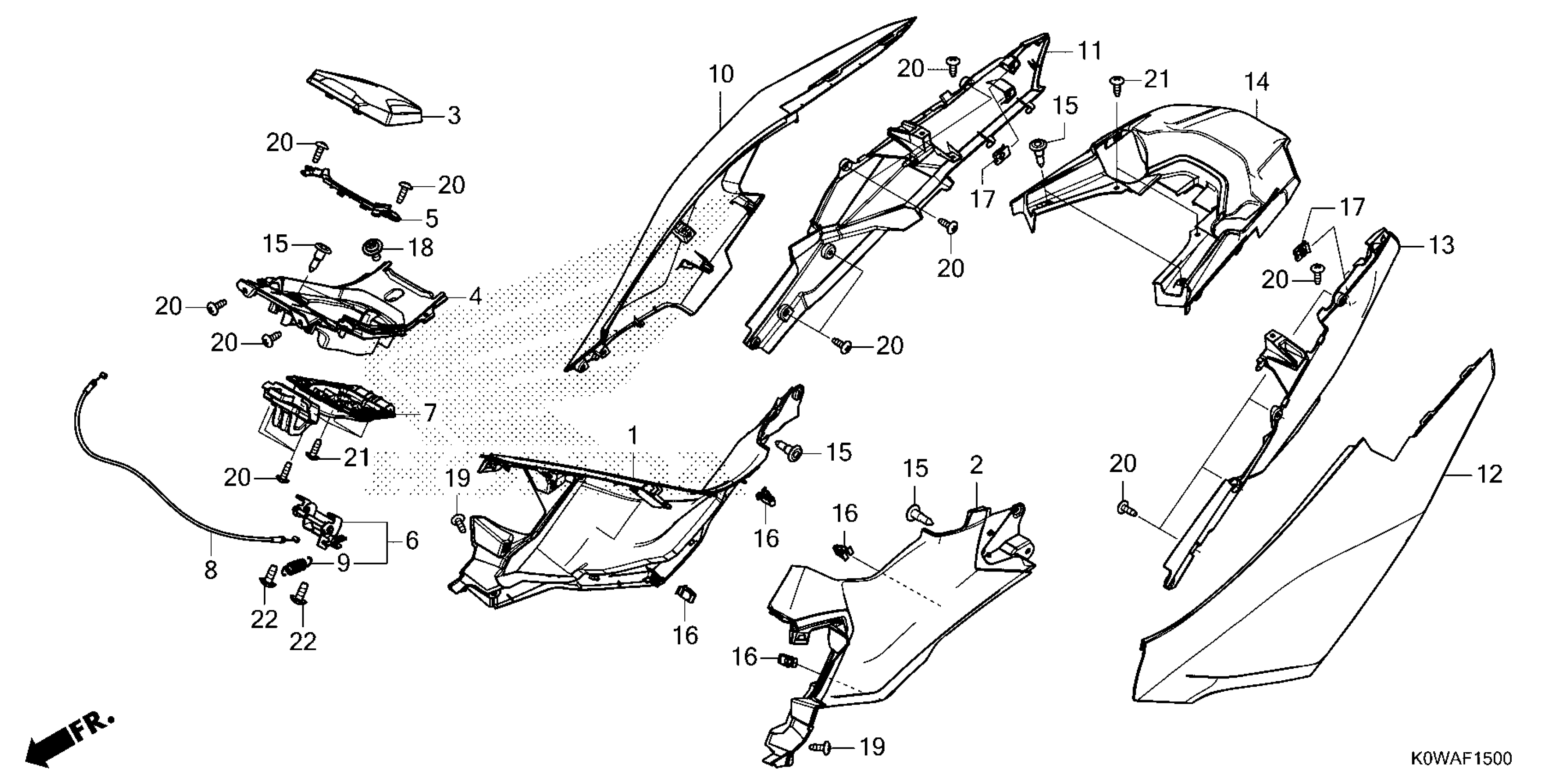

Honda ADV160AAC (25) MOTOR SCOOTER, THA, VIN# MLHKF545-S5100001 TO MLHKF545-S5199999 BODY COVER Diagram

#

Description
Price

1

COVER *NHA40M*

64350-K0W-NA0ZB

$87.74

1

COVER *NH303M*

64350-K0W-NA0ZA

$81.67

2

COVER *NHA40M*

64360-K0W-NA0ZB

$87.83

2

COVER *NH303M*

64360-K0W-NA0ZA

$76.08

3

LID, FUEL *NH1*

64405-K0W-NA0ZA

$5.72

4

COVER, CENTER *NH1*

64410-K0W-NA0ZA

$9.30

5

CVR, FUEL LID *NH1*

64415-K0W-NA0ZA

$6.52

6

LOCK ASSY., FUEL LID

64440-K35-V00

$3.80

7

HINGE ASSY., FUEL LID

64450-K0W-N01

$55.00

8

CABLE, FUEL LID

64455-K1Z-J11

$2.13

9

SPRING, SEAT LOCK

77234-KRJ-900

$2.80

10

SET ILLUS *R402M*

83550-K0W-TA0ZA

$56.83

10

SET ILLUS *NH436M*

83550-K0W-TA0ZB

$56.83

10

SET ILLUS *B241P*

83550-K0W-TA0ZD

$56.83

10

SET ILLUS *NHC53P*

83550-K0W-TA0ZC

$56.83

11

COVER, R BODY SIDE

83600-K0W-NA0

$11.23

12

SET ILLUS *R402M*

83650-K0W-TA0ZA

$53.75

12

SET ILLUS *NH436M*

83650-K0W-TA0ZB

$53.42

12

SET ILLUS *B241P*

83650-K0W-TA0ZD

$53.75

12

SET ILLUS *NHC53P*

83650-K0W-TA0ZC

$53.75

13

COVER, L BODY SIDE

83700-K0W-NA0

$10.33

14

SET ILLUS (TYPE1)

83760-K0W-NA0ZA

$12.22

15

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

16

CLIP, SNAP FITTING (PO)

90666-K59-A11

$1.03

17

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

18

SCREW, PAN (5X11.5)

91509-GE2-760

$2.16

19

SCREW, TAPPING (4X12)

93903-24320

$0.83

20

SCREW, TAPPING (4X12)

93903-24320

$0.83

21

SCREW, TAPPING (4X12)

93903-24380

Unavailable

22

SCREW, TAPPING (5X12)

93903-25220

$0.83
