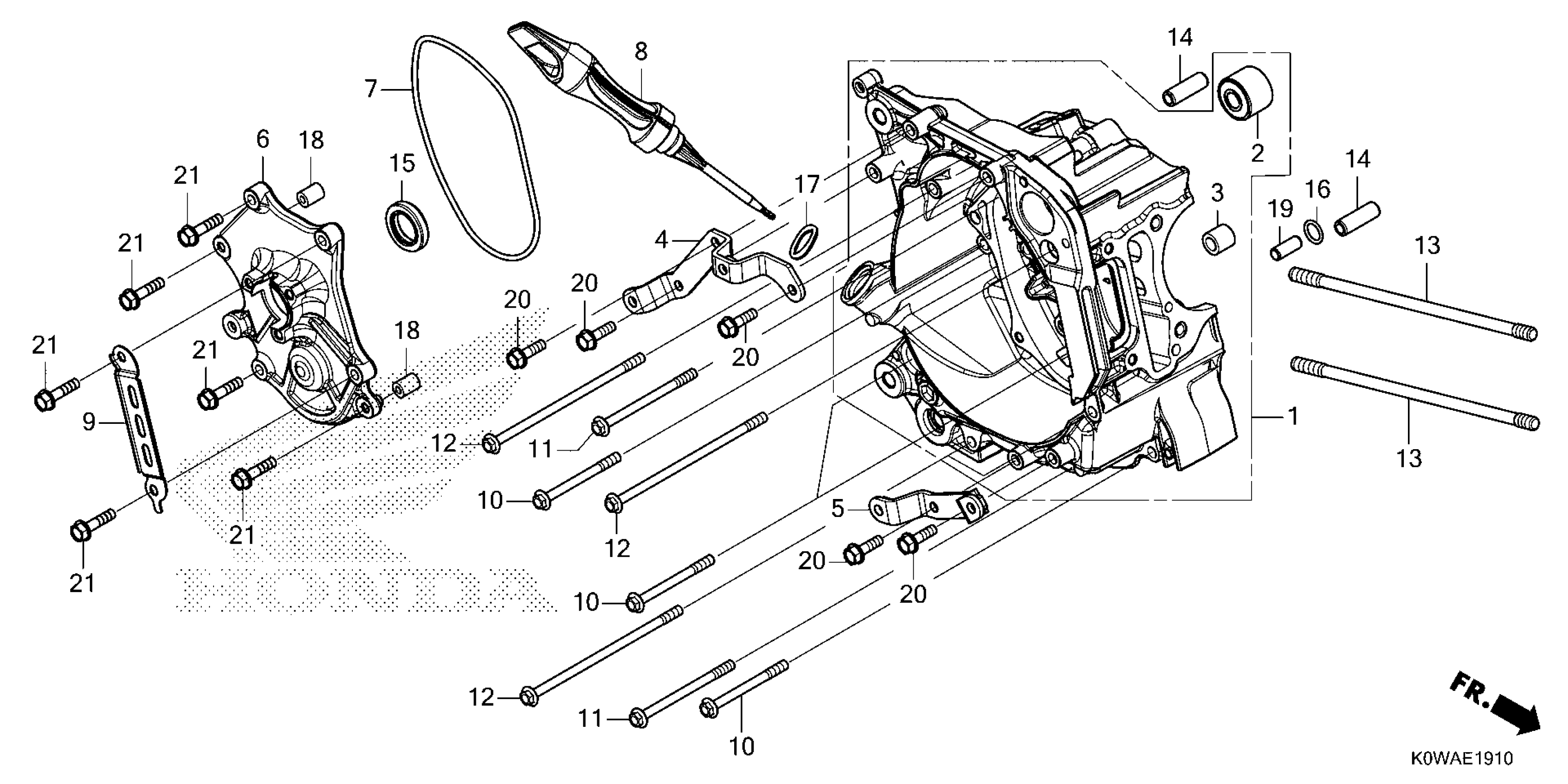

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 RIGHT CRANKCASE Diagram

CRANKCASE, R.

11100-K1N-V00

$90.29

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

11103-KVB-901

$3.25

BUSH, MAIN STAND

11205-GBC-300

$0.73

PLATE, RIGIDITY (UPPER)

11320-K0R-V00

$1.81

PLATE, RIGIDITY (LOWER)

11330-K0R-V00

$1.28

BASE, STATOR

11361-K0R-V00

$6.93

GASKET, STATOR BASE

11363-K0R-V00

$0.87

GAUGE, OIL LEVEL

15651-K0W-NA0

$16.54

CLAMP, ALTERNATOR WIRE

32961-K0R-V00

$0.55

BOLT, FLANGE (6X65) (LNSH)

90006-K0R-V00

Unavailable

BOLT, FLANGE (6X80) (LNSH)

90007-K0R-V00

$0.38

BOLT, FLANGE (6X130) (LNSH)

90008-K0R-V00

$0.52

BOLT A, STUD (8X209.2)

90031-K0R-V00

$1.25

PIN, DOWEL SPECIAL (6.3X10X30)

90702-KWN-900

$1.25

OIL SEAL (20.8X32X6) (ARAI)

91201-K35-J01

$2.17

OIL SEAL (20.8X32X6)

91201-K59-A11

$2.14

O-RING (8MM)

91303-001-010

$2.20

O-RING (18X3)

91307-035-000

$2.71

PIN A, DOWEL (8X10)

94301-08100

$2.04

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.04

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
