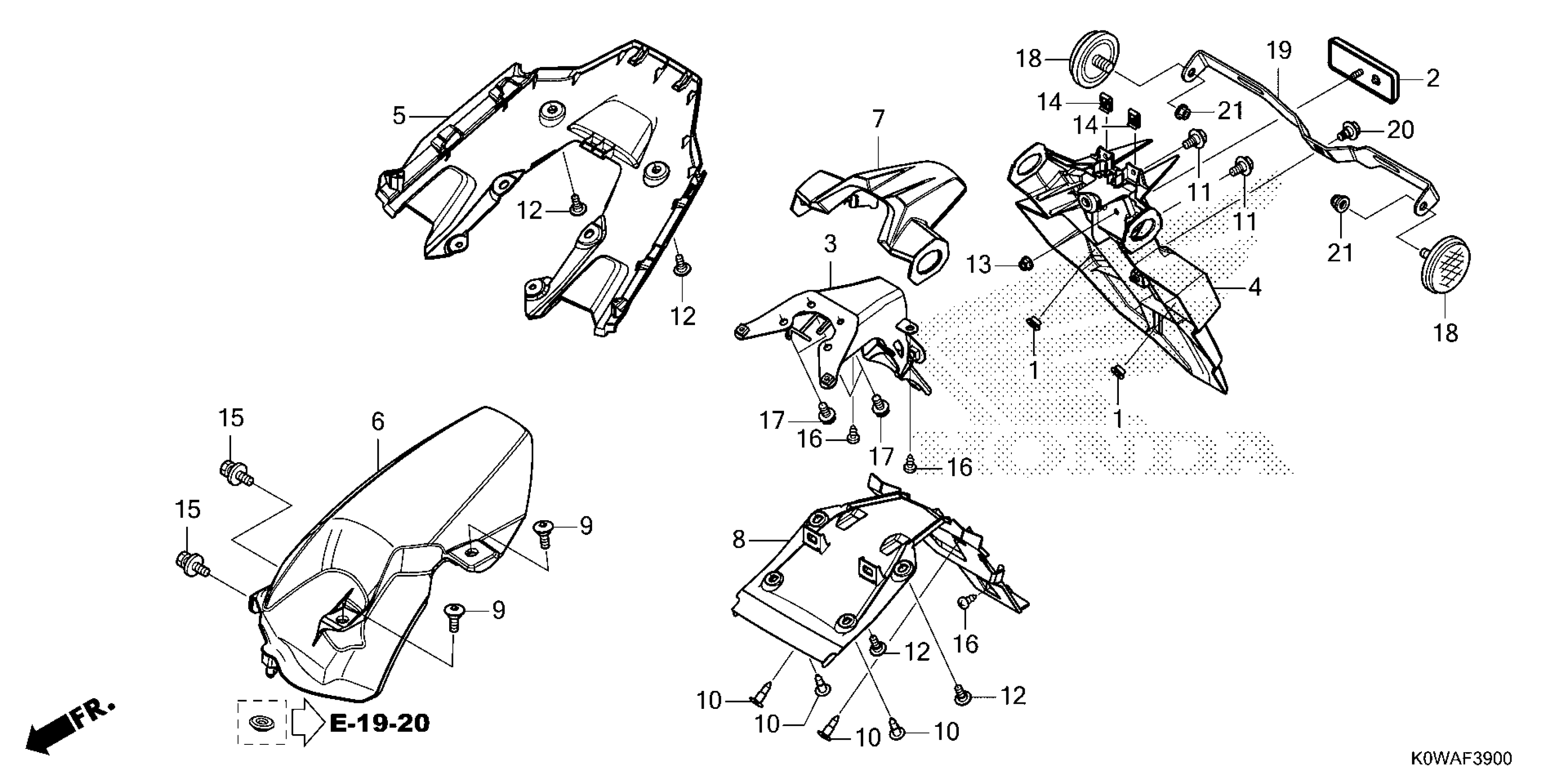

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 REAR FENDER Diagram

COLLAR

19416-K36-H00

$1.49

REFLECTOR, REFLEX

33741-KWN-901

$10.21

BRKT, RR. *NHA40M*

50186-K0W-NA0ZA

$101.21

FENDER A, RR.

80101-K0W-J00

$19.90

COVER, RR. CENTER

80102-K0W-NA0

$18.87

FENDER C, RR.

80103-K0W-NA0

$16.51

COVER, RR. FENDER (UPPER)

80106-K0W-N00

$5.52

COVER, RR. FENDER

80107-K0W-NA0

$17.48

BOLT, SOCKET (6X18)

90101-K29-900

$3.33

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

BOLT, FLANGE (6MM)

90116-KVB-900

$1.49

SCREW, PAN (5X14)

90134-KPP-T00

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

BOLT-WASHER (6X14)

93404-06014-07

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

BRACKET, NUMBER PLATE

84700-K0W-A10

$34.64

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49
