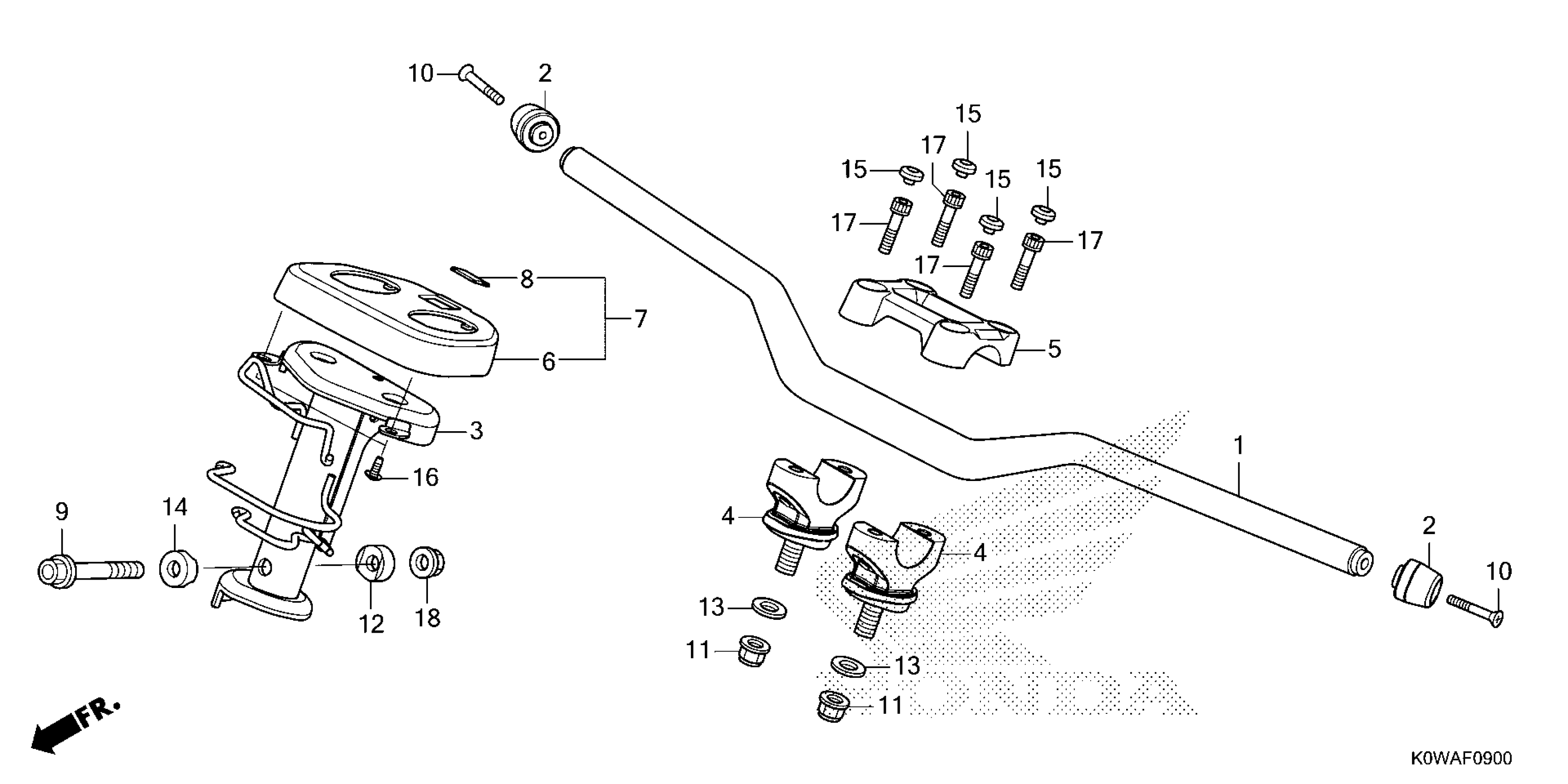

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 HANDLEBAR@HANDLE COVER Diagram

PIPE *NHA40M*

53100-K0W-NA0ZA

$60.25

WEIGHT A, HANDLE

53101-K0W-N00

$11.82

POST COMP, HANDLE

53110-K0W-NA0

$51.89

HOLDER *NHA40M*

53130-K0W-NA0ZA

$50.31

HOLDER, HANDLE (UPPER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

53131-K0W-N00ZA

$36.49

COVER, RR. HANDLE

53206-K0W-N00

$6.11

COVER, RR. HANDLE

53250-K0W-N00

$8.69

EMBLEM, PRODUCT (MARUI) This part replaces 86150-GFC-890.

86150-GFC-901

$2.92

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.92

EMBLEM, PRODUCT (UEHARA)

86150-GFC-902

$2.98

EMBLEM, PRODUCT (SHINKO ASIA)

86150-KYS-940

$4.28

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.46

SCREW, OVAL (6X45)

90191-KWB-600

$1.49

NUT, U (10MM)

90304-KGH-901

$3.25

COLLAR A, HANDLE SETTING

90501-KPH-880

$1.49

WASHER (10MM)

90502-KWN-670

$1.49

COLLAR B, HANDLE SETTING

90505-KPH-880

$1.49

CAP, SOCKET BOLT (8MM)

91455-KEA-000

$3.72

SCREW, TAPPING (4X10)

93903-24220

$1.49

BOLT, SOCKET (8X28)

96600-08028-00

$2.02

NUT, SELF-LOCK (10MM)

90212-671-005

$1.49
