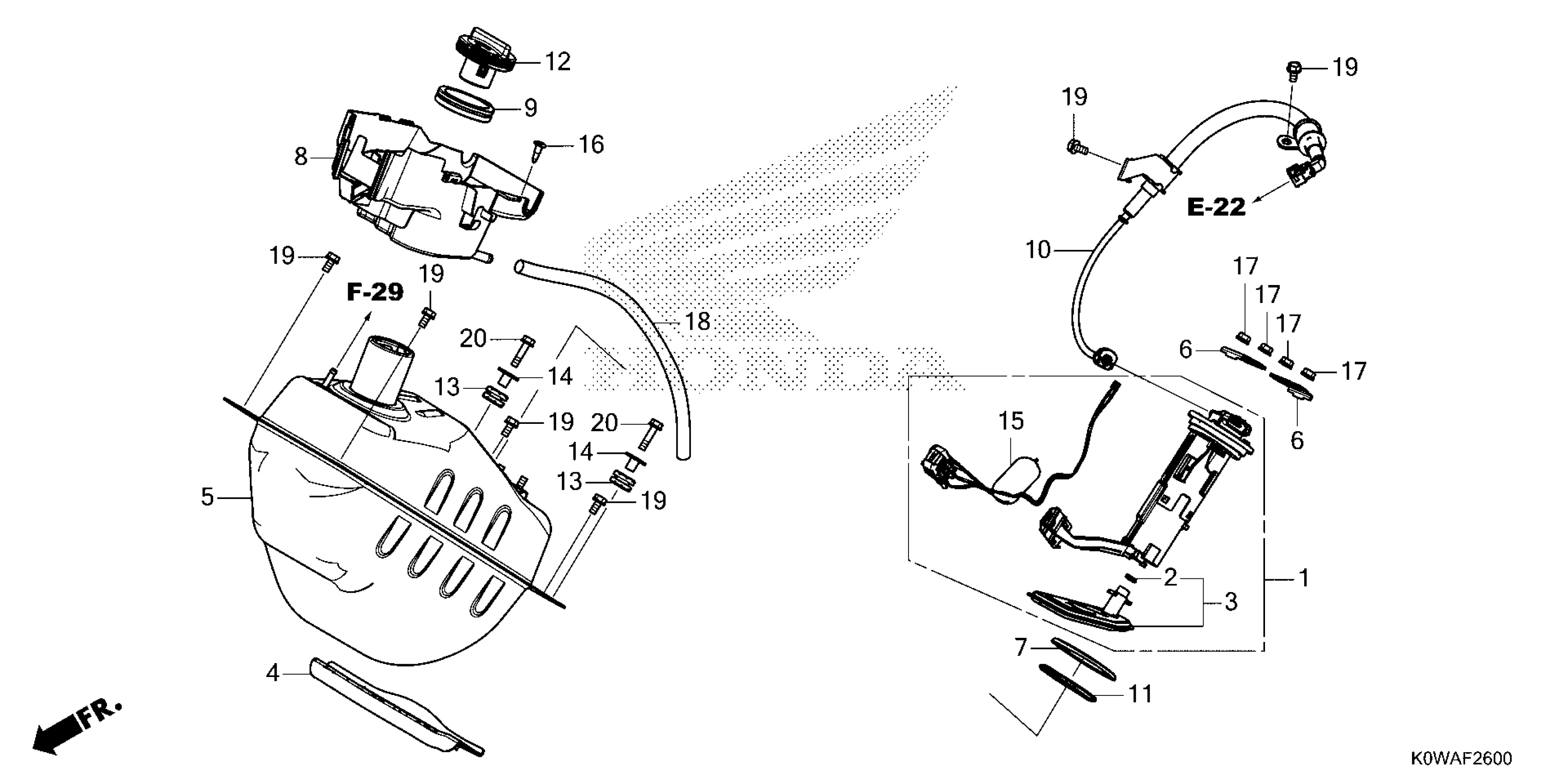

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 FUEL TANK Diagram

UNIT, FUEL PUMP

16700-K0W-TA1

$58.36

O-RING (P5)

16706-K0J-N01

$1.49

FILTER SET

16707-K0W-NA1

$9.15

PLATE, FUEL TANK

17506-K1Z-J10

$2.16

TANK, FUEL

17510-K1Z-J10

$57.18

RETAINER, FUEL PUMP

17517-GGL-J00

$7.36

DUST SEAL (OHTUKA POLY-TECH)

17518-GHB-601

$8.59

TRAY, FUEL

17525-K0W-NA0

$20.87

RUBBER, FUEL SEAL

17527-K35-V00

$1.49

HOSE COMP, FUEL FEED

17570-K0W-NA1

$32.67

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$9.32

CAP, FUEL FILLER

17620-K66-V02

$8.82

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.49

COLLAR, TAILLIGHT

33707-K04-930

$1.49

FUEL UNIT

37800-K0W-NA1

$32.15

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

NUT, FLANGE (6MM)

94050-06000

$1.49

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
