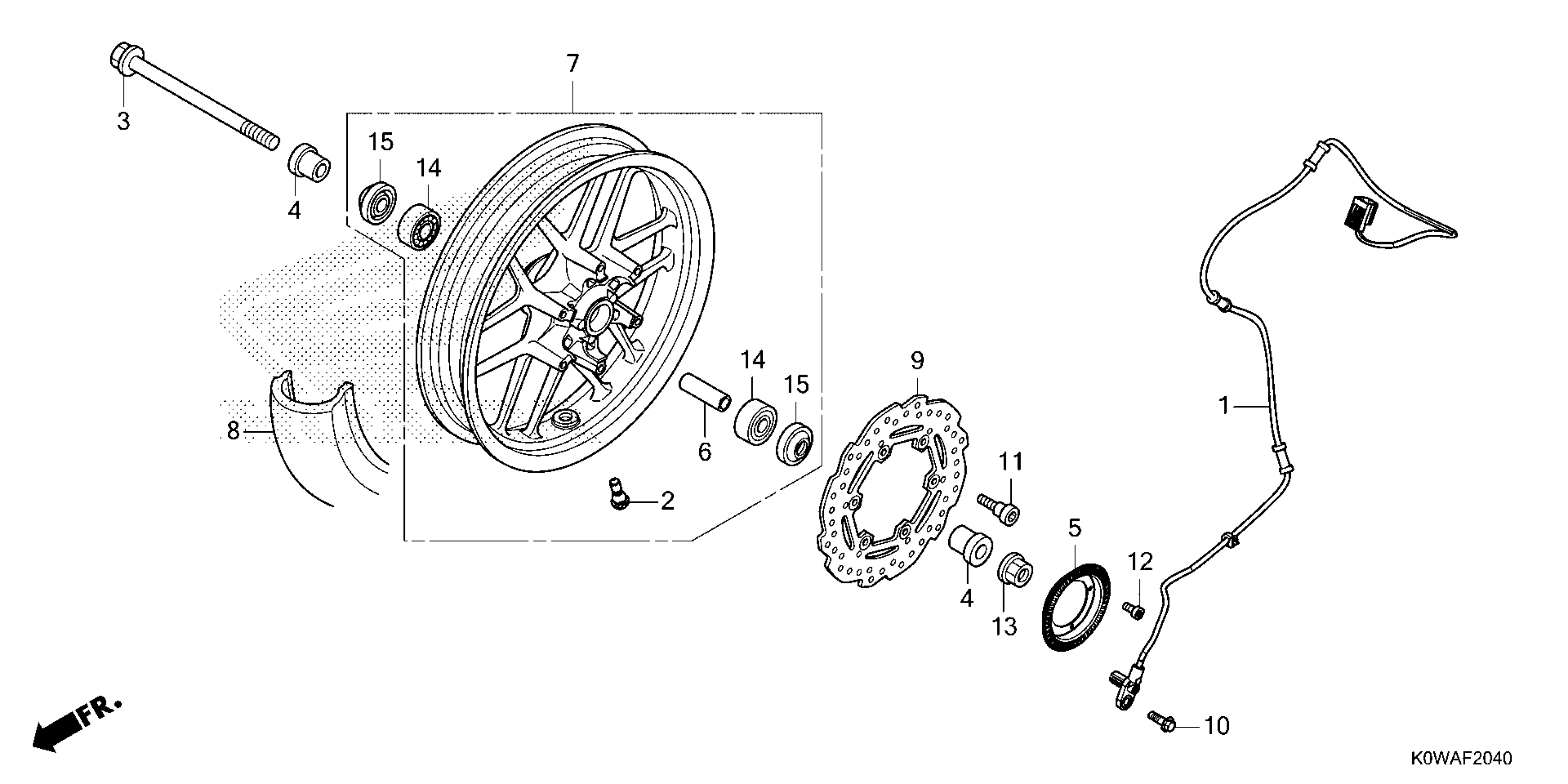

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 FRONT WHEEL Diagram

SENSOR, FR.

38520-K0W-NB1

$19.25

VALVE, RIM (IRC)

42753-GM9-743

$7.99

AXLE, FR. WHEEL

44301-K0W-N00

$5.90

COLLAR, FR. WHEEL SIDE

44311-K0W-T00

$5.56

RING, FR. PULSER

44515-K26-C10

$24.58

COLLAR, FR. AXLE DISTANCE

44620-K0W-N00

$6.88

WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC)

44650-K0W-T00ZA

$188.44

TIRE, FR. (110/80-14M/C 53P) (IRC)

44711-K0W-T01

$55.92

DISK, FR. BRAKE

45351-K0W-T01

$71.51

BOLT (6X18)

90106-K0W-TA0

$0.88

BOLT, DISK (6X17)

90105-KZZ-900

Unavailable

BOLT, TORX (5X10)

90131-K64-N10

$2.15

NUT, U (12MM)

90306-KWN-701

$3.87

BEARING, RADIAL BALL (6201U L) (NSK)

91052-K24-901

$4.15

BEARING,BALL RADI

91052-K24-904

$3.71

DUST SEAL (21X32X5) (ARAI)

91251-KZR-601

$1.26
