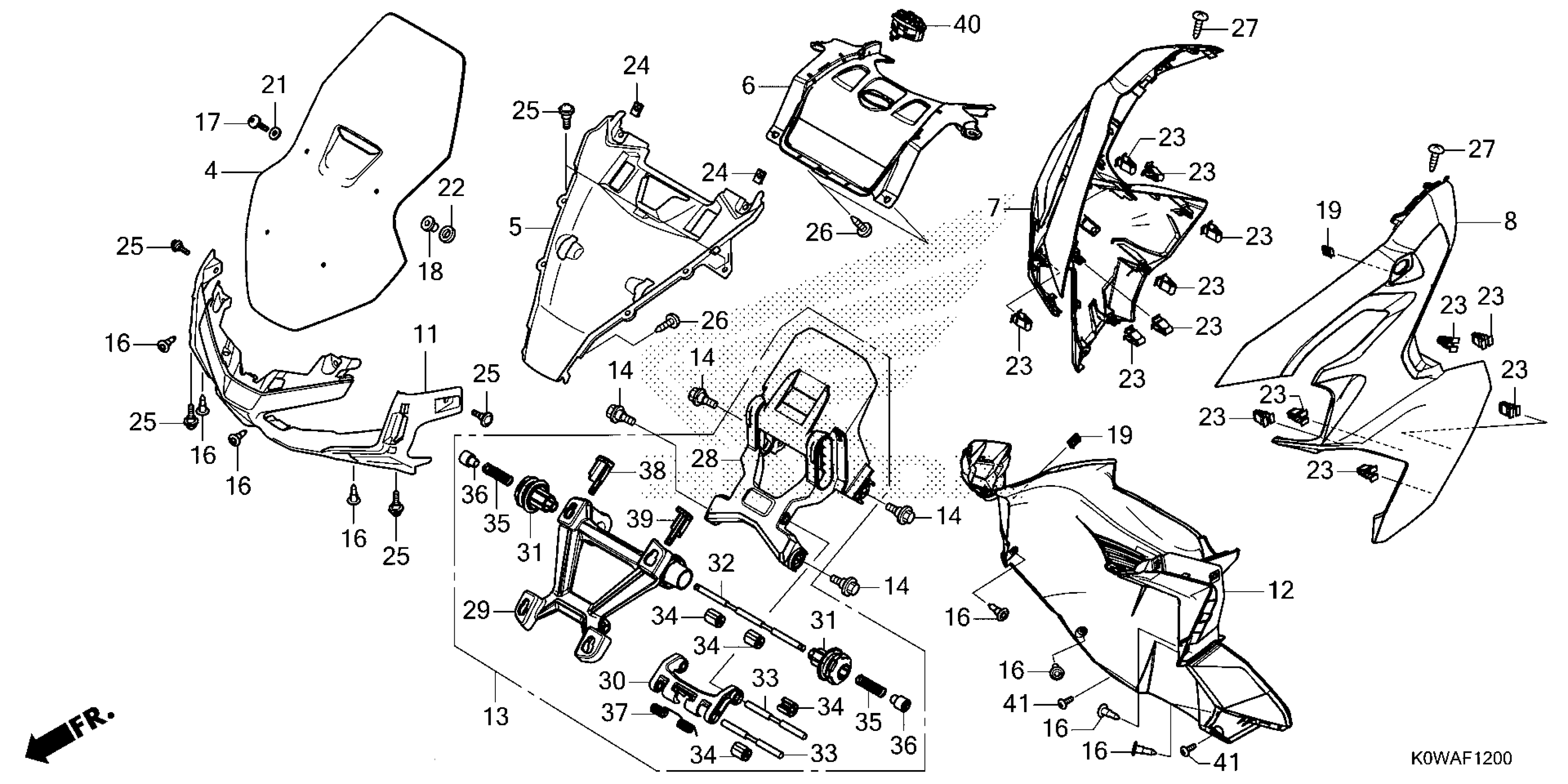

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 FRONT COVER Diagram

#

Description
Price

4

SET ILLUS (TYPE1)

64100-K0W-NA0ZA

$109.14

5

COVER, FR. (UPPER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64336-K0W-N00ZD

$72.88

5

COVER, FR. *R402M*

64336-K0W-N00ZS

$35.77

5

COVER, FR. *B241P*

64336-K0W-N00ZU

$39.03

5

COVER, FR. *NHC53P*

64336-K0W-N00ZT

$35.78

6

CVR, MULTI SW *NH1*

64337-K0W-NA0ZA

$10.99

7

COVER, FR. *R402M*

64501-K0W-NA0ZA

$46.52

7

COVER, FR. *NH436M*

64501-K0W-NA0ZB

$46.52

7

COVER, FR. *B241P*

64501-K0W-NA0ZD

$46.52

7

COVER, FR. *NHC53P*

64501-K0W-NA0ZC

$46.52

8

COVER, FR. *R402M*

64502-K0W-NA0ZA

$46.26

8

COVER, FR. *NH436M*

64502-K0W-NA0ZB

$46.26

8

COVER, FR. *B241P*

64502-K0W-NA0ZD

$46.26

8

COVER, FR. *NHC53P*

64502-K0W-NA0ZC

$46.26

11

COVER, FR. CENTER

64503-K0W-N00

$10.88

12

COVER, FR. (LOWER)

64521-K0W-NA0

$36.09

13

LINK ASSY., SCREEN ADJUST

64700-K0W-N01

$423.68

14

BOLT, SPECIAL (6X16)

90001-MFE-670

$2.58

16

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

17

SCREW, PAN (5X20) (SUS)

90118-MJP-G50

$2.12

18

NUT, WELL (5MM)

90156-GZ4-670

$4.54

19

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

21

WASHER, THRUST (5MM)

90504-964-000

$1.72

22

WASHER, NYLON (9MM)

90507-ZV1-000

$1.83

23

CLIP, SNAP FITTING (PO)

90666-K59-A11

$1.03

24

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

25

SCREW, PAN (5X11.5)

91509-GE2-760

$2.16

26

SCREW, TAPPING (4X12)

93903-24320

$0.83

27

SCREW, TAPPING (4X16)

93903-34420

$0.75

28

BRACKET, ADJUST SCREEN

64701-K0W-N00

$67.42

29

HOLDER, SCREEN

64702-K0W-N00

$99.17

30

LINK, ARM

64703-K0W-N00

$65.99

31

KNOB, ADJUST LOCK

64704-K0W-N00

$26.38

32

SHAFT A, PIVOT

64705-K0W-N00

$24.33

33

SHAFT B, PIVOT

64706-K0W-N00

$17.74

34

CLIP

64707-K0W-N00

$7.32

35

SPRING, ADJUST PIVOT

64708-K0W-N00

$9.33

36

STOPPER, ADJUST KNOB

64709-K0W-N00

$12.12

37

SPRING, ASSIST

64710-K0W-N00

$9.42

38

LID, R. SCREEN HOLDER

64711-K0W-N00

$12.12

39

LID, L. SCREEN HOLDER

64712-K0W-N00

$12.12

40

SW ASSY., MULTI

35300-K0W-NA1

$22.30

41

SCREW, TAPPING (4X12)

93903-24380

Unavailable
