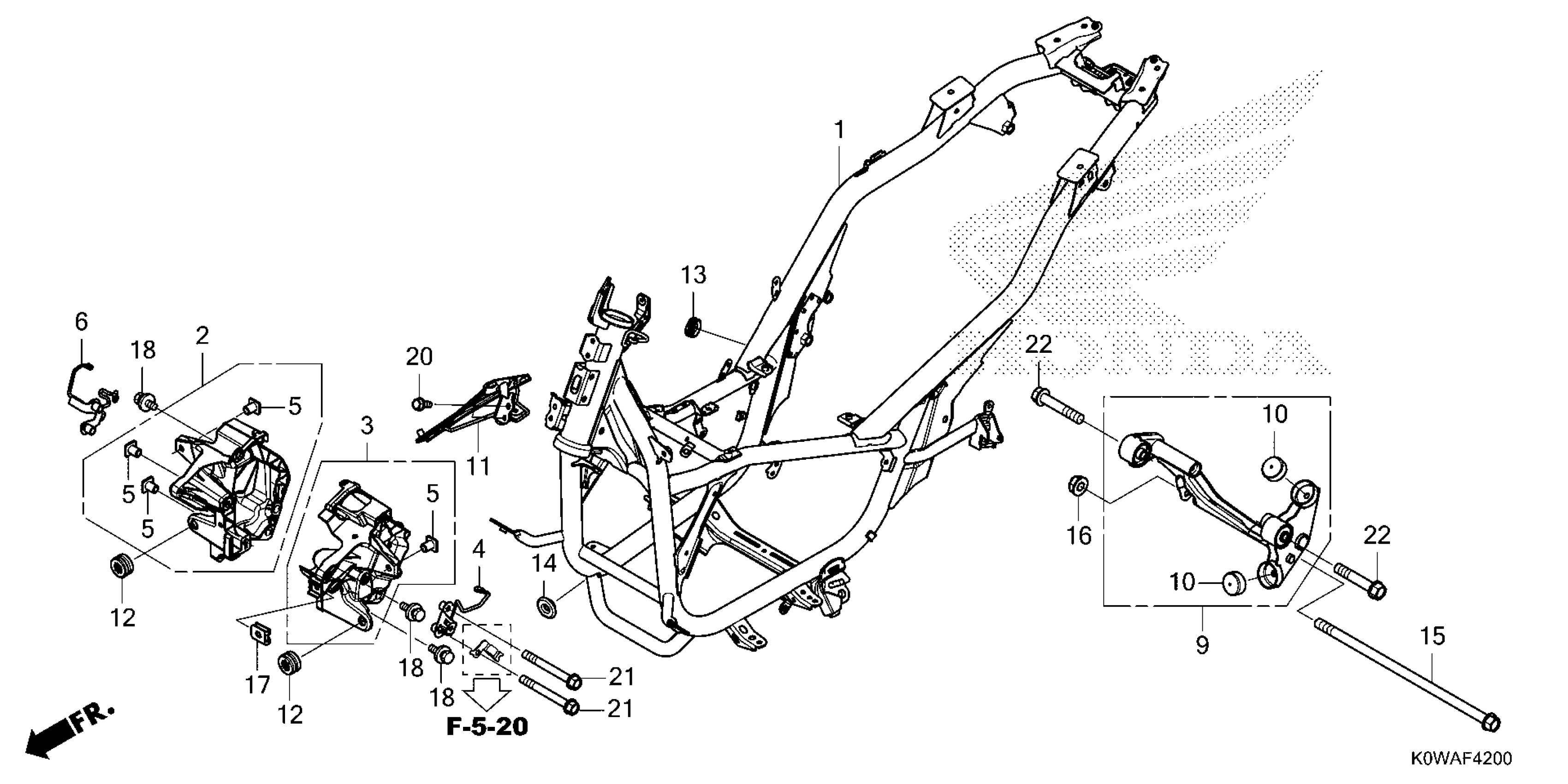

Honda ADV160AAC (24) MOTOR SCOOTER, THA, VIN# MLHKF545-R5000001 TO MLHKF545-R5099999 FRAME Diagram

FRAME

50100-K0W-TA0

$355.91

STAY, R. FR. COVER

50311-K0W-N00

$40.84

STAY, L. FR. COVER

50312-K0W-N00

$37.09

GUIDE, BRAKE HOSE

50313-K1Z-J10

$2.61

NUT, FR. COVER STAY

50315-K97-T00

$1.17

COLLAR COMP, FR.

50316-K0W-NA0

$8.06

LINK, ENG HANGER

50350-K0W-NA0

$230.03

RUBBER, STOPPER

50352-K40-A00

$1.46

STAY COMP, ECU

50622-K0W-NA0

$27.14

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

GROMMET, SEAT LOCK CABLE

77250-K01-900

Unavailable

GROMMET, SIDE COVER

83551-376-000

Unavailable

BOLT, FLANGE (10X255)

90105-K0R-V00

$2.57

NUT, U (10MM)

90304-KGH-901

$2.94

NUT, CLIP (6MM)

90305-GEE-710

$1.48

BOLT-WASHER (6X12)

93404-06012-07

$1.48

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.48

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

BOLT, FLANGE (8X70)

95801-08070-08

$2.62

BOLT, FLANGE (10X55)

95801-10055-00

$1.28
