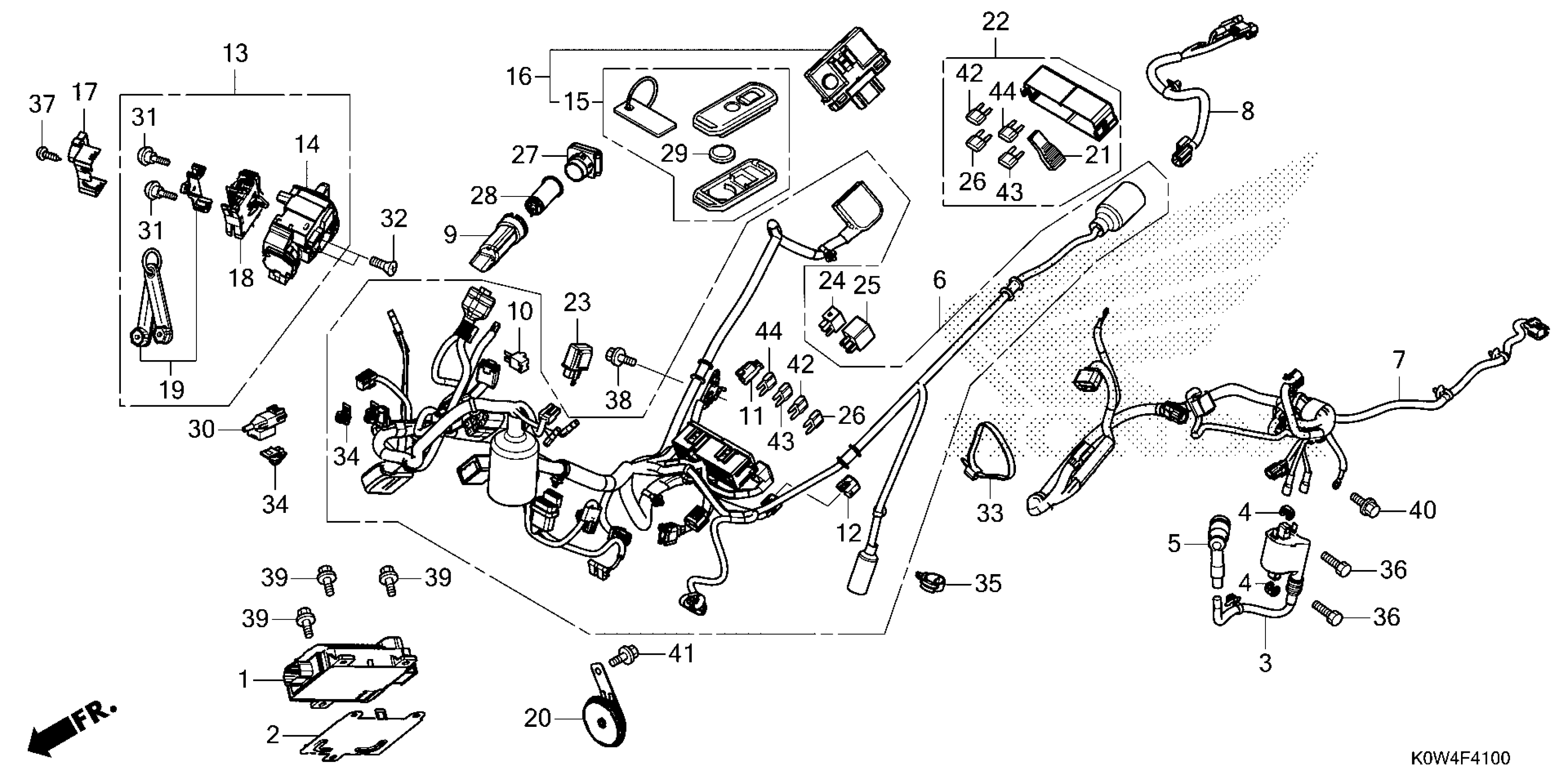

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 WIRE HARNESS@FOB KEY Diagram

#

Description
Price

1

CONTROL UNIT, ENGINE

30400-K0W-A11

$383.79

2

COVER, ENGINE CONTROL UNIT

30401-K35-V00

$1.87

3

COIL, IGNITION

30510-K35-V01

$14.71

4

SPACER, IGNITION COIL

30520-GFM-900

$2.61

5

CAP ASSY., NOISE SUPPRESSOR (NGK)

30700-KWN-711

$29.82

6

WIRE HARNESS

32100-K0W-A11

$736.07

7

SUB-HARNESS, ENGINE

32104-K0W-N00

$74.64

8

SUB-HARNESS, RR.

32105-K0W-N00

$14.57

9

COVER, ACCESSORY SOCKET

32107-K04-930

$3.97

10

CONNECTOR, DIODE (2P)

32146-SH3-003

$18.39

11

CAP, DUMMY (2P) (BLUE)

32605-KCW-J91

$5.26

12

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

13

SWITCH, HANDLE LOCK

35100-K0W-A12

$185.34

14

SWITCH, HANDLE LOCK

35101-K0W-A11

$160.74

15

FOB ASSY.

35111-K0W-A12

Unavailable

15

FOB ASSY.

35121-K0W-A12

$107.89

16

CONTROL UNIT, SMART This part replaces 35141-K0W-A11.

35141-K0W-A12

$298.20

16

CONTROL UNIT, SMART

35141-K0W-A12

$298.20

17

COVER, CABLE

35191-K53-D01

$4.59

18

SWITCH, SEAT OPENER

35193-K0R-V01

$10.21

19

KEY SET, EMERGENCY

35194-K1Z-J11

$23.93

20

HORN (LOW)

38120-K0W-H11

$22.98

21

PULLER, MINI FUSE

38235-SNA-A01

$3.84

22

COVER (UPPER)

38255-K97-A11

$7.26

23

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

24

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$6.31

25

RELAY, POWER (PANASONIC)

38502-KWN-701

$34.93

26

MINI FUSE (2A)

39214-HAC-000

$1.49

27

CAP ASSY.

39602-K41-N21

$6.48

28

SOCKET ASSY.

39624-K41-N21

$19.00

29

BATTERY (CR2032) (NOT AVAILABLE) (MSDS)

72148-S04-000

$7.26

30

SENSOR ASSY., AMBIENT

80525-TBA-A01

$12.87

31

SCREW, OPENER SET

90104-K53-D01

$1.49

32

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.84

33

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

34

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

35

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.56

36

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

37

SCREW, TAPPING (4X12)

93901-24320

$1.49

38

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

39

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

40

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

41

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

42

FUSE F (7.5A) (MINI)

98200-40750

$1.49

43

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

44

FUSE, MINI (25A)

98200-42500

$1.51
