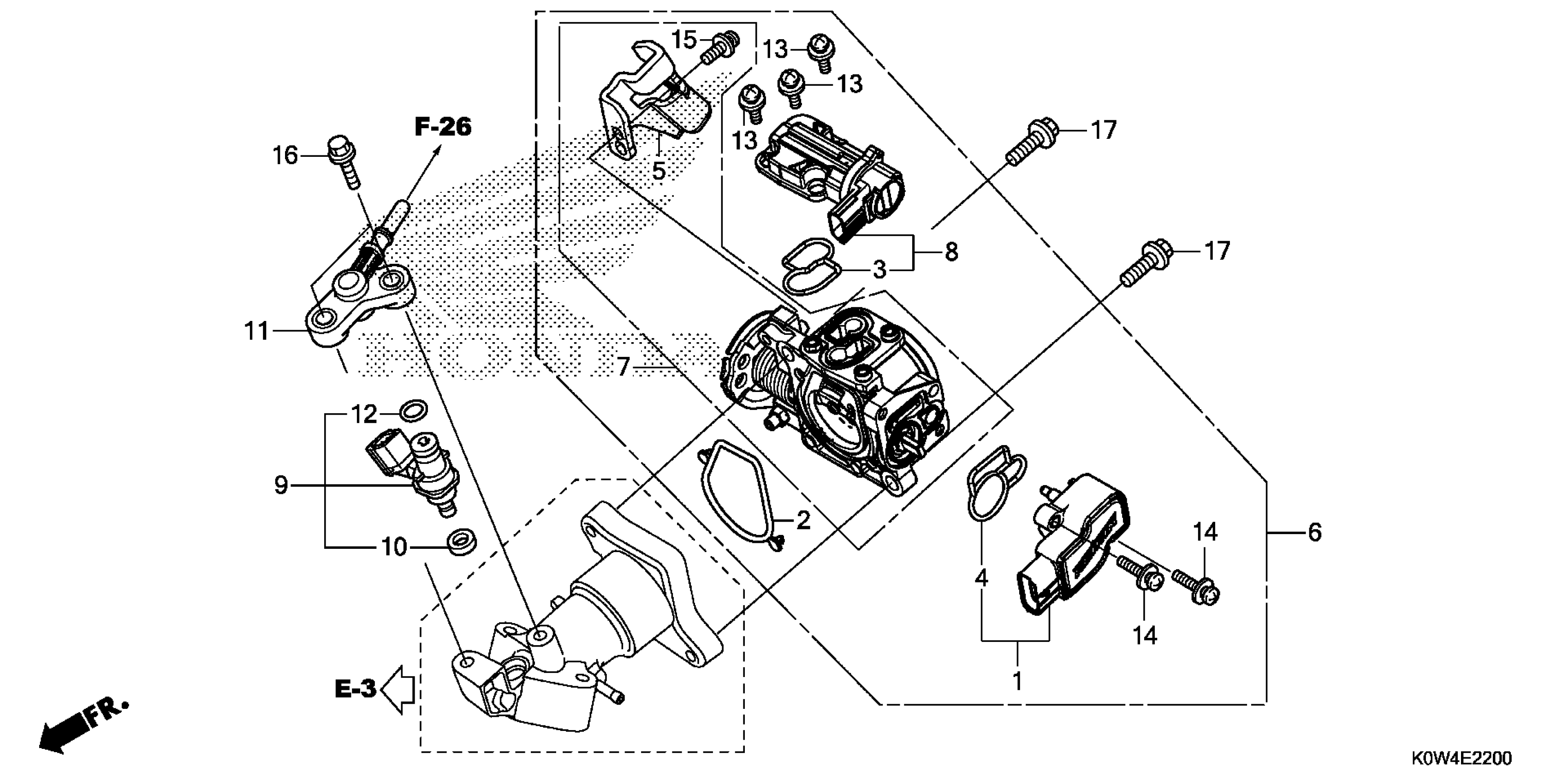

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 THROTTLE BODY@FUEL INJECTOR Diagram

SENSOR SET

16060-K35-V01

$72.82

O-RING, THROTTLE BODY

16075-K36-J01

$3.61

O-RING

16076-K35-V01

$2.38

O-RING

16077-K35-V01

$3.78

STAY, WIRE

16169-K46-N21

$15.68

THROTTLEBODY ASSY.

16400-K97-T01

$191.19

BODY SET

16410-K97-T01

$109.03

IACV SET

16430-K97-T01

$82.23

INJECTOR ASSY., FUEL

16450-K98-E01

$37.54

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.04

JOINT, INJECTOR

17565-K01-900

$23.52

O-RING (6.3X2.2)

91301-GGL-J01

$9.39

SCREW-WASHER (4X10)

93891-04010-08

$1.04

SCREW-WASHER (4X10) This part replaces 93891-04010-18.

93891-04010-08

$1.04

SCREW-WASHER (4X16)

93891-04016-08

$1.04

SCREW-WASHER (4X16) This part replaces 93891-04016-18.

93891-04016-08

$1.04

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
