Description

Price

1

SHOE SET, BRAKE (JB)

06430-KWN-900

$19.89

2

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$3.97

3

COLLAR, RR. WHEEL SIDE

42311-KSV-J00

$18.61

4

COLLAR B, RR. WHEEL SIDE

42312-K0W-T00

$8.16

5

COLLAR, RR. AXLE

42313-K0W-T00

$14.17

6

WHEEL SUB-ASSY., RR. NH303M (MAT AXIS GRAY METALLIC)

42650-K0W-A10ZA

$244.90

7

TIRE, RR. (130/70-13 M/C 57P) (IRC)

42711-K0W-T01

$66.67

8

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$0.51

8

VALVE, RIM

42753-K38-901

$0.51

9

CAM, RR. BRAKE

43141-KVB-900

$11.19

10

SPRING, BRAKE SHOE (THIS APPLICATION-FRONT)

43151-329-000

$2.62

11

ARM COMP, RR. BRAKE

43410-K97-T00

$3.04

12

NUT B, BRAKE ROD ADJUSTING This part replaces 43459-GN5-760.

95015-42000

$1.75

12

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

13

SPRING, RR. BRAKE ARM

43472-K97-T00

$2.52

14

SWINGARM ASSY.

52100-K0W-A10

$109.19

15

BOLT, FLANGE (6X35)

90112-K97-T00

$1.06

16

NUT, U (16MM)

90305-KWN-701

$5.10

17

CIRCLIP (INNER) (40MM)

90651-KZR-601

$0.77

18

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$17.14

19

DUST SEAL (25X40X5)

91252-K35-V01

$1.96

20

DUST SEAL (25X35X6)

91253-K35-V01

$1.91

21

WASHER, PLAIN (10MM)

94101-10000

Unavailable

22

JOINT B, BRAKE ARM

95015-32001

$0.86

23

BOLT, FLANGE (10X40)

95701-10040-00

$1.38

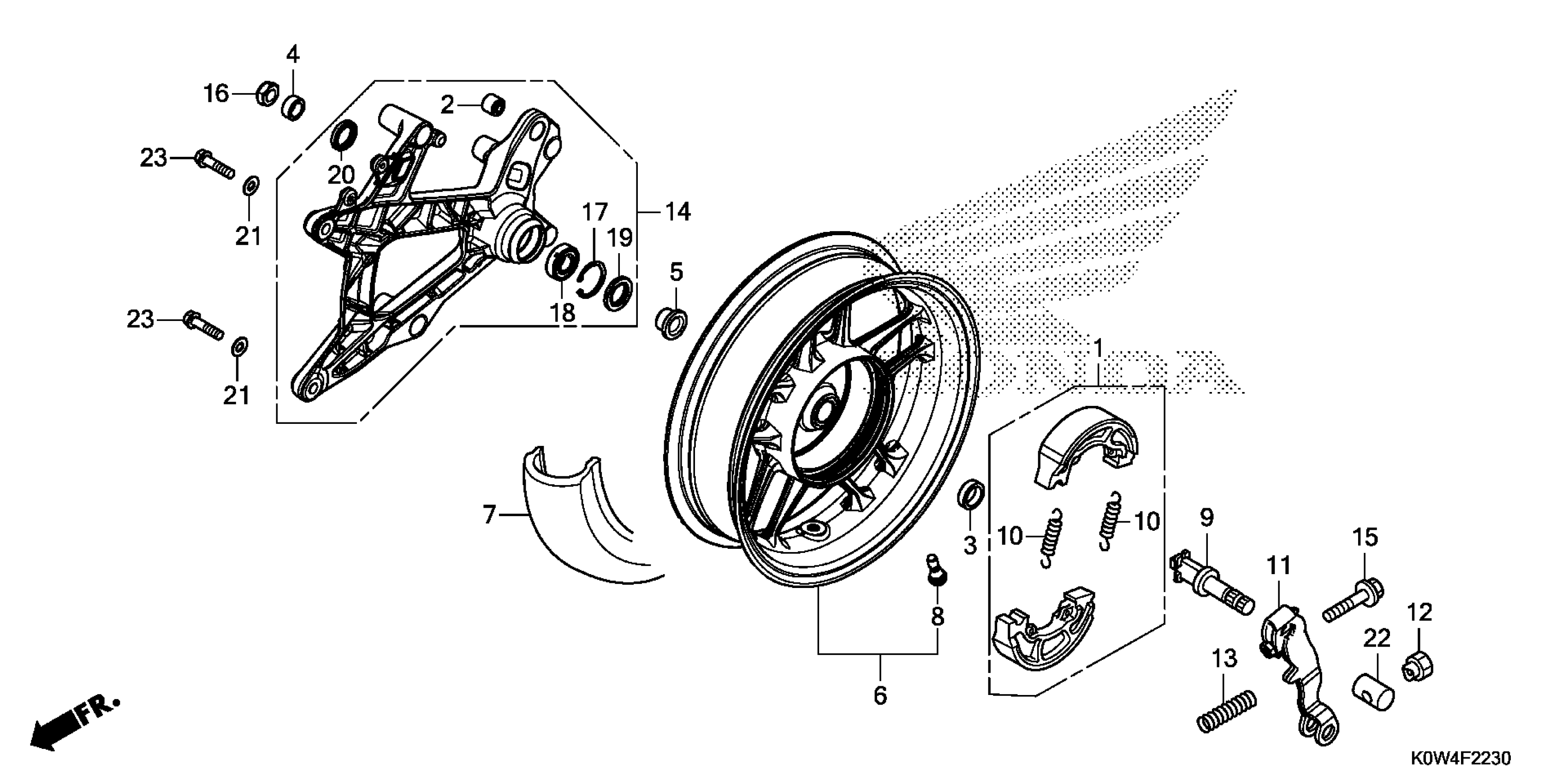

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 REAR WHEEL@SWINGARM Diagram
