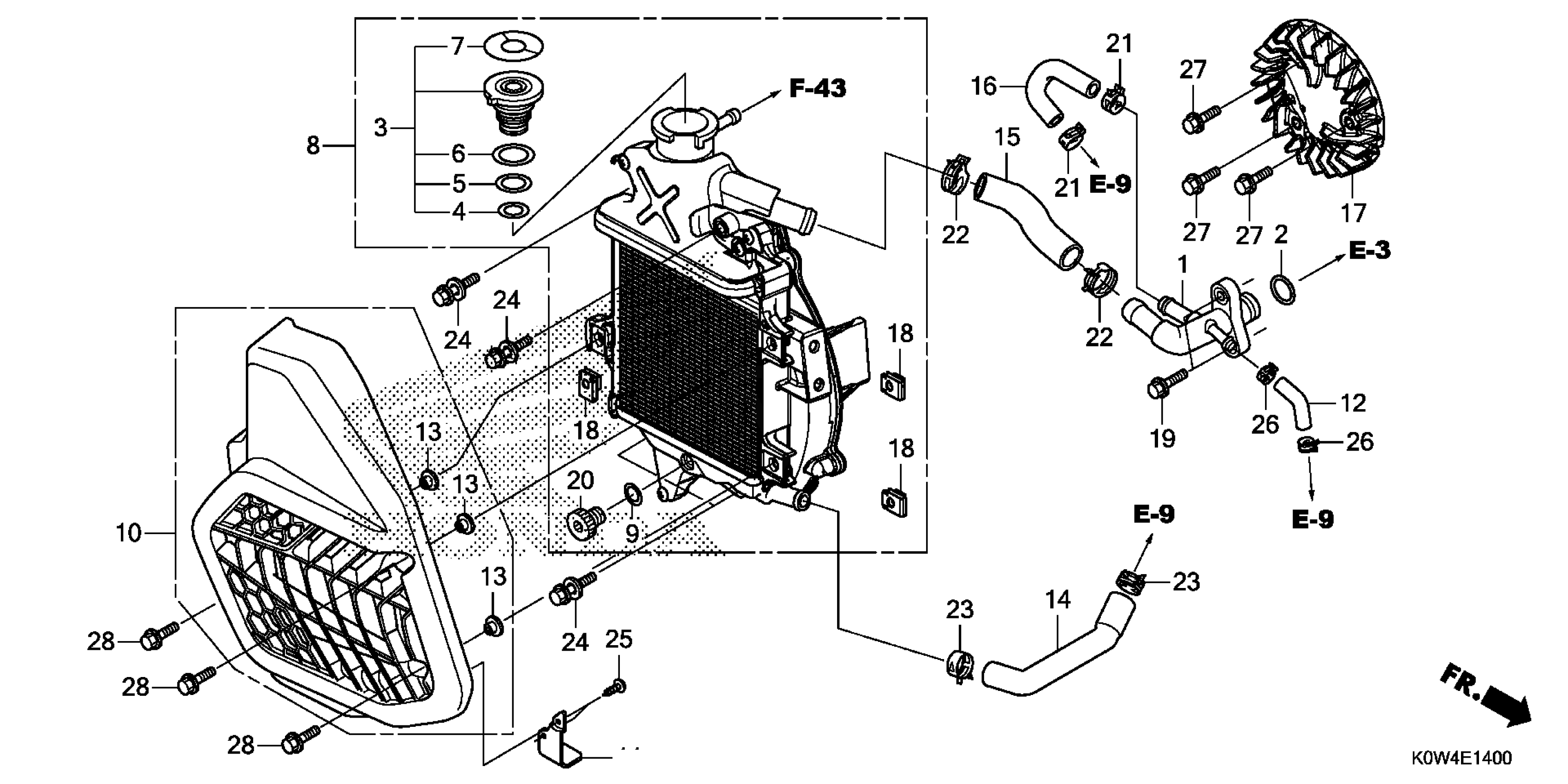

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 RADIATOR Diagram

#

Description
Price

1

JOINT, WATER HOSE

12206-KZR-600

$20.10

2

O-RING (15.4X2)

12207-KWN-900

$1.49

3

CAP, RADIATOR

19037-K12-941

$67.03

4

O-RING A

19049-K27-V51

$1.87

5

O-RING B

19051-K27-V51

$1.87

6

O-RING C

19052-K27-V51

$1.87

7

LABEL, RADIATOR CAP

19055-K12-941

$5.18

8

RADIATOR ASSY.

19100-K97-J00

$59.66

9

SEAL, DRAIN

19109-GET-003

$2.26

10

COVER, RADIATOR

19150-K0W-N00

$13.05

11

STAY, HEAT GUARD

19152-K12-900

$2.66

12

TUBE, AIR BREATHER

19332-KWN-900

$1.49

13

COLLAR

19416-KEY-900

$1.49

14

HOSE A, WATER

19501-KZR-600

$6.57

15

HOSE B, WATER

19502-KZR-600

$7.56

16

HOSE, BYPASS

19504-KZR-600

$8.90

17

FAN COMP, COOLING

19510-K97-T00

$3.51

18

NUT, FENDER SETTING

84601-HA7-670

$5.54

19

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

20

BOLT, DRAIN

90103-GET-003

$4.08

21

CLIP, HOSE

90678-MR1-690

$2.25

22

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$1.49

23

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.66

24

BOLT-WASHER (6X25)

93401-06025-08

$1.78

25

SCREW, TAPPING (4X12)

93903-24320

$1.49

26

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

27

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

28

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
