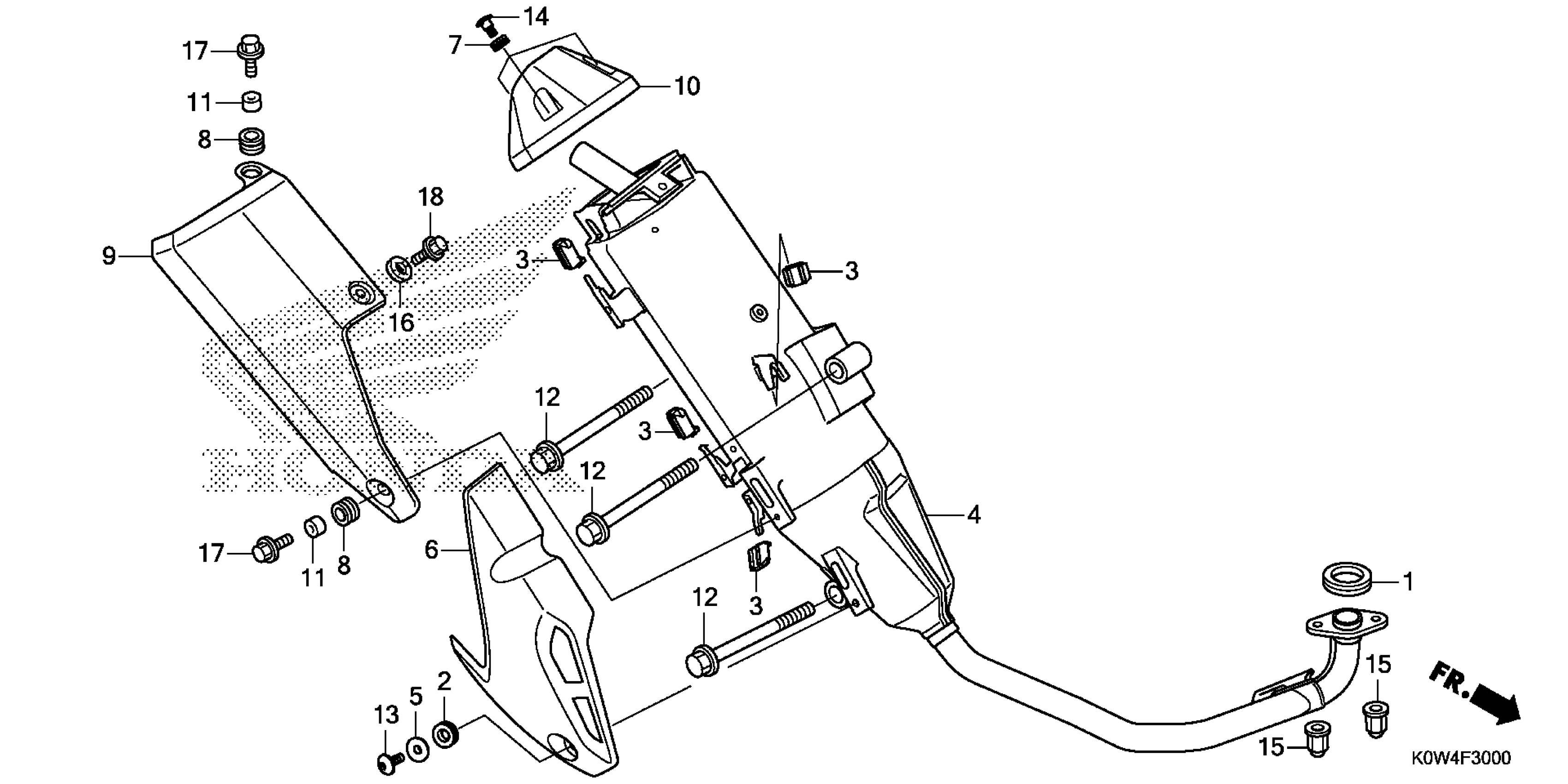

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-GE2-921

$1.74

2

RUBBER, PROTECTOR GASKET

18293-KSB-900

$1.46

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.87

4

MUFFLER, EX.

18300-K0W-T00

$709.13

5

COLLAR, MUFFLER PROTECTOR

18316-KVB-900

$1.65

6

PROTECTOR, MUFFLER

18318-K0W-N00

$9.82

7

RUBBER, MOUNT

18345-K15-920

$2.59

8

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

9

COVER A, MUFFLER

18358-K0W-N00

$86.17

10

CAP, TAIL

18359-K0W-T00

$14.48

11

COLLAR, TURN SIGNAL STAY

33619-459-840

$2.33

12

BOLT, FLANGE (10X65)

90105-K0W-T00

$1.65

13

BOLT, SPECIAL (6X16)

90107-K26-900

$0.97

14

SCREW, PAN (6X14)

90113-K15-920

$1.29

15

NUT, CAP (7MM)

90304-MJ0-920

$4.60

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

17

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

18

BOLT, FLANGE (6X8)

96001-06008-00

$0.93
