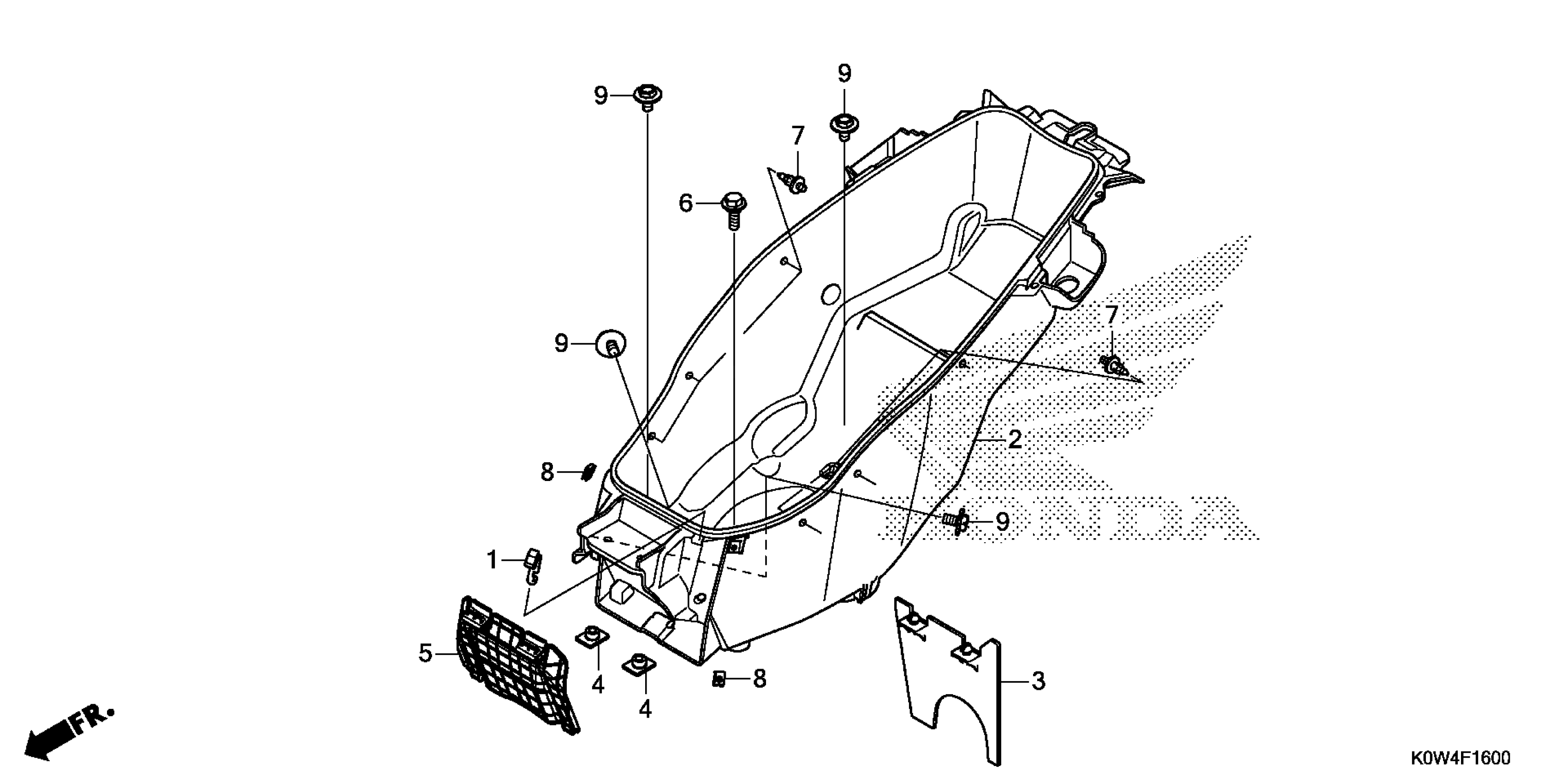

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 LUGGAGE BOX Diagram

#

Description
Price

1

HOOK, HELMET

77106-K35-V00

$1.51

2

BOX, LUGGAGE

81250-K0W-N00

$53.16

3

SPLASH GUARD, RR.

81265-K0W-N00

$5.78

4

NUT, SPECIAL (6X7)

81321-K97-T00

$1.19

5

COVER, BATTERY

81322-K97-T00

$3.06

6

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.83

7

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

8

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

9

BOLT-WASHER (6X12)

93404-06012-00

$1.50
