Description

Price

1

CABLE A, THROTTLE

17910-K0W-T01

$75.22

2

CLAMP

17912-K97-T00

$2.07

3

CLAMP B, THROTTLE CABLE

17913-K35-V00

$0.78

4

CABLE B, THROTTLE

17920-K0W-T01

$22.50

5

E-RING (3MM)

30158-GW3-980

$1.00

6

SWITCH ASSY., STARTER & HAZARD & ENGINE STOP

35130-K0W-A12

$81.44

7

SWITCH ASSY., DIMMER & HORN & TURN SIGNAL

35200-K0W-A12

$67.72

8

SWITCH ASSY., RR. STOP

35345-K35-V01

$14.71

9

CABLE, RR. BRAKE

43450-K0W-A11

$30.06

10

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

11

GRIP, THROTTLE

53140-K0W-N00

$5.31

12

GRIP, L. HANDLE (COO)

53166-KWN-305

$7.09

12

GRIP, L. HANDLE (COO) This part replaces 53166-KWN-900.

53166-KWN-305

$7.09

13

BRACKET, L. HANDLE LEVER

53172-K97-A10

$49.07

14

BOOT, L. LEVER

53177-K97-A10

$136.91

15

LEVER, L. HANDLEBAR

53178-K0W-A10

$13.61

16

LEVER, BRAKE LOCK

53181-K0W-A10

$50.00

17

SPRING, LEVER RETURN

53182-KVB-900

$0.54

18

PIN, BRAKE LOCK LEVER PIVOT

53183-K97-A10

$30.18

19

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$0.82

20

BOLT, HANDLE LEVER PIVOT

90115-KWN-700

$0.32

21

NUT, HEX. (5MM)

90302-435-761

$2.06

22

BAND, WIRE HARNESS

90652-K35-V00

$1.09

23

CLIP, WIRE HARNESS

90683-KJ2-003

$3.40

24

CLAMP, HARNESS

90690-MEF-800

$1.21

25

SCREW-WASHER (5X20)

93892-05020-07

$0.79

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

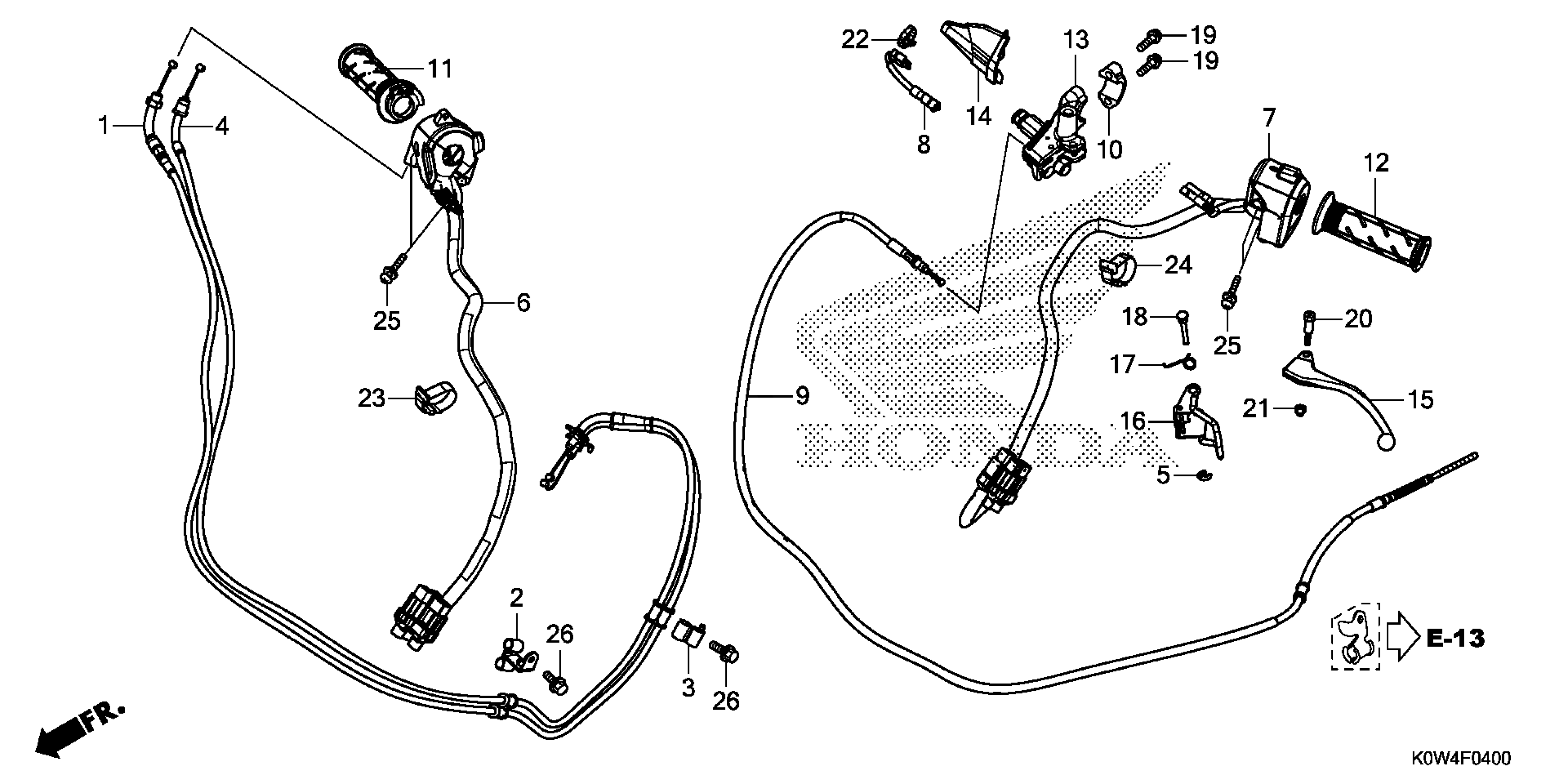

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 HANDLE SWITCH@CABLE Diagram
