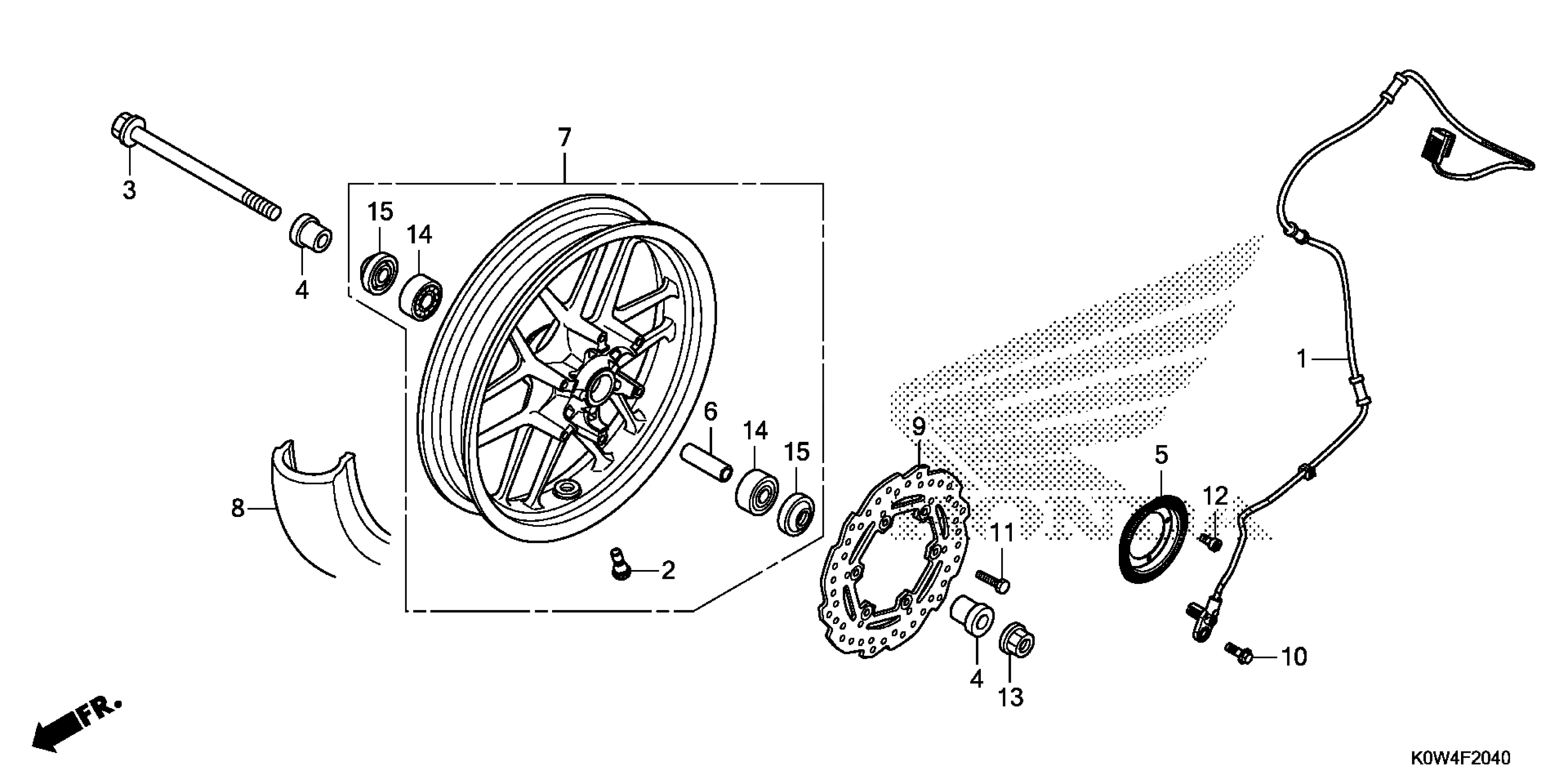

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 FRONT WHEEL Diagram

SENSOR, FR. WHEEL SPEED

38520-K0W-N11

$31.99

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$0.51

VALVE, RIM

42753-K38-901

$0.51

AXLE, FR. WHEEL

44301-K0W-N00

$5.90

COLLAR, FR. WHEEL SIDE

44311-K0W-T00

$5.56

RING, FR. PULSER

44515-K26-C10

$24.58

COLLAR, FR. AXLE DISTANCE

44620-K0W-N00

$6.88

WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC)

44650-K0W-T00ZA

$188.44

TIRE, FR. (110/80-14M/C 53P) (IRC)

44711-K0W-T01

$55.92

DISK, FR. BRAKE

45351-K0W-T01

$71.51

BOLT, FLANGE (6X18)

90105-K77-V10

$0.60

BOLT, DISK (6X17)

90105-KZZ-900

Unavailable

BOLT, TORX (5X10)

90131-K64-N10

$2.15

NUT, U (12MM)

90306-KWN-701

$3.87

BEARING, RADIAL BALL (6201U L) (NSK)

91052-K24-901

$4.15

BEARING,BALL RADI

91052-K24-904

$3.71

DUST SEAL (21X32X5) (ARAI)

91251-KZR-601

$1.26
