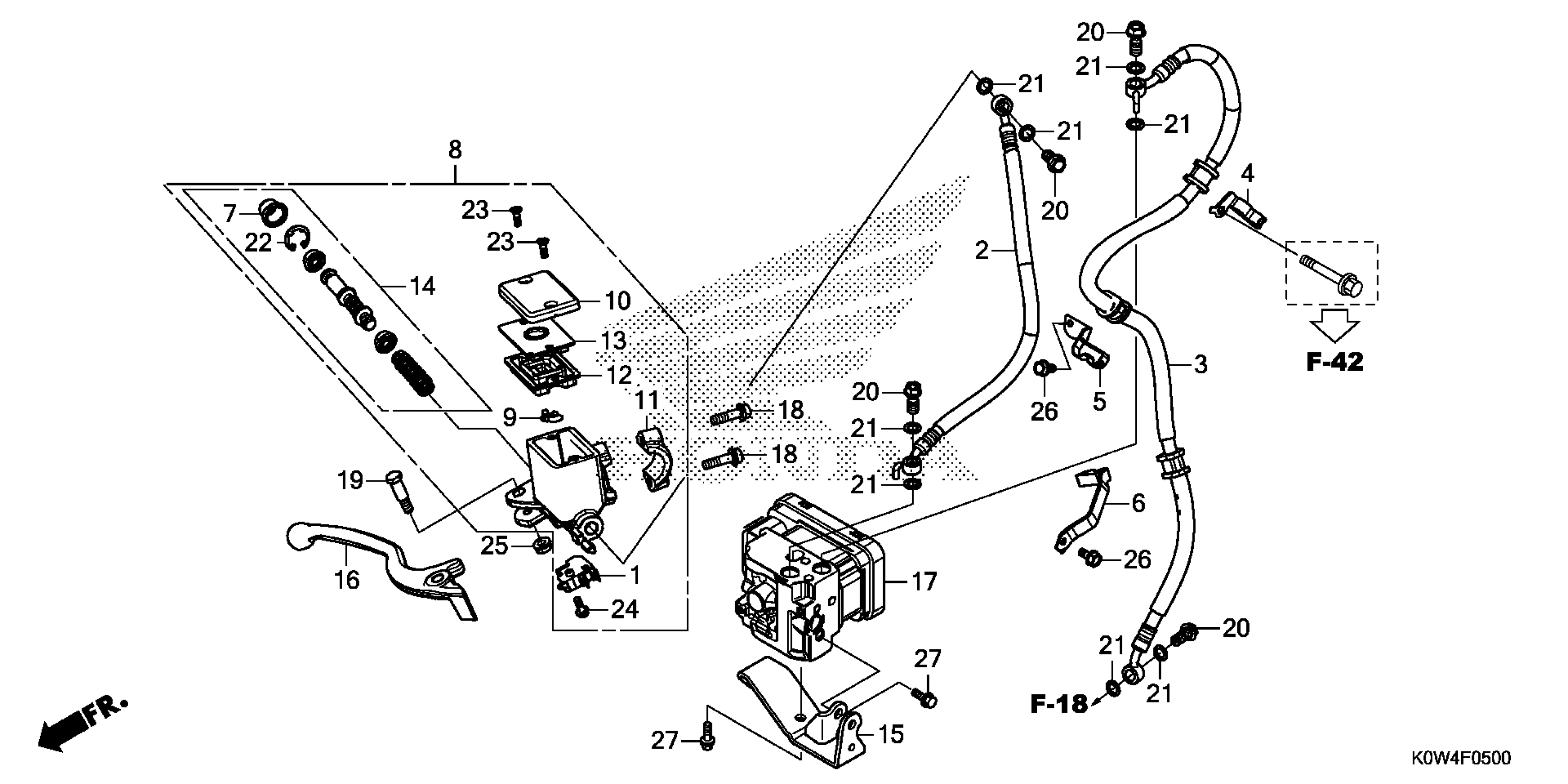

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE A, FR. BRAKE

45126-K0W-N11

$14.46

3

HOSE B, FR. BRAKE

45127-K0W-N11

$22.43

4

CLAMP A, FR. BRAKE HOSE

45156-K97-J10

$3.29

5

CLAMP B, FR. BRAKE HOSE

45157-K97-J10

$3.79

6

CLAMP C, FR. BRAKE HOSE

45158-K0W-T00

$4.94

7

BOOT

45504-410-003

$11.17

8

MASTER CYLINDER SUB-ASSY., FR.

45510-K97-N01

$97.35

9

PROTECTOR

45512-MA6-006

$4.09

10

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

11

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

12

DIAPHRAGM

45520-MG7-006

$9.73

13

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

14

MASTER CYLINDER SET

45530-471-831

$36.42

15

STAY, ABS MODULATOR

50316-K97-J10

$8.07

16

LEVER, R. HANDLEBAR

53175-KYT-922

$14.74

17

MODULATOR ASSY.

57110-K0W-N11

$1,020.85

18

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$0.82

19

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

21

WASHER, OIL BOLT

90545-300-000

$5.79

22

CIRCLIP

90651-MA5-671

$2.38

23

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

24

SCREW-WASHER (4X12)

93893-04012-07

$1.32

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.79
