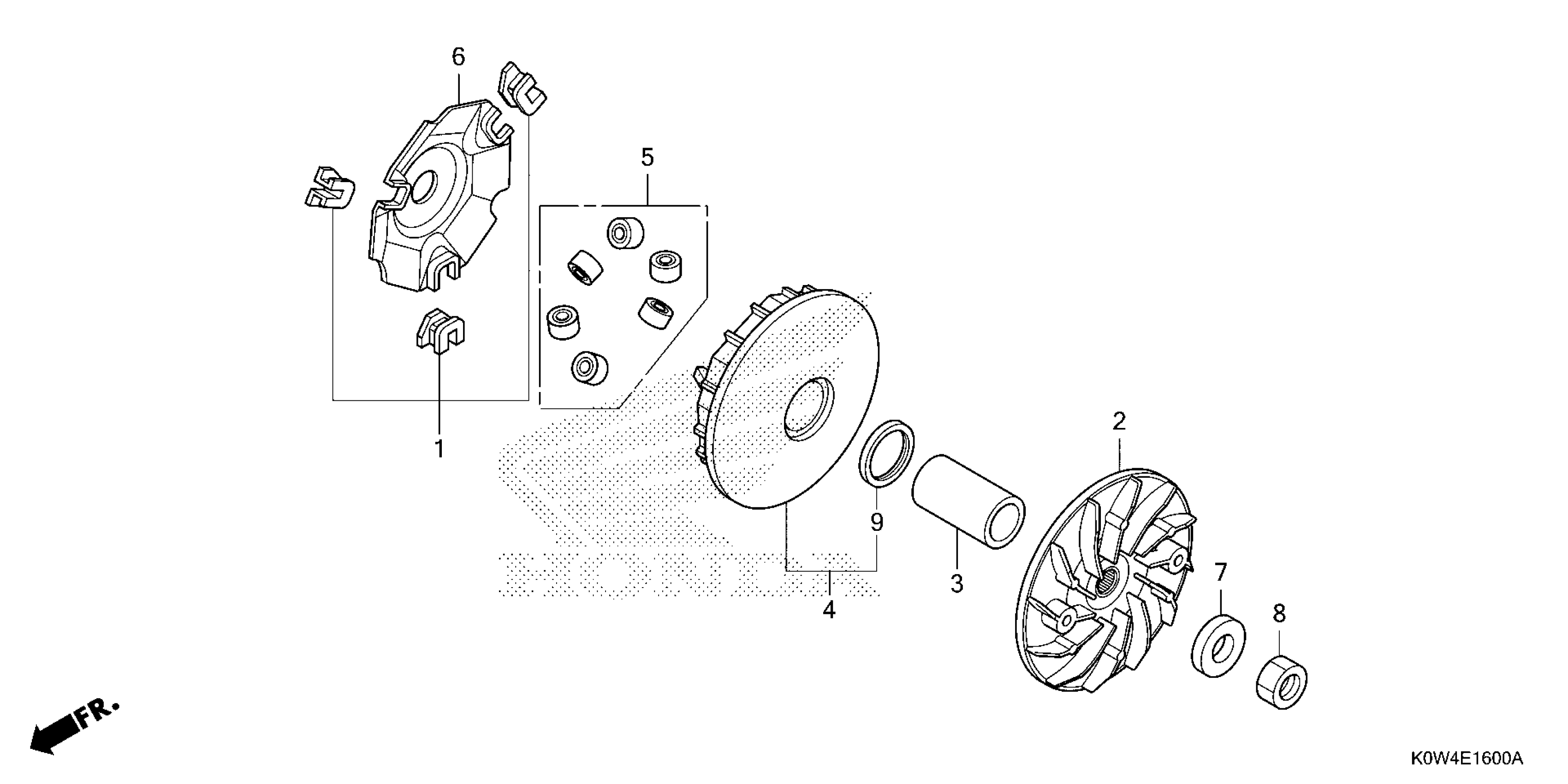

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 DRIVE FACE Diagram

#

Description
Price

1

PIECE SET, SLIDE

22011-KWN-900

$3.28

2

FACE, DRIVE

22102-K97-T01

$5.84

3

BOSS, DRIVE FACE

22105-K97-T00

$8.53

4

FACE COMP

22110-K97-T00

$18.04

5

ROLLER SET, WEIGHT

22123-K97-B00

$25.57

6

PLATE, RAMP

22131-K40-F00

$5.58

7

WASHER (15X25.8X4)

90401-K48-A00

$3.41

8

NUT, HEX. (14MM)

94030-14200

$1.23

9

OIL SEAL (24X31X3.5)

91203-K35-V01

$1.35
