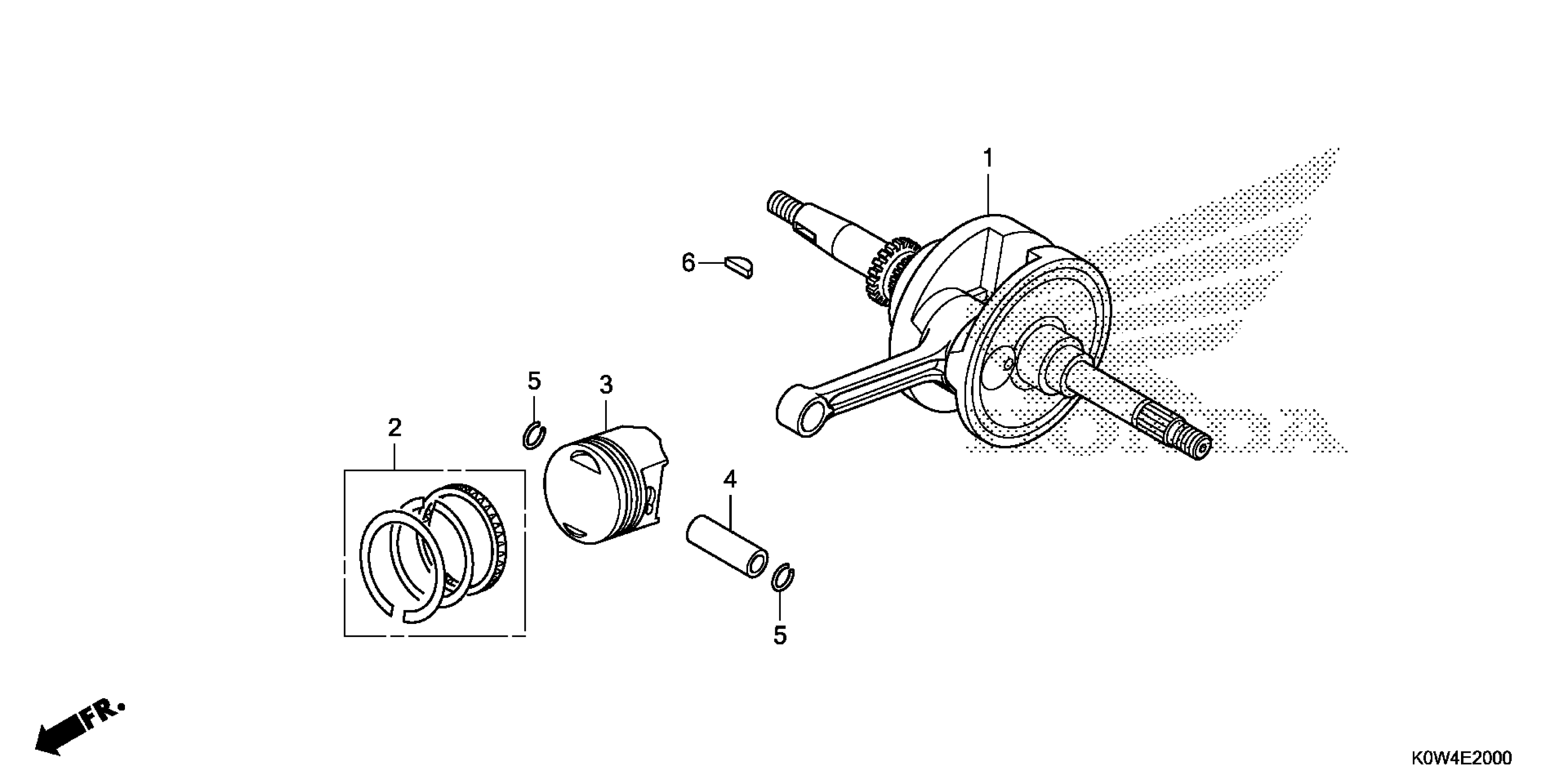

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 CRANKSHAFT@PISTON Diagram

#

Description

Price

1

CRANKSHAFT

13000-K97-T00

$141.57

2

RING SET, PISTON (STD)

13011-K59-A70

$6.82

3

PISTON

13101-K97-T00

$24.85

4

PIN, PISTON

13111-K78-V00

$8.60

5

CLIP, PISTON PIN (14MM)

13115-KZY-700

$0.82

6

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.62

6

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.62

6

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.62
