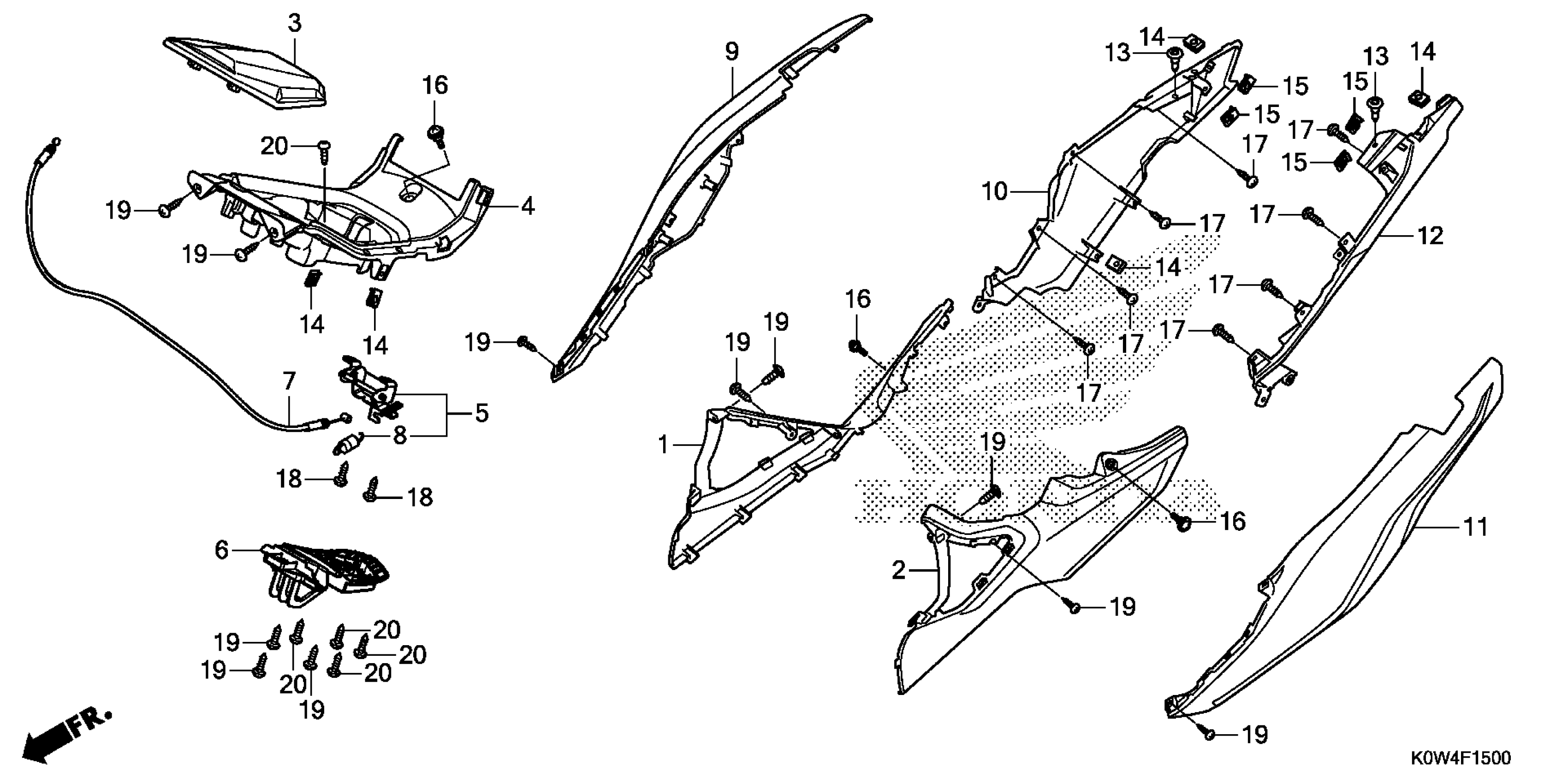

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 BODY COVER Diagram

#

Description
Price

1

COVER, R. CENTER SIDE *NHA35M* (WOL) (ASTEROID BLACK METALLIC)

64350-K0W-N00ZH

$29.91

2

COVER, L. CENTER SIDE *NHA35M* (WOL) (ASTEROID BLACK METALLIC)

64360-K0W-N00ZH

$29.91

3

LID, FUEL *NH1* (BLACK)

64405-K0W-N00ZA

$4.87

4

COVER, CENTER *NH1* (BLACK)

64410-K0W-N00ZA

$12.51

5

LOCK ASSY., FUEL LID

64440-K35-V00

$3.85

6

HINGE ASSY., FUEL LID

64450-K0W-N01

$55.81

7

CABLE COMP, FUEL LID

64455-K97-T01

$5.85

8

SPRING, SEAT LOCK

77234-KRJ-900

$2.87

9

COVER SET, R. BODY *R340C* (WL) (CANDY ROSY RED)

83550-K0W-T10ZD

$53.53

10

COVER, R. BODY SIDE *NH1* (BLACK)

83600-K0W-N00ZA

$13.46

11

COVER SET, L. BODY *R340C* (WL) (CANDY ROSY RED)

83650-K0W-T10ZC

$50.31

12

COVER, L. BODY SIDE *NH1* (BLACK)

83700-K0W-N00ZA

$12.38

13

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

14

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

15

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

16

SCREW, PAN (5X11.5)

91509-GE2-760

$2.19

17

SCREW, TAPPING (4X12)

93903-24310

Unavailable

18

SCREW, TAPPING (5X12)

93903-25220

$0.84

19

SCREW, TAPPING (4X12)

93903-34320

$0.84

20

SCREW, TAPPING (4X12)

93903-34380

$1.96
