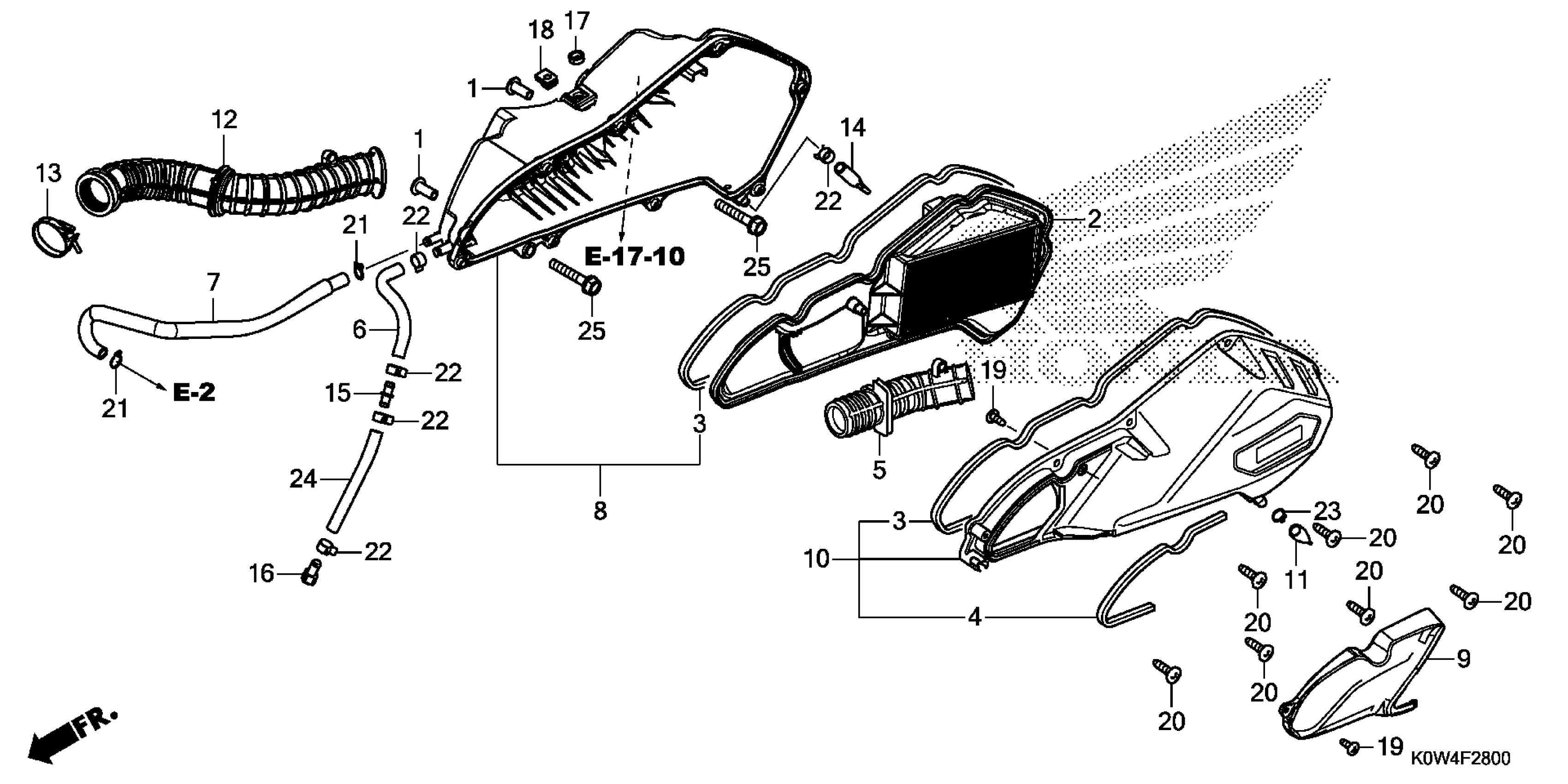

Honda ADV150AAC (23) MOTOR SCOOTER, THA, VIN# MLHKF385-P5200001 AIR CLEANER Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17208-GFM-970

$2.84

2

ELEMENT, AIR CLEANER

17210-K97-T00

$10.63

3

SEAL, AIR/C

17213-K97-T00

$2.92

4

SEAL, AIR/C DUCT

17214-K97-T00

$2.23

5

DUCT, AIR CLEANER

17215-K0W-T00

$11.62

6

TUBE, BREATHER DRAIN

17217-K97-T00

$4.18

7

TUBE, BREATHER

17218-K97-T00

$8.21

8

CASE SUB-ASSY., AIR CLEANER

17225-K0W-T00

$17.51

9

COVER, AIR/C DUCT

17234-K97-T00

$4.79

10

COVER SUB-ASSY., AIR CLEANER

17235-K0W-T00

$17.74

11

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.49

12

TUBE, AIR CLEANER CONNECTING

17253-K0W-T00

$30.85

13

BAND, CONNECTING TUBE (40)

17254-K0W-N00

$3.61

14

TUBE, DRAIN

17261-KVB-T00

$1.49

15

JOINT, BREATHER TUBE

17359-K28-910

$2.92

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

COLLAR, RR. FENDER

80108-K45-N40

$1.49

18

NUT, CLIP (6MM)

90311-MT3-000

$5.78

19

SCREW, TAPPING (4X12)

93903-24380

$1.49

20

SCREW, TAPPING (5X20)

93903-25480

$1.49

21

CLIP, TUBE (B12.5)

95002-02130

$1.49

22

CLAMP, TUBE (D12)

95002-41200-08

$2.34

23

CLIP, TUBE (C12)

95002-80000

$1.49

24

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
