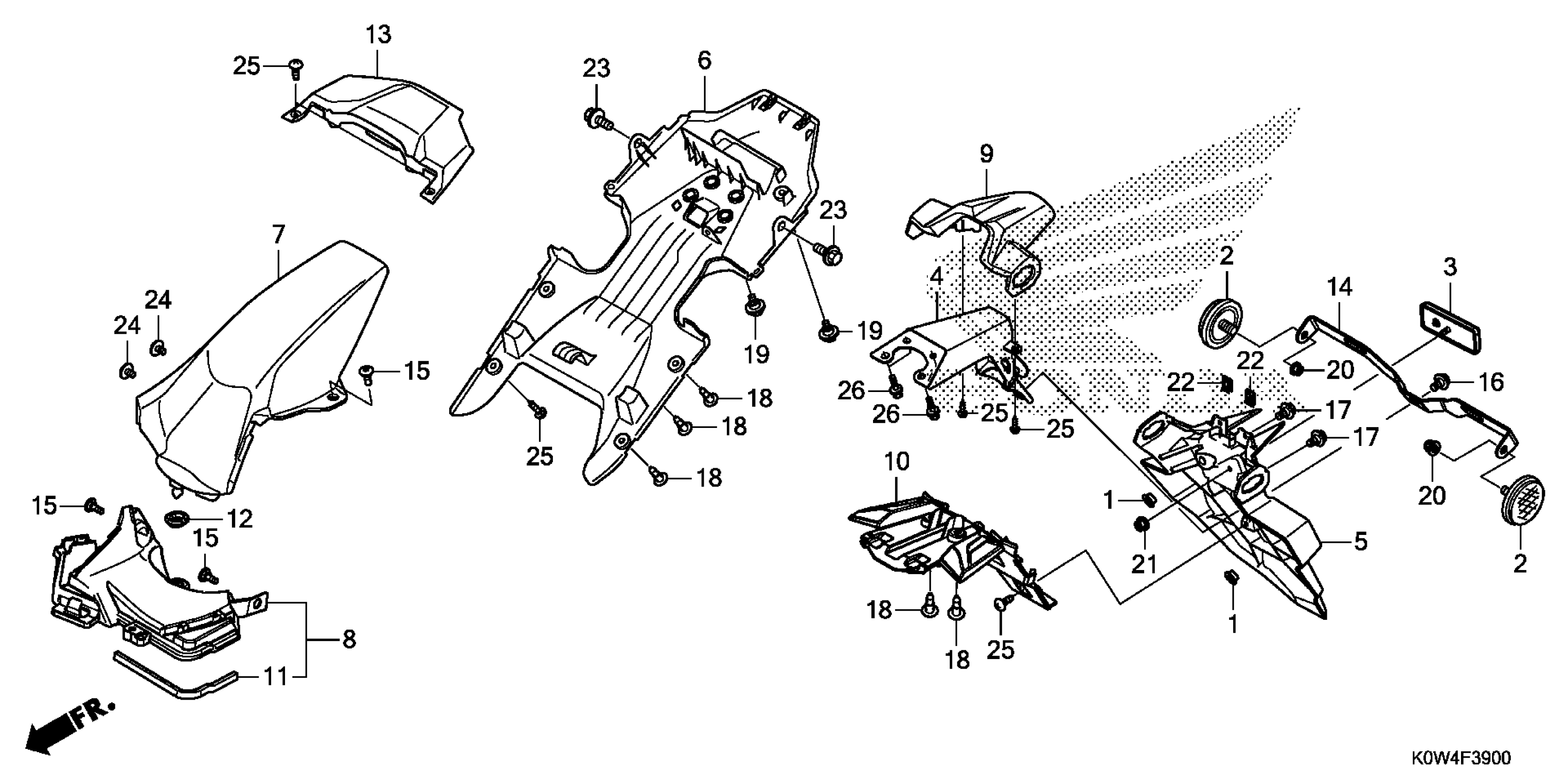

Honda ADV150AAC (22) MOTOR SCOOTER, THA, VIN# MLHKF385-N5100001 TO MLHKF385-N5199999 REAR FENDER Diagram

COLLAR

19416-K36-H00

$1.19

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

REFLECTOR, REFLEX

33741-KWN-901

Unavailable

BRACKET, RR. FENDER *NHA40M* (MAT KRYPTON SILVER METALLIC)

50186-K0W-N00ZA

$123.65

FENDER A, RR.

80101-K0W-J00

$17.59

FENDER B, RR.

80102-K0W-N00

$19.55

FENDER C, RR.

80103-K0W-N00

$13.55

FENDER C, RR. TOP

80105-K97-T00

$7.39

COVER, RR. FENDER (UPPER)

80106-K0W-N00

$4.88

COVER, RR. FENDER (LOWER)

80107-K0W-N00

$5.43

SEAL, RR. FENDER (INNER)

80108-KZR-600

$1.71

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

COVER SET, RR. CENTER (TYPE1) (WL)

83760-K0W-N00ZA

$8.32

BRACKET, NUMBER PLATE

84700-K0W-A10

$30.62

BOLT, SOCKET (6X18)

90101-K29-900

$2.94

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

BOLT, FLANGE (6MM)

90116-KVB-900

$0.90

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

NUT, U (5MM)

90301-KWN-901

$0.61

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

BOLT-WASHER (6X12)

93404-06012-00

$1.48

BOLT-WASHER (6X14)

93404-06014-07

$0.84

SCREW, TAPPING (4X12)

93903-24380

Unavailable

BOLT, FLANGE (6X12)

95701-06012-07

$1.48
