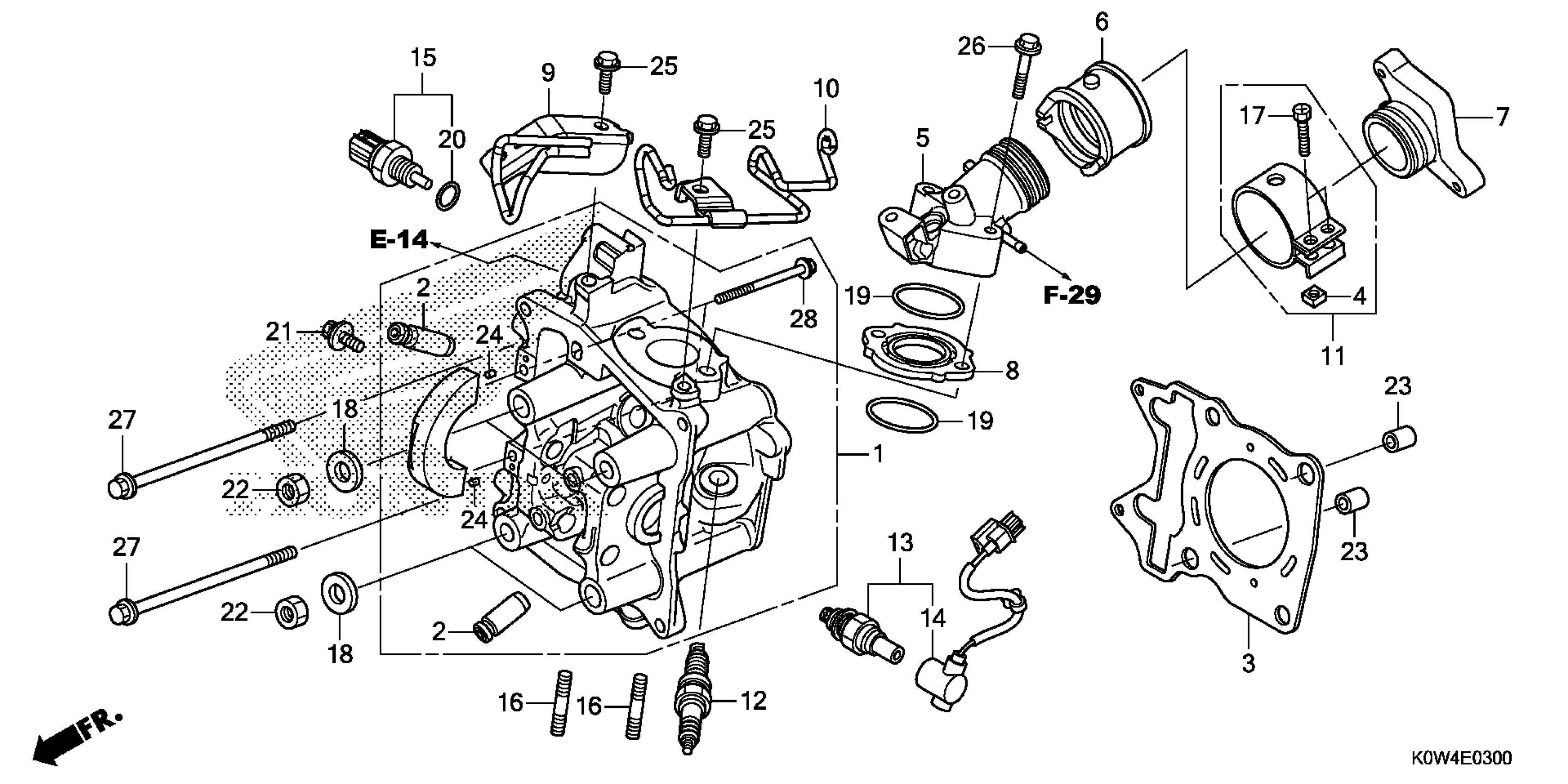

Honda ADV150AAC (22) MOTOR SCOOTER, THA, VIN# MLHKF385-N5100001 TO MLHKF385-N5199999 CYLINDER HEAD Diagram

HEAD ASSY.

12010-K36-T00

$115.46

GUIDE, VALVE (OVER SIZE)

12204-KWN-P00

$10.35

GASKET, CYL HD

12251-K97-T01

$4.72

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

PIPE, INLET

17110-K97-T00

$97.62

INSULATOR, THROTTLE BODY

17112-KZY-700

$12.21

PIPE B, INLET

17115-K77-V00

$11.21

INSULATOR, IN. PIPE

17119-KZY-700

$6.13

STAY COMP

17120-K97-T00

$7.44

CLAMP TUBE BREATHER

17219-K97-T00

$3.80

BAND, INSULATOR

17255-KWN-900

$1.82

SPARK PLUG (MR8K-9)

31918-K97-T01

$4.33

SENSOR, OXYGEN

36532-K01-611

$125.82

WIRE, OXYGEN SENSOR

36533-KZR-601

$39.07

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$9.14

BOLT, STUD (7X17)

90004-KGF-910

$2.11

BOLT, RECESSED (5X22)

90005-MEJ-000

$1.49

WASHER (8MM)

90483-KWN-900

$1.49

O-RING (29X2)

91301-KRJ-901

$3.20

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$3.11

BOLT-WASHER (6X12)

93404-06012-00

$1.55

NUT, HEX. (8MM)

94030-08280

$1.49

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

PIN, DOWEL (3X5)

94303-03050

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X95)

95701-06095-00

$1.92

BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)

96001-06080-00

$2.21
