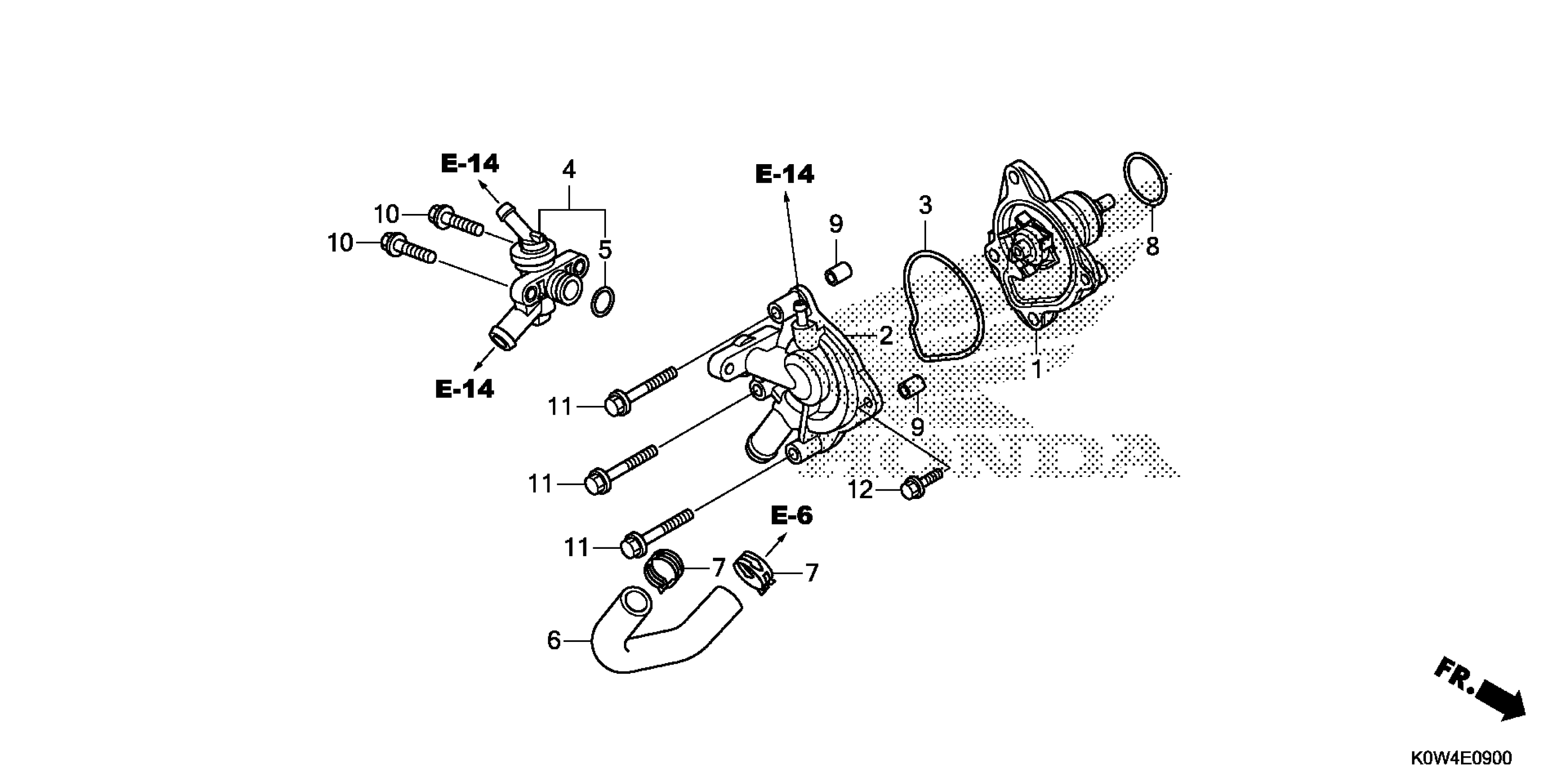

Honda ADV150AAC (21) MOTOR SCOOTER, THA, VIN# MLHKF385-M5000001 TO MLHKF385-M5099999 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP COMP

19210-K66-V00

$60.39

2

COVER, WATER PUMP

19220-KWN-901

$18.25

3

GASKET, WATER PUMP COVER

19226-KWN-900

$1.00

4

THERMOSTAT ASSY.

19300-K35-V01

$20.57

5

O-RING

19310-K35-V01

$0.77

6

HOSE C, WATER

19503-KWN-900

$6.64

7

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$0.75

8

O-RING (34X2)

91302-KWN-900

$0.59

9

PIN A, DOWEL (8X10)

94301-08100

$2.04

10

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

11

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.71

12

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
