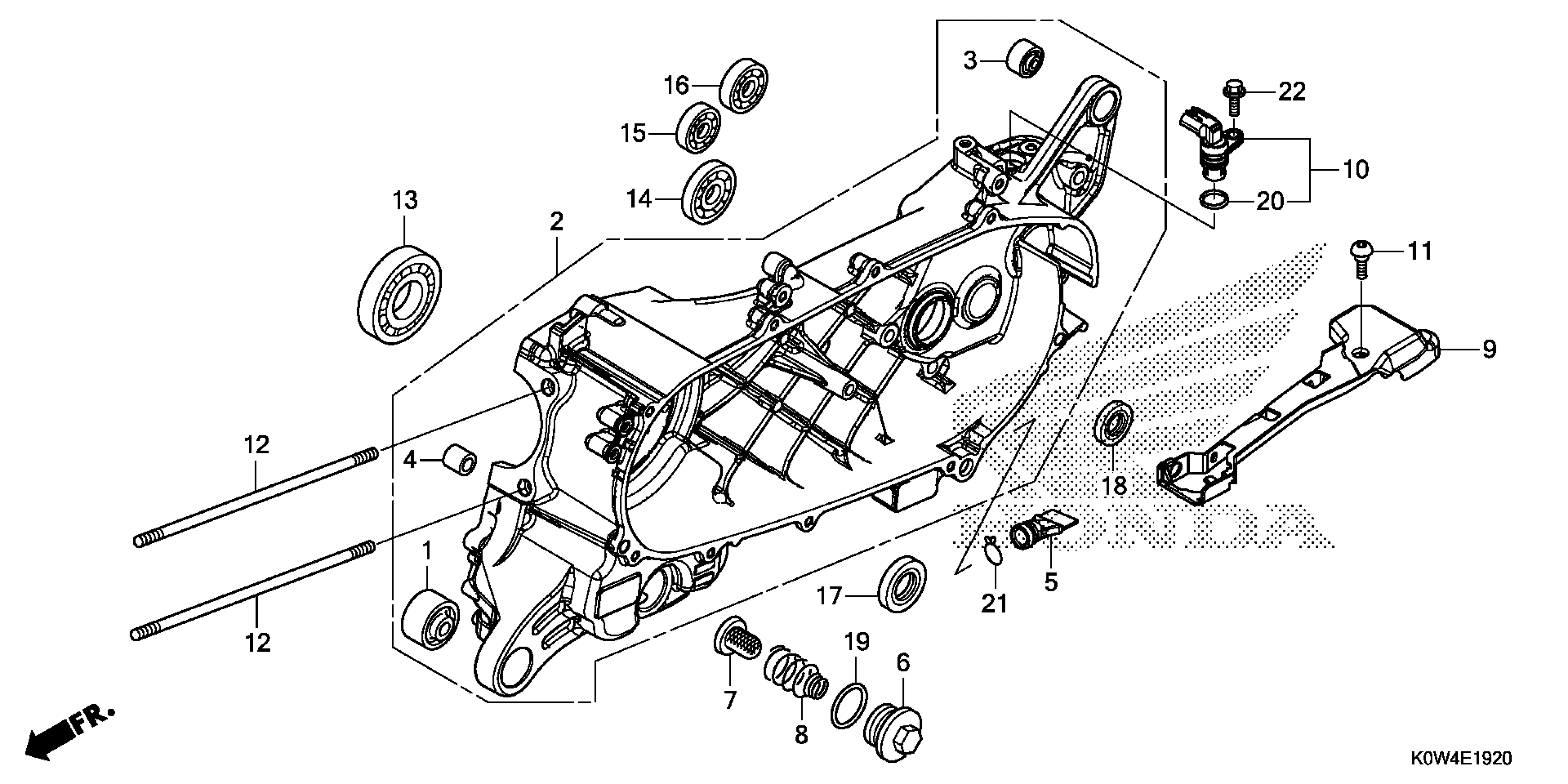

Honda ADV150AAC (21) MOTOR SCOOTER, THA, VIN# MLHKF385-M5000001 TO MLHKF385-M5099999 LEFT CRANKCASE Diagram

#

Description
Price

1

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

11103-KVB-901

$3.67

2

CRANKCASE, L.

11200-K0W-N00

$244.82

3

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$4.49

4

BUSH, MAIN STAND

11205-GBC-300

$1.49

5

TUBE, DRAIN

11343-KVG-900

$1.49

6

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

6

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

7

SCREEN, OIL FILTER

15421-KPL-900

$1.64

8

SPRING, OIL FILTER SCREEN

15426-KVB-900

$1.64

9

PROTR, SP SENSOR

32112-K97-T00

$8.77

10

SENSOR ASSY., SPEED

37700-K12-V01

$20.70

11

BOLT, SOCKET (6X18)

90001-KWR-000

$1.49

12

BOLT B, STUD (8X206)

90032-KWN-900

$2.30

13

BEARING, RADIAL BALL SPECIAL (6207) (FUJIKOSHI)

91002-KZR-602

$18.72

13

BEARING, RADIAL BALL SPECIAL (6207) (FUJIKOSHI) This part replaces 91002-KZR-603.

91002-KZR-602

$18.72

14

BEARING, RADIAL BALL (6204) (NTN)

91003-KZR-601

$8.72

14

BEARING, RADIAL BALL (6204) (FUJIKOSHI)

91003-KZR-602

$10.79

15

BEARING, RADIAL BALL (6301) (NTN)

91005-KZR-601

$6.51

15

BEARING, RADIAL BALL (6301) (FUJIKOSHI)

91005-KZR-602

$6.49

16

BRG (6004)

91016-KBB-901

$12.93

17

OIL, SEAL (26X45X6)

91202-K97-T01

$2.51

18

OIL SEAL (20X32X6) (ARAI)

91203-K35-J01

$2.75

19

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

20

O-RING (14.8X2.4)

91303-K27-V01

$1.49

21

CLIP, TUBE (C12)

95002-80000

$1.49

22

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
