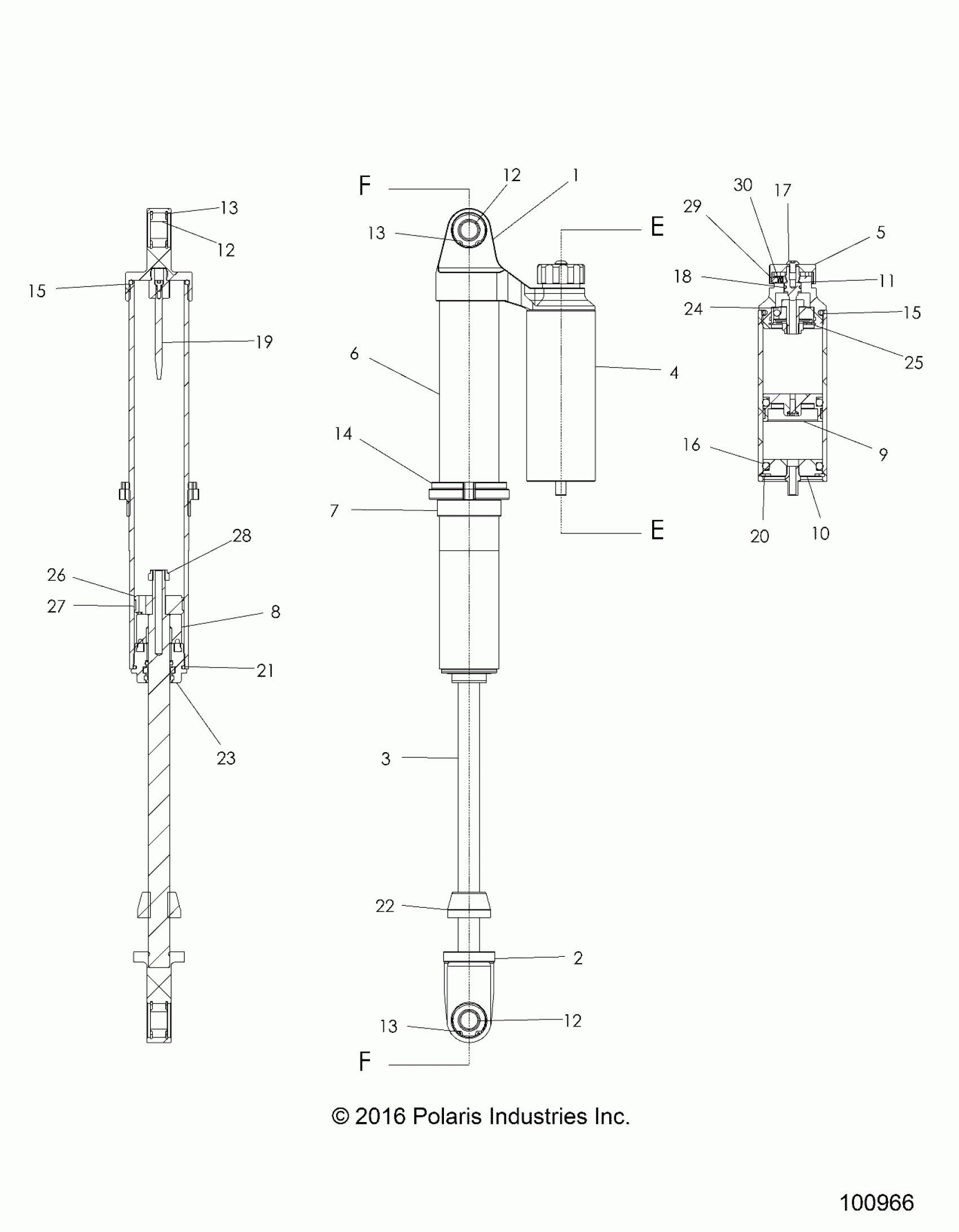

Polaris ACE 900 EPS XC (R11) - A17DCE87AU SUSPENSION, FRONT SHOCK - A17DCE87AU (100966) Diagram

#

Description
Price

-

SHOCK-FRONT

7044677

$744.99

1

SNAP RING

1800827

Unavailable

2

SHAFT LOOP

1800828

Unavailable

3

SHAFT, NEEDLE

1800829

Unavailable

4

NUT, CRIMP

1800830

Unavailable

5

CLICKER, KNOB

1800418

$63.24

6

BODY, FRONT

1800831

Unavailable

7

RETAINER, SPRING, NUT

1800046

$36.41

8

SPACER SHAFT

1800832

Unavailable

9

PISTONW/BLEED

1800739

$44.99

10

ASM, END CAP

1800755

$49.99

11

STUD, CLICKER

1800352

$39.99

12

BEARING

1800616

$76.17

12

BEARING

1800616

$76.17

12

BEARING

1800616

$76.17

13

SNAP, RING

1800041

$8.08

13

SNAP, RING

1800041

$8.08

13

SNAP, RING

1800041

$8.08

14

JAM NUT

1800465

$66.65

15

O-RING BODY LOOP

1800030

$1.37

15

O-RING BODY LOOP

1800030

$1.37

16

O-RING

1800184

$5.65

17

SCREW, HEAD

1800357

$2.19

18

O-RING

1800501

$7.27

19

NEEDLE ASM

1800770

$32.37

20

SNAP, RING

1800159

$5.56

21

O-RING

1800027

$1.37

22

JOUNCE BUMPER

1800462

$36.41

23

ASM SEAL HEAD W\BUMP

1800833

$134.99

24

ASM CLICKER PISTON

1800834

Unavailable

25

SNAP RING

1800359

$3.86

26

PISTON,CONV .052BLD 100126-052

1800886

Unavailable

27

BAND, WEAR

1800297

$39.99

28

CRIMP NUT

1800031

$2.74

29

BALL DETENT

1800127

$6.46

30

SPRING-COMP .025X.3, 40.5#

1800128

$11.32
