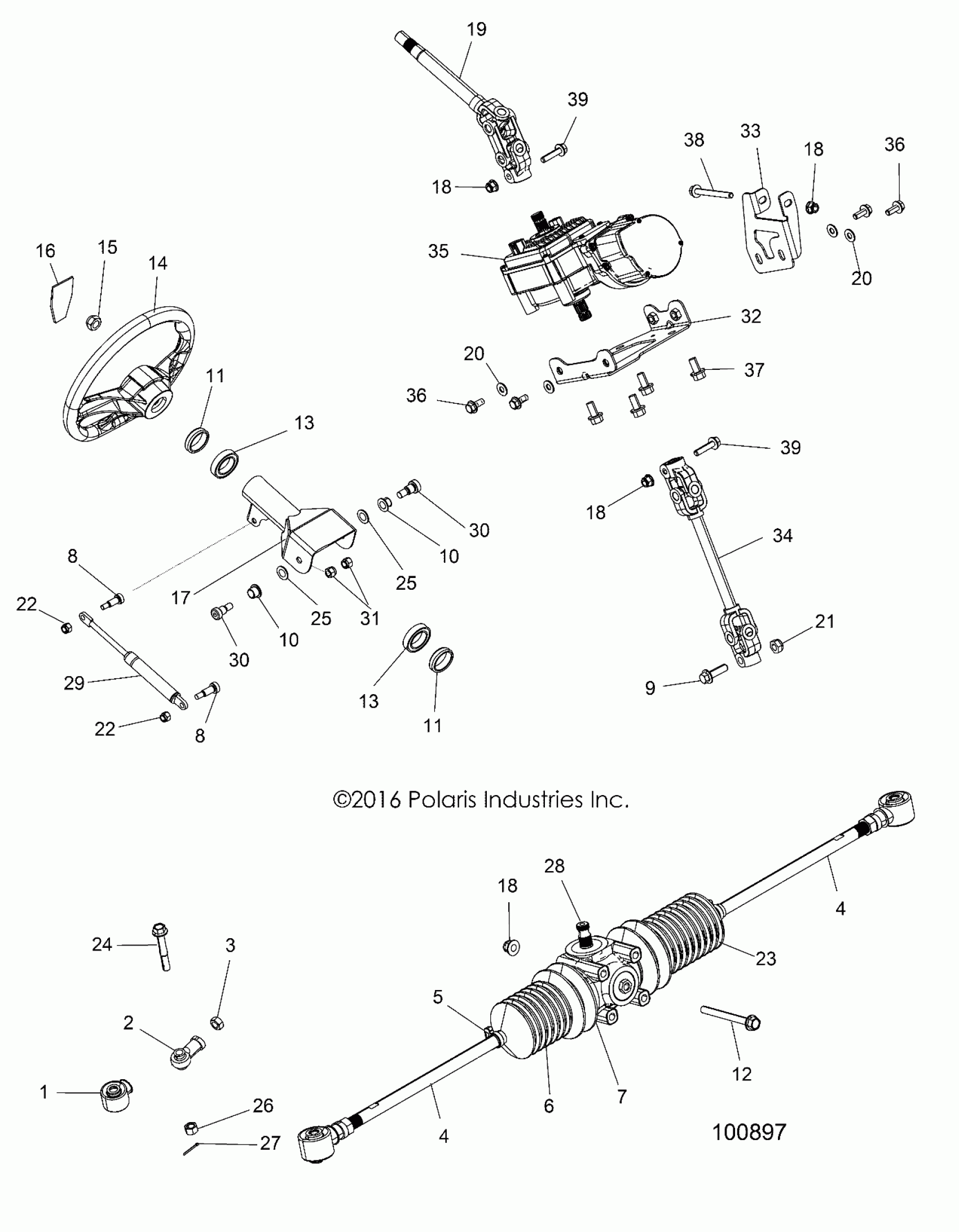

Polaris ACE 900 EPS XC (R11) - A17DCE87AU STEERING, STEERING ASM. - A17DCE87AU (100897) Diagram

#

Description
Price

1

BOOT, SEAL, ROD END

----

Unavailable

2

ROD END

7061189

$72.84

3

NUT, JAM, LH

----

Unavailable

4

TIE ROD, INNER

----

Unavailable

4

TIE ROD, INNER

----

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.38

6

BOOT, STEERING RACK

5412012

$66.65

7

CLAMP, BOOT, LARGE

7080979

$5.56

8

BOLT, SHOULDER

7518786

$2.38

8

BOLT, SHOULDER

7518786

$2.38

9

SCREW

7518644

$4.76

10

BUSHING, TILT STEERING

5439154

$3.17

10

BUSHING, TILT STEERING

5439154

$3.17

11

BUSHING-STEERING

7556675

$15.19

11

BUSHING-STEERING

7556675

$15.19

12

SCREW

7519217

$1.59

13

BEARING-STEERING

3514686

$9.52

13

BEARING-STEERING

3514686

$9.52

13

BEARING-STEERING

3514686

$9.52

14

WHEEL, STEERING

1824014

$179.99

15

NUT

7547506

$4.99

16

CAP-STEERING WHEEL,BLK

5450255-070

$20.22

17

ASM-PIVOT TUBE,M.BLK [INCL. 13]

1022896-458

$58.08

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

SHAFT, STEERING, EPS, UPPER

1824286

$188.79

20

WASHER-.327X.875X.090,FL-Y

7555960

$3.97

20

WASHER-.327X.875X.090,FL-Y

7555960

$3.97

21

NUT, NYLOK

7547385

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

23

BOOT, STEERING RACK

5412012

$66.65

24

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519854

$15.87

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.19

28

ASM-GEARBOX,STEERING,17T [INCL. 2-7,23]

1824539

Unavailable

29

ASM-SHOCK,TILT STEERING,SHORT

7044699

$99.99

30

SCREW

7519355

$10.32

30

SCREW

7519355

$10.32

31

NUT, NYLOK

7547442

$3.97

32

BRACKET, BASE, EPS

1020912-329

$119.99

33

BRACKET, EPS, LH

5260034-329

$48.40

34

SHAFT-STEERING,EPS,LOWER,17T

1824549

$157.13

35

ASM-POWER STEERING

2413701

$2,199.99

35

ASM-POWER STEERING

2413701

$2,199.99

36

BOLT

7518450

$1.59

37

BOLT

7518558

$3.97

38

SCREW

7518955

$3.17

39

SCREW

7519052

$1.59

39

SCREW

7519052

$1.59
