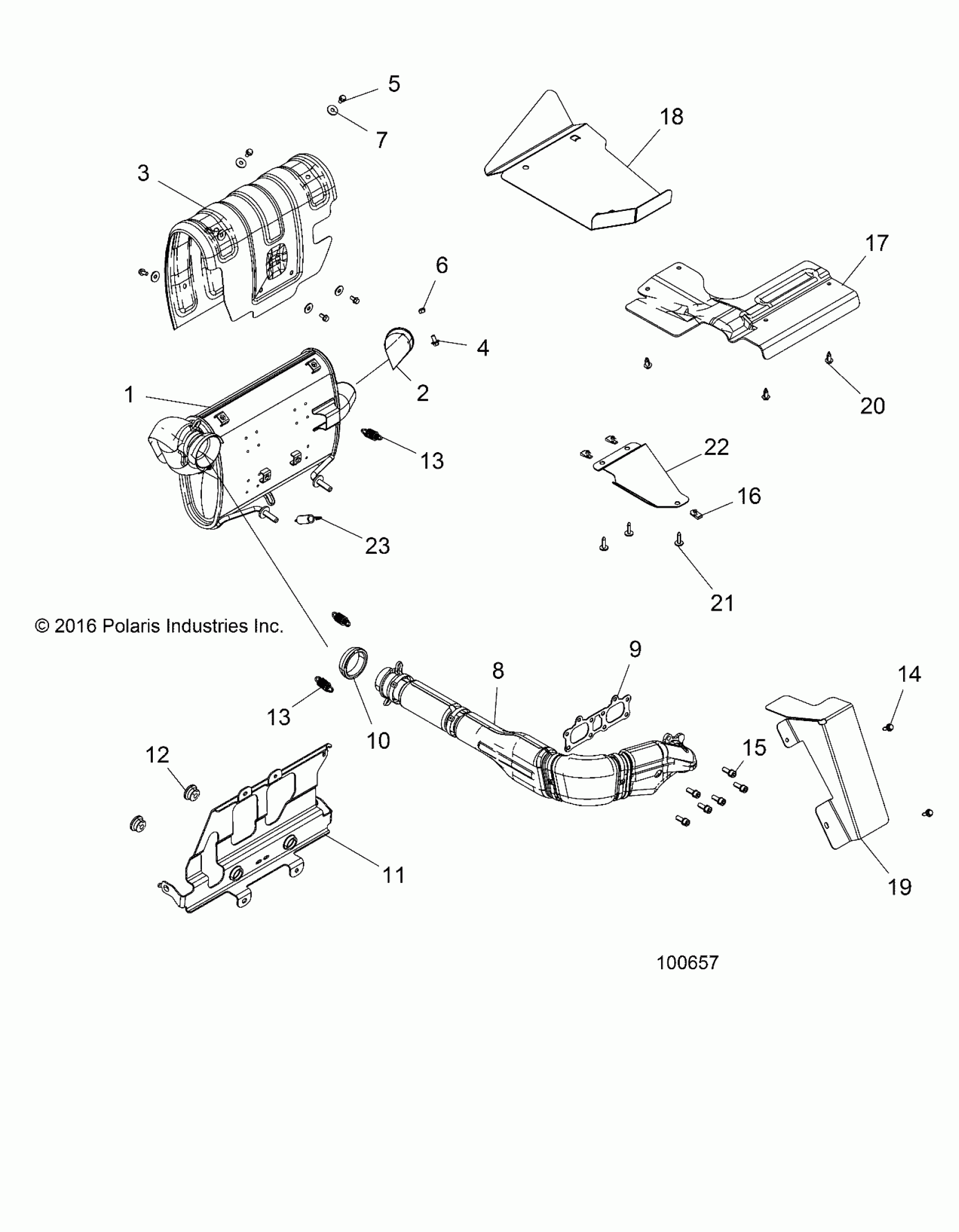

Polaris ACE 900 EPS XC (R11) - A17DCE87AU ENGINE, EXHAUST SYSTEM - A17DCE87AU (100657) Diagram

#

Description
Price

1

ASM-SILENCER [INCL. 2-7]

1262365

$307.99

2

WELD-SPARK ARRESTOR,AVA875

1262123

$47.99

3

SHIELD-SILENCER

5258938

$63.99

4

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

5

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

6

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

7

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

8

ASM-EXHAUST PIPE

1262920

$360.79

9

GASKET-EXHAUST SEAL

3610184

$48.56

10

SEAL-EXHAUST

3610204

$35.99

11

MOUNT-EXHAUST,LOWER

5262809-458

$87.99

12

ISOLATOR-EXHAUST,HANGER

5415785

$2.79

13

SPRING-EXHAUST

7041789

$7.99

13

SPRING-EXHAUST

7041789

$7.99

14

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

15

SCR-M8X1.25X22,HX/SO

7518984

$7.99

16

CLIP-"U",M6.0X1.0

7547366

$5.99

17

SHIELD, UNDER BOX

5814321

$55.99

18

SHIELD-BOX,REAR

5263717

$51.99

19

SHIELD-BOX,FRONT

5263718

$27.99

20

RIVET, TUFLOK

7661855

$1.49

21

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

22

SHIELD-ACCESS PANEL,ACE

5264043

$19.99

23

SPRING-EXHAUST

7042029

$4.84
