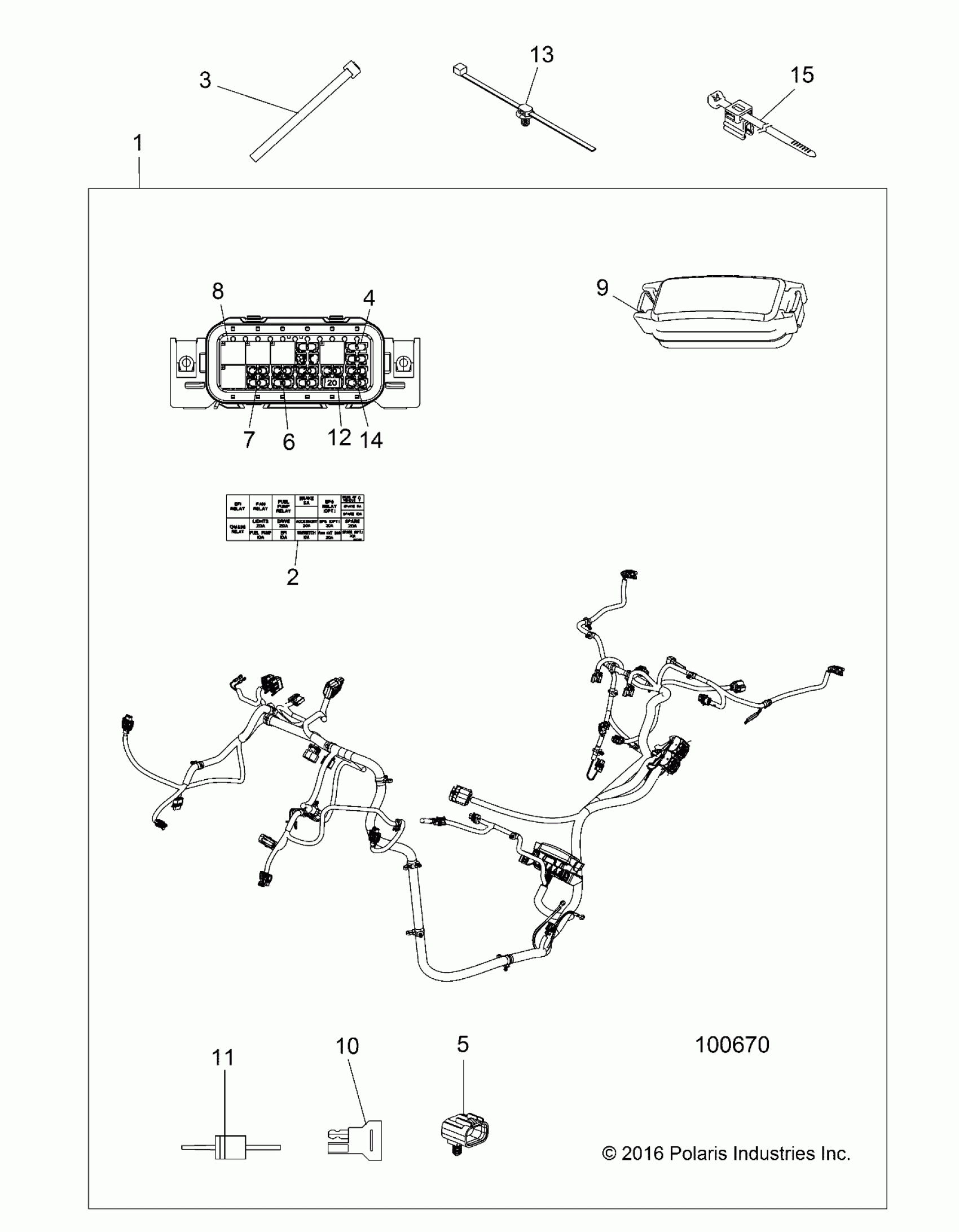

Polaris ACE 900 EPS XC (R11) - A17DCE87AU ELECTRICAL, WIRE HARNESS - A17DCE87AU (100670) Diagram

Description

Price

HARNESS-CHASSIS,ACE 900 ETC PS

2413565

Unavailable

LABEL-FUSE BOX,LIGHTS-START

7186509

Unavailable

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

FUSE-5A,MINI BLADE

4011652

$11.32

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

FUSE-PARK,20 AMP

2434017

$8.08

FUSE-IGNITION,10 AMP

2434016

$5.65

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

COVER, FUSEBOX

4015011

$60.70

SEAL, FUSE CENTER

5415598

$8.73

DIODE, 6 AMP

2410000

$40.46

DIODE, 6 AMP W/TERMINALS

2411035

$56.65

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

FUSE-MAIN,30 AMP

2434015

$8.87

CLIP-EDGE,SIDE W/STRAP

7081876

$7.94
