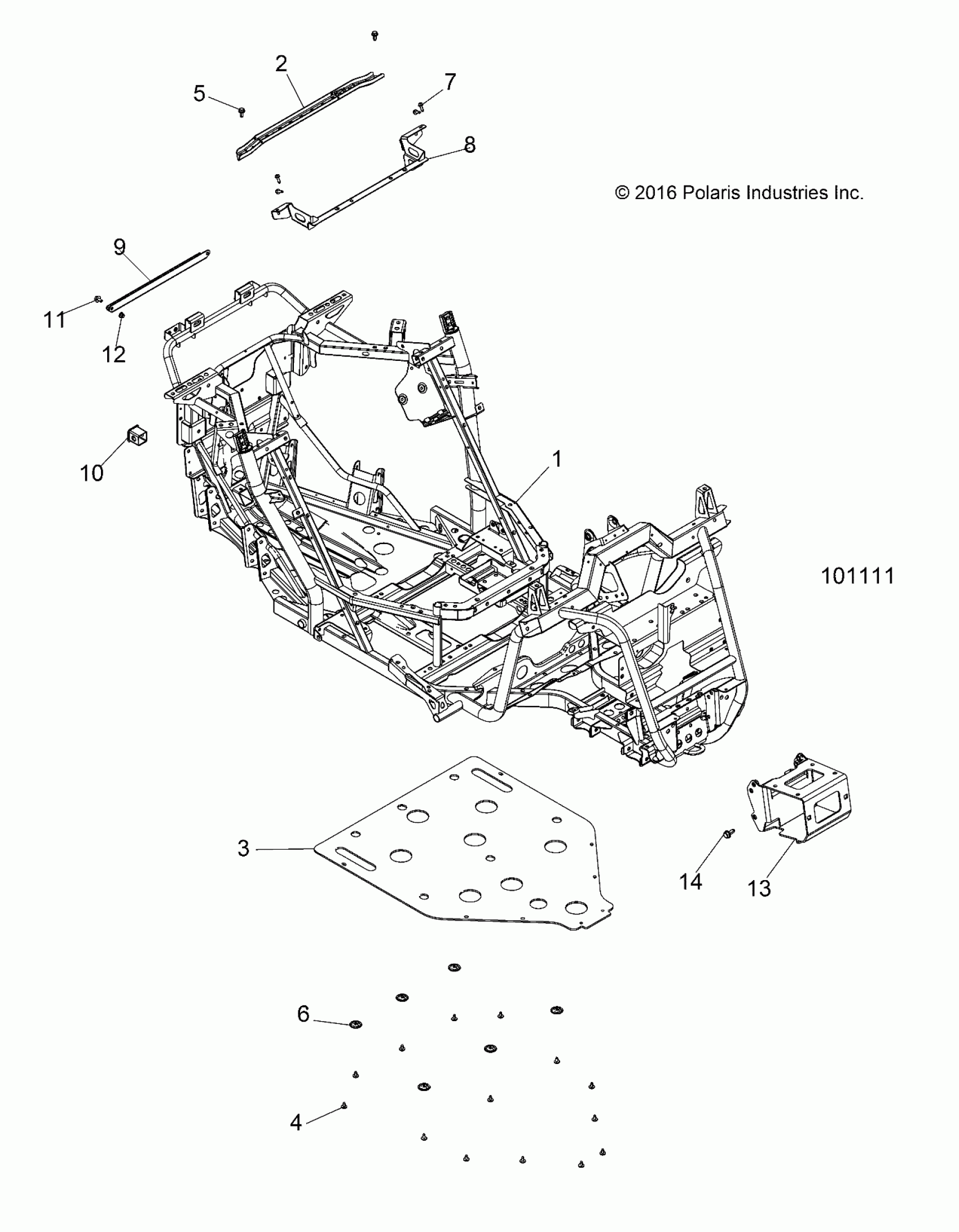

Polaris ACE 900 EPS XC (R11) - A17DCE87AU CHASSIS, MAIN FRAME AND SKID PLATE - A17DCE87AU (101111) Diagram

#

Description
Price

1

WELD-MAIN FRAME,M.BLK

1022417-458

Unavailable

2

BRKT-REAR,BRACE,E-COAT

5263745-329

$48.40

3

PLATE, SKID

5813900

$107.14

4

SCREW

7518936

$3.97

5

BOLT

7518555

$2.38

6

WASHER-SKID PLATE

7556065

$4.76

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

8

WELD-SUPPORT,AIRBOX,E-COAT

1021540-329

$93.32

9

BRKT-REAR,ACE,ECOAT

5263283-329

Unavailable

10

PLUG-HITCH,BLK

5453632-070

$8.89

11

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.97

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

13

ASM-WINCH MT,ABW

1022610

$169.99

14

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.97
