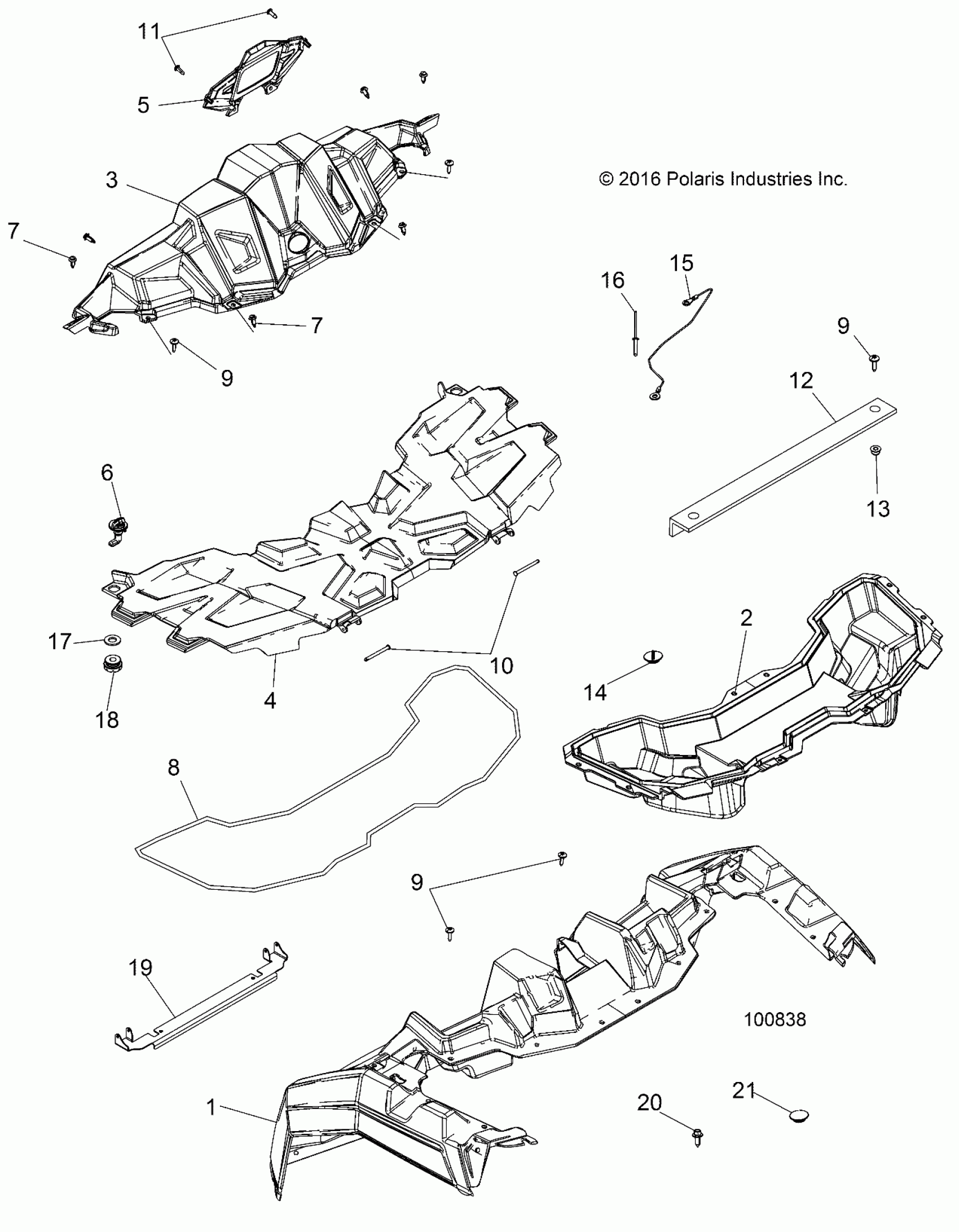

Polaris ACE 900 EPS XC (R11) - A17DCE87AU BODY, HOOD AND FRONT BODY WORK - A17DCE87AU (100838) Diagram

#

Description
Price

1

ASM-CAB,FR,MOD,PNTD,MT.T.SLVR [INCL. WARNING DECAL]

2636504-581

$1,641.19

2

BIN-STORAGE,FRONT,BLK [TO 2/2/2017]

5453236-070

$95.99

2

BIN-STORAGE,FRONT,BLK [FROM 2/2/2017]

5454119-070

Unavailable

3

PANEL, CAB, UPPER, BLACK

5450064-070

$135.99

4

COVER, BOX, FRONT, BLACK

5450073-070

$139.99

5

PANEL-DASH,KYSTN,ACE

5451949

$35.99

6

LATCH-1/4 TURN

5451143

$13.32

7

Rivet

7661855

$1.49

7

Rivet

7661855

$1.49

8

SEAL, BOX, FRONT

5522023

$59.99

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

10

Pin, Hinge, Front

5134576

$6.39

11

SCREW

7519045

$3.19

12

BRACE-ANGLE,625MM,ECOAT

5263628-329

$43.99

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

PLUG-COMPARTMENT

5412981

Unavailable

15

CABLE-LID,FRONT,HOOK

7082262

$39.99

16

RIVET

7621334

$1.49

17

WASHER-.510X.840X.031 Y

7555919

$4.99

18

GROMMET-LATCH

5413428

$3.19

19

BRKT-HINGE,RACK,FRONT,E-COAT

5263090-329

$47.99

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

21

PLUG-HOLE,1/2"

7081057

$3.99
