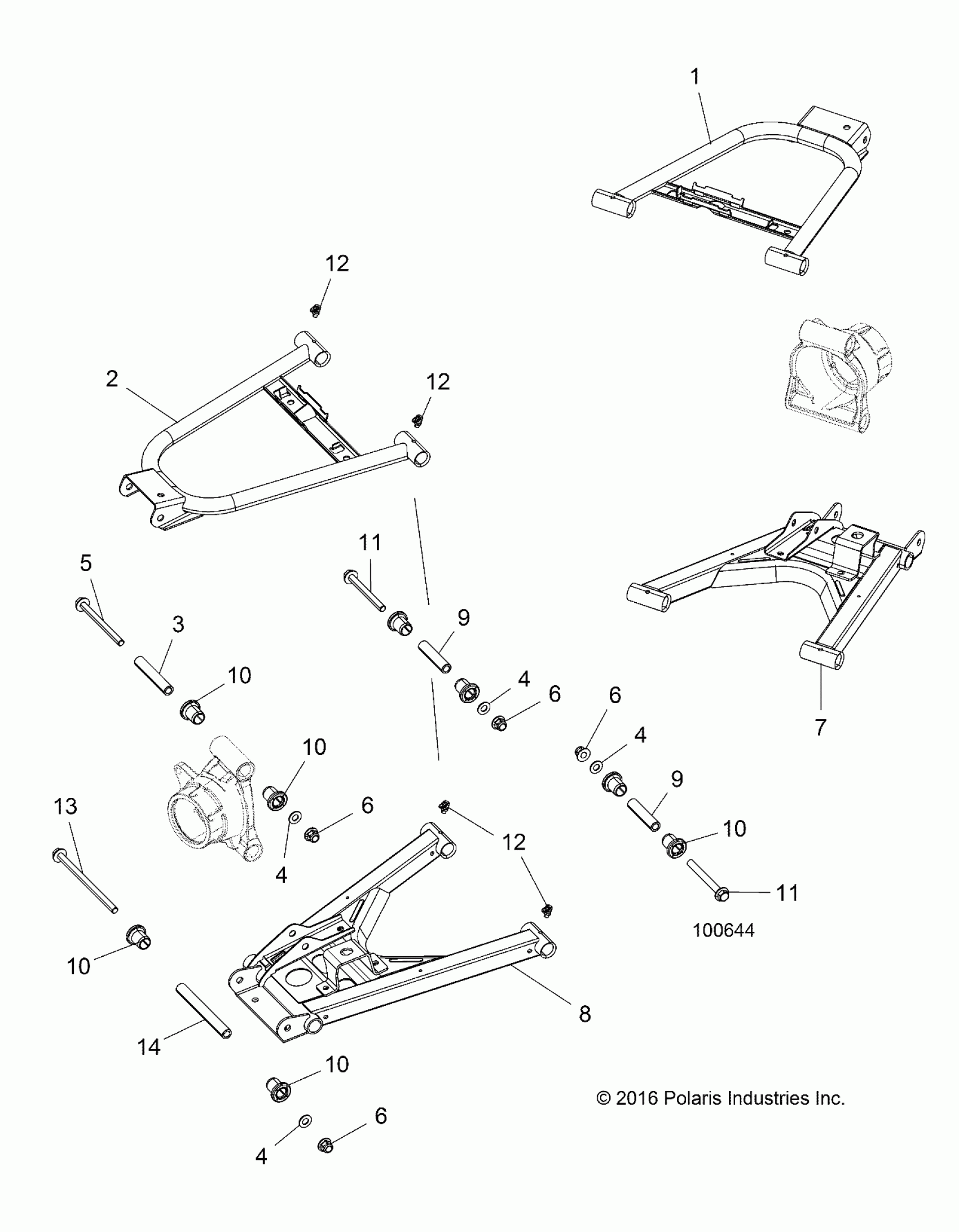

Polaris ACE 900 EPS XC (R05) - A19DCE87AK SUSPENSION, REAR CONTROL ARMS - A19DCE87AK (100644) Diagram

#

Description
Price

1

WELD-CONTROL ARM,RR,UPR,LH,RED

1022819-293

Unavailable

2

WELD-CONTROL ARM,RR,UPR,RH,RED

1022820-293

Unavailable

3

SHAFT-PIVOT,89.71MM,15.88OD

5138794

$5.65

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

5

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.49

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

WELD-CNTRL ARM,REAR,LWR,LH,RED

1018460-293

Unavailable

8

WELD-CNTRL ARM,REAR,LWR,RH,RED

1018461-293

Unavailable

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

12

FITTING, ZERK

7080510

$5.56

12

FITTING, ZERK

7080510

$5.56

12

FITTING, ZERK

7080510

$5.56

13

SCREW

7519042

$9.52

14

SHAFT-PIVOT,139.1MM,15.88OD

5138796

$12.13
