ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A19DCE87AK (101113)

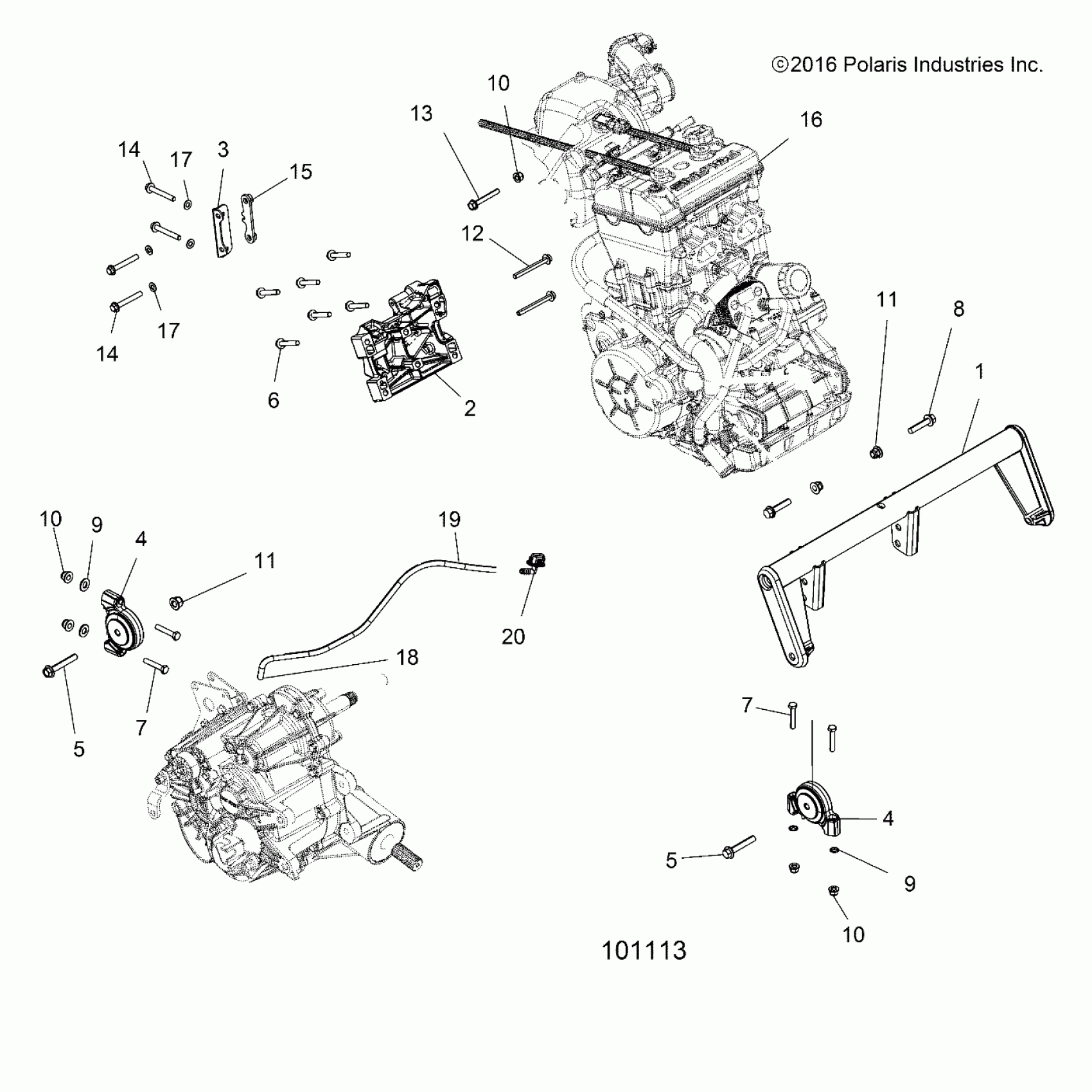

Polaris ACE 900 EPS XC (R05) - A19DCE87AK ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A19DCE87AK (101113) Diagram
#
Description
Price
1
MOUNT, ENGINE, BLACK
1021392-329
$139.99
2
BRKT-TRANSJOINT,MACH
5137795
Unavailable
3
BRACKET, COUPLER, TRANSMISSION
5255238
$27.99
4
MOUNT-ISOLATOR,DRIVELINE
1332955
$71.99
4
MOUNT-ISOLATOR,DRIVELINE
1332955
$71.99
5
SCR-HXFL-M10X1.5X60 8.8 ZY3
7518826
$4.79
5
SCR-HXFL-M10X1.5X60 8.8 ZY3
7518826
$4.79
6
BOLT-M10X1.5X60MM8.8HEXDRILOCK
7520467
$4.79
7
SCREW
7519097
$1.59
7
SCREW
7519097
$1.59
8
SCREW
7519332
$5.59
9
Nut, Pal
7547030
$4.79
9
Nut, Pal
7547030
$4.79
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
12
SCREW
7519043
$9.59
13
SCREW
7519298
$3.99
14
SCREW
7518595
$5.59
14
SCREW
7518595
$5.59
15
WELD-NUT, PLATE
5259964
$23.99
16
K-LONG BLOCK 875 ACE
2207362
Unavailable
17
WASHER
7556153
$1.99
17
WASHER
7556153
$1.99
18
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
19
FUEL LINE
8450040-600
Unavailable
20
FITTING-VENT LINE,90
5453464
$5.59
