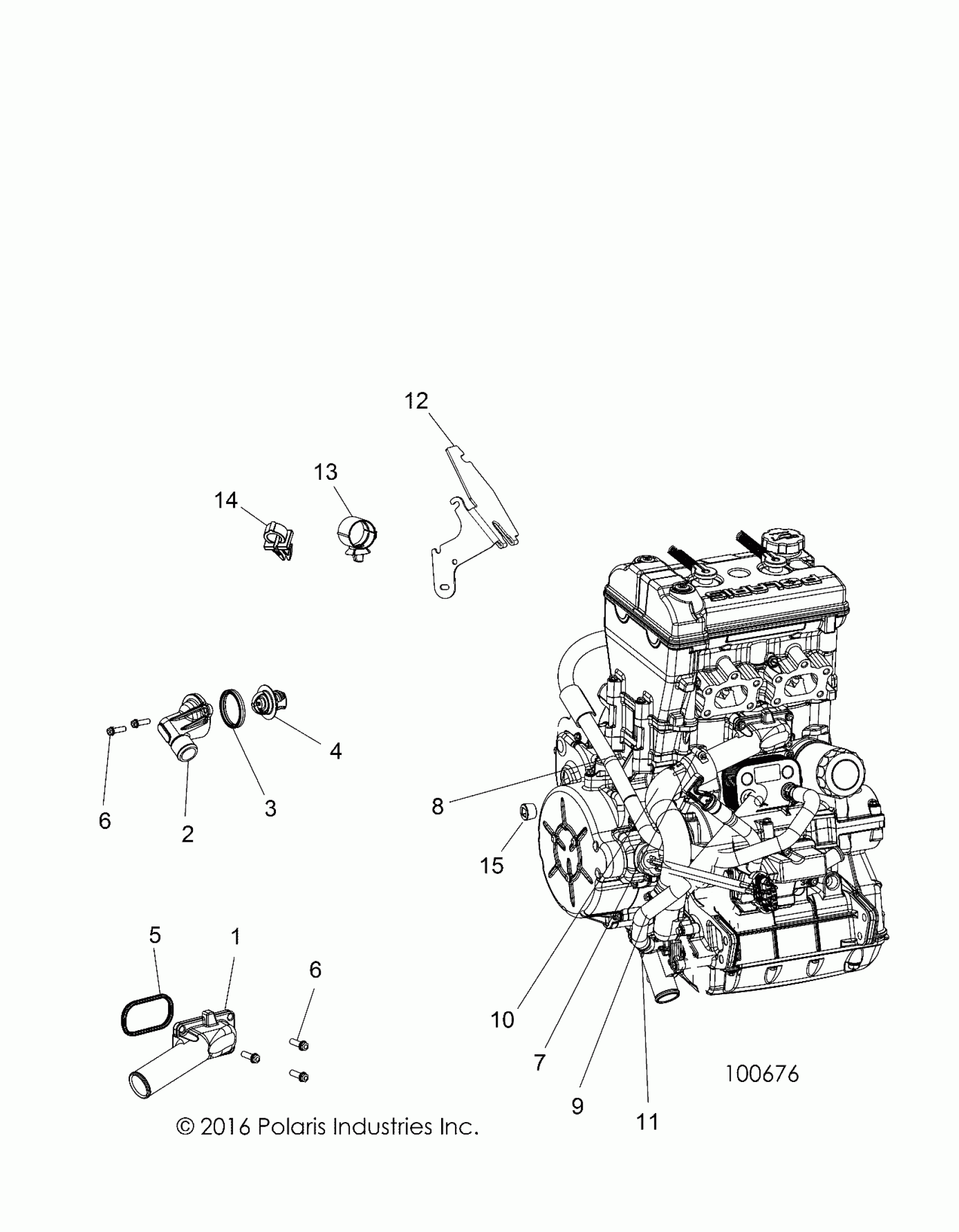

Polaris ACE 900 EPS XC (R05) - A19DCE87AK ENGINE, COOLING, THERMOSTAT and BYPASS - A19DCE87AK (100676) Diagram

Description

Price

COVER-WATER INLET,CAST

5632557

$14.39

COVER-THERMOSTAT

5632606

$39.99

SEAL-THERMOSTAT

5413948

$7.99

THERMOSTAT-44M FLANGE,180F

7052496

$39.99

GASKET-WATER,INLET

5813736

$24.27

SCREW

7518576

$3.19

SCREW

7518576

$3.19

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

HOSE-BYPASS LINE

5416630

$43.99

HOSE-OIL COOLER OUT

5416752

$27.99

HOSE-WATERPUMP,OUT

5416305

$59.99

CLAMP, HOSE, SPRING

7081026

$7.99

BRACKET, BYPASS SHIFTER

5259742

$31.99

CLIP-HOSE

5415088

$4.79

CLIP, WIRE

7081477

$3.19

PLUG

7051520

$8.79
